Tarras Wall Feature Lighting
Application

Suitable for showrooms and office areas since the environment is lit continuously throughout.

Description

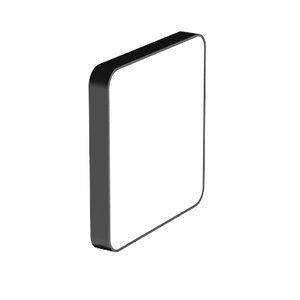

Square-shaped wall mounted LED lighting curved edges.


Features and benefits:

  • Slim and sleek aesthetics.
  • Delivers a soft, natural and uniform light.
  • Soft contours offer a flexible lighting solution for a minimalistic interior space.
  • Four securing holes securely mount suspension wires to back of luminaire. Frame uses secure snap lock system to detach from back plate.
  • A range of size and colour variations are possible.
  • Remote driver is supplied.

Also available as suspended and surface mounted (specified separately).

General information

Finish

Polyester powder coat

Material

Aluminium profile with LEDs

Shape

Square

Size

240 x 240 x 70 mm

350 x 350 x 70 mm

600 x 600 x 70 mm

Uniclass 2015

Pr_70_70_48_85 Surface luminairesPrimary

CAWS

V90/45 Luminaires

V90/510 Luminaires

Specification data - Surface luminaires Enhanced data

Standard

Directive 2014/30/EC - EMC.

Directive 2006/95/EC - Low Voltage.

Regulation 1907/2006 - REACH.

Directive 2019/15/EC - Labelling.

Directive 2015/863/EC - RoHS.

Directive 2012/19/EC - WEEE.

Directive 2014/35/EU - making available on the market of electrical equipment.

Directive 2011/65/EU - hazardous substances.

Third-party certification

Photometrics.

Luminaire description

Wall mounted, square, soft edges.

Classification

-

Electric shock

To BS EN 60598-1, Class I.

Ingress protection (minimum)

To BS EN 60529, IP20.

Suitability for direct mounting on normally flammable surfaces

Not suitable for direct mounting on normally flammable surfaces.

Circumstances of use

Normal.

Rated maximum ambient temperature

25°C.

Supply circuit conductor connections

Loop wiring.

Nominal voltage

220–240 V.

Luminaire power factor

0.95.

LED luminaires

-

Performance standards

EN 62031, EN 60598-1, EN 60598-2-1, EN 61547, EN 61000-3-2, EN 61000-3-3, EN 55015, EN 62471.

Safety standard

SELV.

Initial LED luminaire efficacy (minimum)

125 lm/W.

Wattage

9.5W/ 950 lm up to 35.6 W/ 3810 lm.

Colour temperature

3000K.

4000K.

Colour rendering index (Ra)

80.

Beam angle

180°.

Useful life

50 000 hours (L80B20).

Dimming protocol

DALI Dimming.

Non-dimming.

Standard.

Integral sensors

Philips EasyAir.

PIR/Daylight.

Helvar Active Plus.

Micro Standalone Sensor.

Accessories

Consult manufacturer and insert requirements.

Control gear position

Integral within luminaire.

Version standard

Tridonic in sizes 350 and 600.

Duration of emergency mode (minimum)

Three hours.

No emergency.

0 hours.

Optics

Opal diffuser.

Microprismatic diffuser.

Colour

Black.

Grey.

White.

RAL.

Insert requirements.

Transverse

Meeting the Chartered Institution of Building Services Engineers (CIBSE), Society of Light and Lighting (SLL) and BCO Guide to Lighting Standards.

<19.2.

Longitudinal

<19.2.

Efficiency

96%.

Frequency

50–60 Hz.

Emergency output

210 lm.

Output direction

Direct.

Product Reference

Tarras Wall

Environmental information

Recyclability

Frame and packaging.

-

Recycled content

Aluminium and packaging.

-
