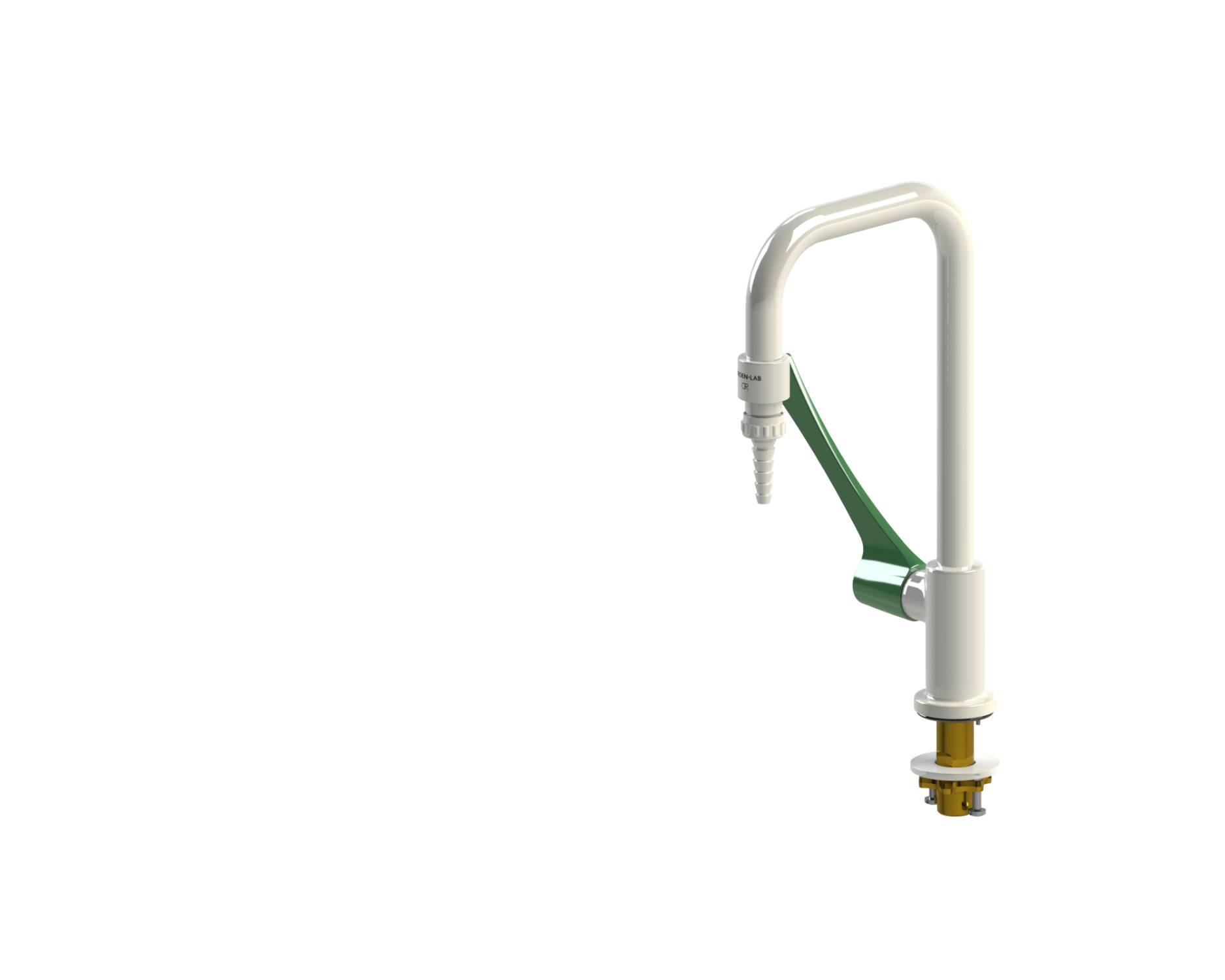

Table Mounted One-Way Laboratory Tap Left
Verified by manufacturer 4 months ago
QA Certificate
Certificate type
Certificate of Compliance
Certificate type
Table Mounted one-way laboratory tap with handle on the left side.
Application
Laboratories.
Description
Table mounted laboratory water tap with handle on the left side. Wrist lever and ceramic head work open/ close 90°. 3-Zone colour, according to EN 13792. Removable nozzle and DC-Interrupter.
General information
Color | Green White |
Finish | Powder-coated |
Material | Brass Rubber Ceramic |
Shape | Other |
Length | 150 mm |
Height | 300 mm |
Warranty description | Two year |
Uniclass | |
CAWS | N13/331 Sinks N13/25 Sinks N10/130 Laboratory furniture |
Specification data - Sink taps
Standards | EN 13792. |
Form | High neck pillar taps. |
Pressure | Maximum working pressure: 10 bar. |
Temperature | 5-90°C. |
Mounting | ½" nut with locking pins, O-ring and washer (See 94G0232). |
Connections | Inlet / outlet connection: UniFlex/ DIN 12 898 hose nozzle. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | Denmark |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Third party certifications
QA Certificate
ISO9001
Certificate of Compliance
CSA US + C - Laboratory Faucets
Case studies
Colour Coding System
