Table Mounted Laboratory Gas Tap with Quick Release Couplings

Name: Table Mounted Laboratory Gas Tap with Quick Release Couplings
Brand: BROEN-LAB
SKU: sXvr4QtdpxYTU1m6sQYV9W

Verified by manufacturer 9 days ago

BROEN-LAB

Product certifications:

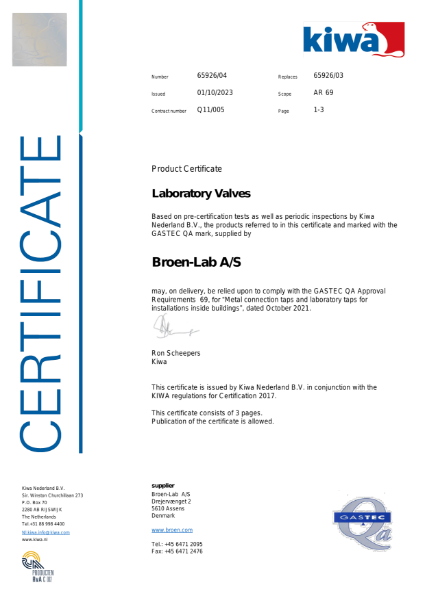

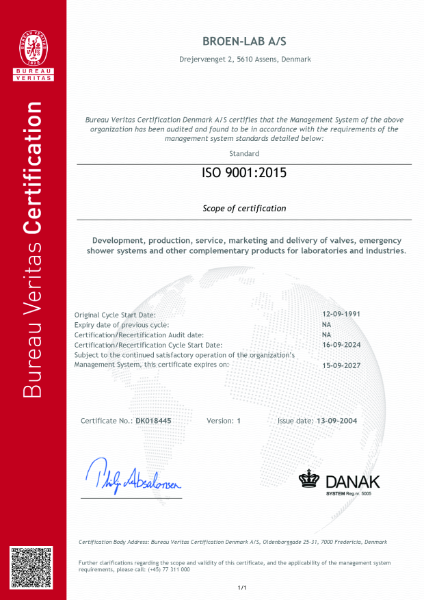

QA Certificate
Certificate type

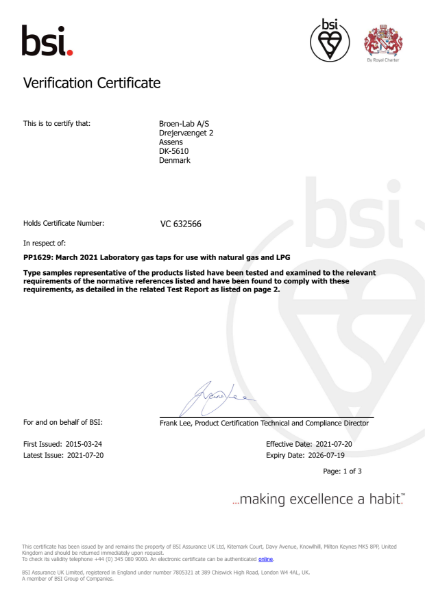

BSI Kitemark
Certificate type

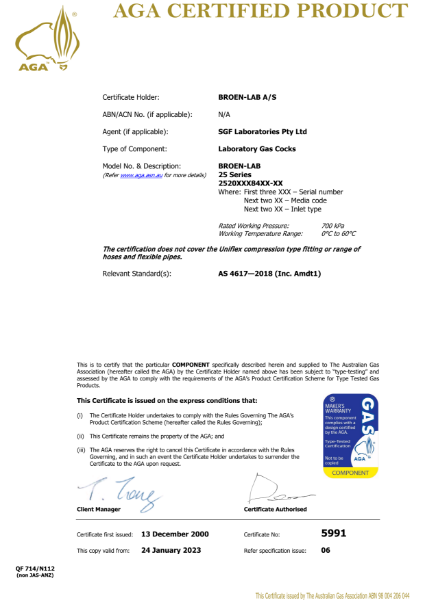

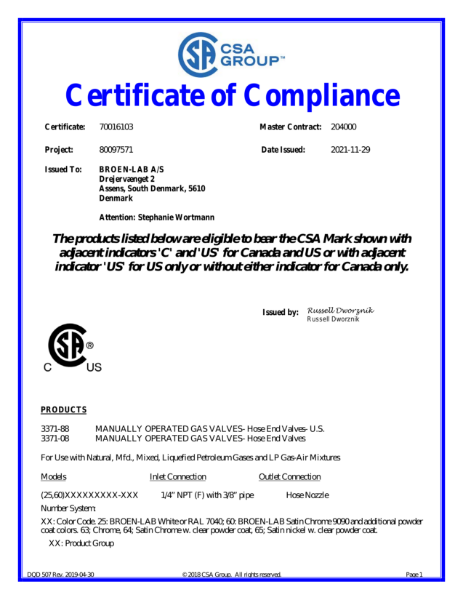

Certificate of Compliance
Certificate type
Certificate of Compliance
Certificate type
QA Certificate
Certificate type
QA Certificate
Certificate type

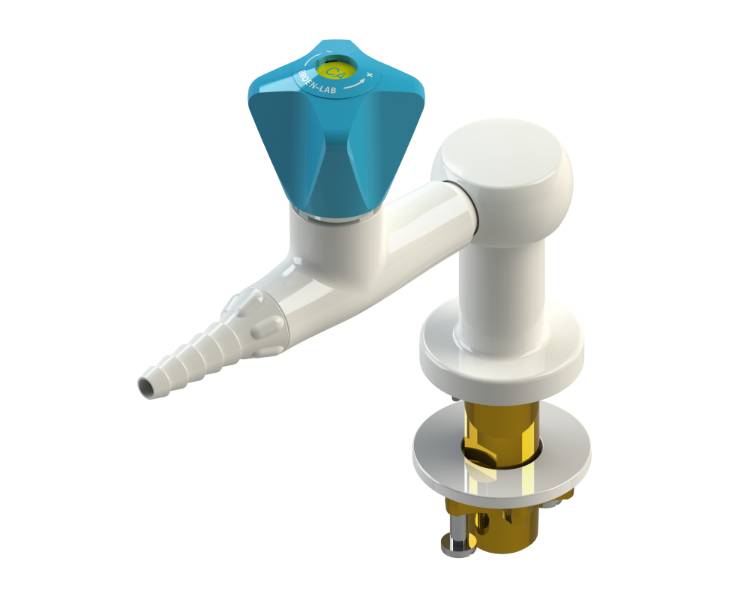

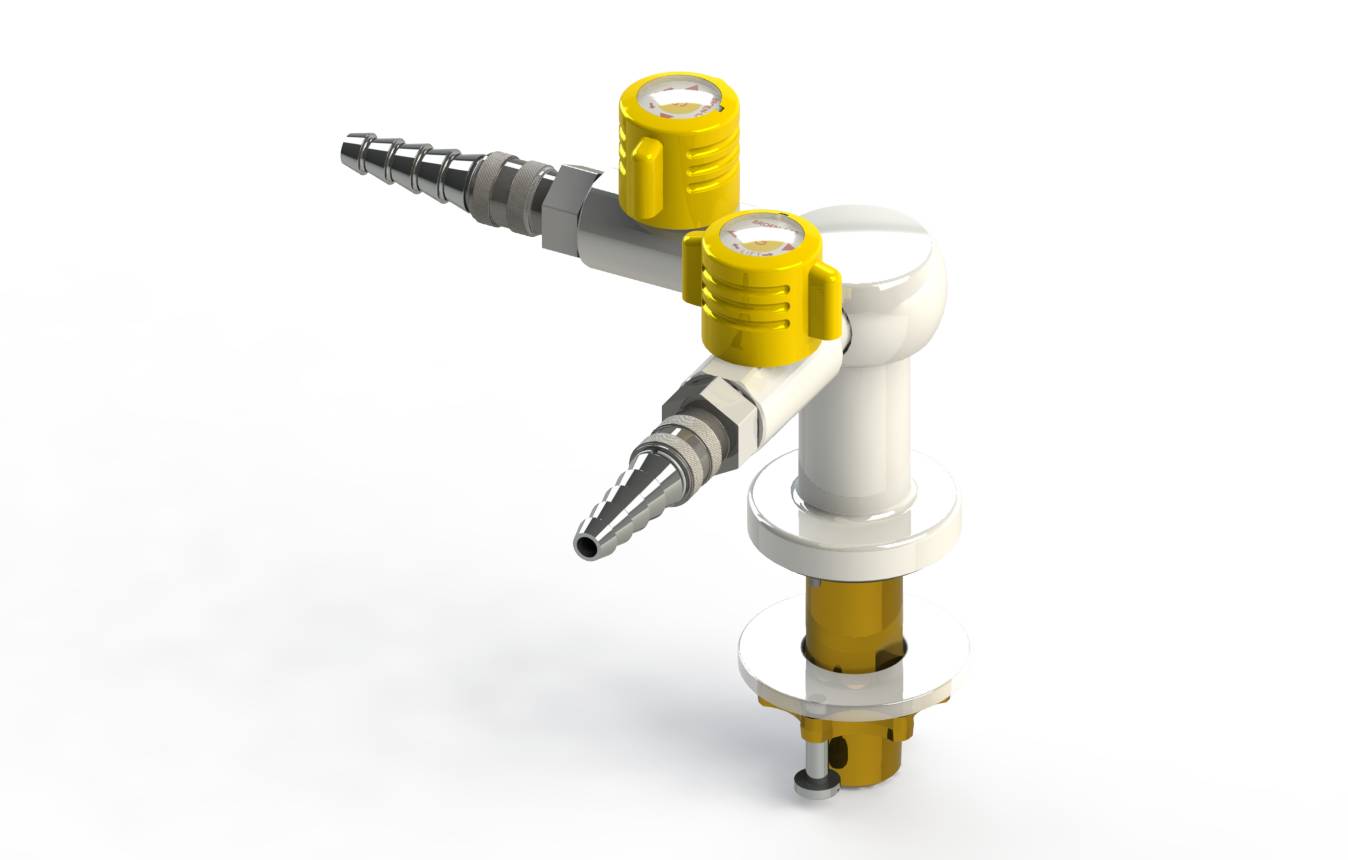

Table-mounted laboratory one-way gas tap, two way 90° gas tap, two way 180° gas tap and 4-way gas tap with lift-turn safety handle and quick release metal nozzle.

Jump to:

+45 63766376 Website

Application

For use with burning gases: see manufacturer's literature for media codes.

Description

Table-mounted laboratory gas tap.

Features and benefits:

Table/ bench mounted.
Lift-turn safety handle and quick release metal nozzle for high flexibility. Check valve is built in to the quick release coupling.
Mounting kits with anti-rotational pins included.
Approved according to BSI.
Media indication according to EN 13792.
Part of a wide range of compatible gas taps, including fixed nozzles, flashback arrestors, multi-valve units, suspended or wall-mounted taps: consult manufacturer's literature for full details.

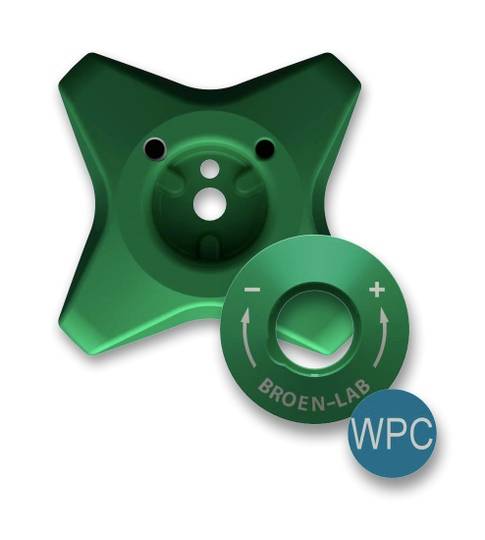

Disability-friendly and standard (non-pop-up) handles also available.
Materials: See manufacturer's literature for full details, including materials with media contact.

Installation:

Mounting kit must have two screws for safe and easy mounting.
For installation purpose use compression fitting 15212350 for outer diameter (OD) 15 mm CU pipe interface. Other sizes possible on request.

General information

Color	White Guidance for specification option: Body. Yellow Guidance for specification option: Handles. Manufacturer guidance See Colour coding for media indication colour (to BS EN 13792).
Finish	Powder-coated
Shape	Other
Length	123 mm
Height	60 mm
Warranty description	Two year

Uniclass	Pr_65_54_33_45 Laboratory gas tapsPrimary
CAWS	N10/130 Laboratory furniture

SKU Code	One way 252004482XX-14 Two way 90° 252004182XX-14 Two way 180° 252084582XX-14 Four way 252084382XX-14

Specification data - Laboratory gas taps

Classification data
Mounting	Table.
Number of outlets	Two.
Nozzles	Quick release.
Operation	Lift-turn handle.
Colour coding	Insert requirements to BS EN 13792 Guidance for specification option: See manufacturer's literature for details of media codes available.
Inlet connection	60 mm, ½" ISO 7/1-R, with internal UniFlex thread.
Accessories	- Manufacturer guidance Mounting kits with anti-rotational pins supplied as standard. Consult manufacturer's literature for accessories and insert requirements.

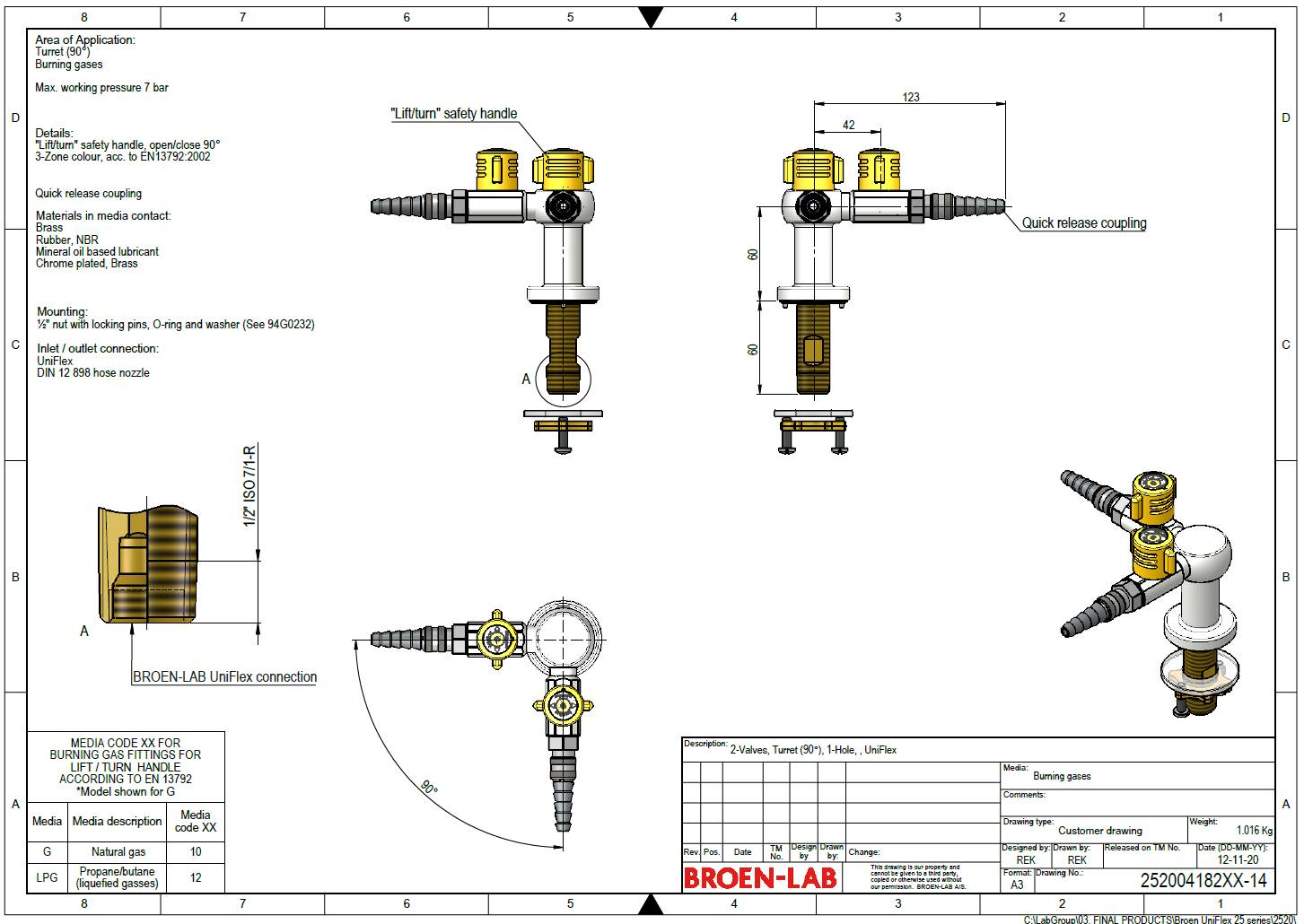

Product Reference	Table Mounted Laboratory Two-way 90° Gas Tap with Quick Release Couplings
