Table Mounted Laboratory Single Pillar Water Bib Tap

Name: Table Mounted Laboratory Single Pillar Water Bib Tap
Brand: BROEN-LAB
SKU: srK4g2fv6WfCRGiDBPbTkG

Verified by manufacturer 3 months ago

Third party certifications:

Table-mounted laboratory pillar water bib tap with metal handles and ceramic headwork and built-in ball valve for easy and safe maintenance.

Jump to:

Application

Laboratory water supply.

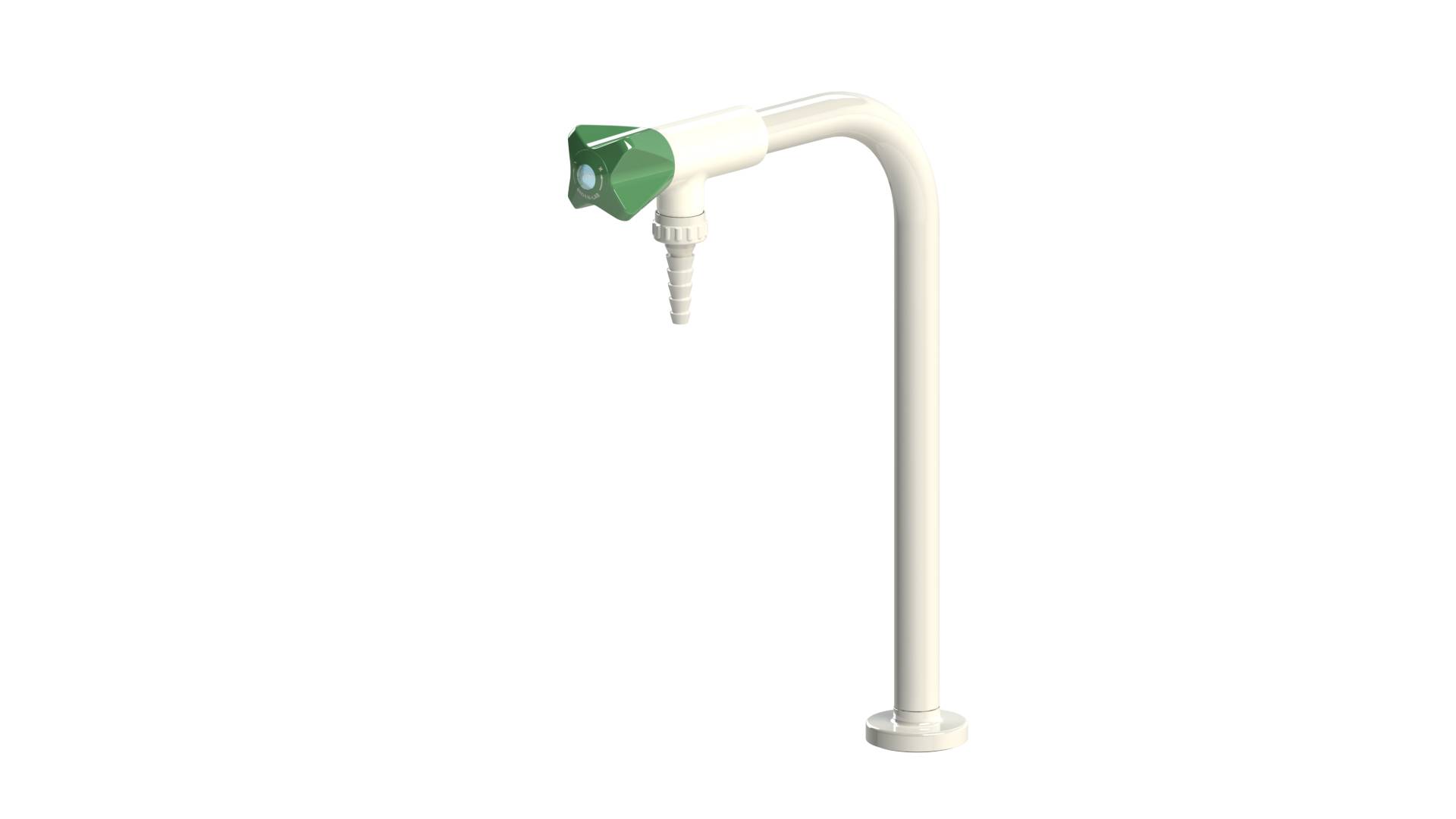

Table-mounted laboratory pillar water bib tap.

Features and benefits:

Metal handles and ceramic headwork and built-in ball valve for easy and safe maintenance.
Removable metal nozzle for high flexibility.
Mounting kits with anti-rotational pins included.

Installation:

Mounting kit must have two screws for safe and easy mounting.
For installation purpose use compression fitting 15212330 for outer diameter (OD) 15 mm CU pipe interface. Other sizes possible on request.

Color	White Guidance for specification option: Body. Green Guidance for specification option: Handle.
Finish	Powder-coated
Material	Metal Guidance for specification option: Brass; metal handle; ceramic headwork. Ceramic
Shape	Other
Length	150 mm 200 mm
Width	40 mm
Height	300 mm
Warranty description	Two year

Uniclass	Pr_40_20_87_96 Washbasin manual water supply setsPrimary
CAWS	N10/130 Laboratory furniture

Standards	To EN 13792
Approvals	Water Regulations Advisory Scheme (WRAS) approved.
Form	Pillar bib laboratory water tap.
Materials	-
Body	Brass; metal handle; ceramic headwork.
Finish and colour	Polyester powder coated; plastic
Water supply temperature (maximum)	90°C.
Integral accessories	None Aerator Flow restrictor Guidance for specification option: 5 L/minute. Fixed hose nozzle Integrated non-return valve Alternative hose inlet connection/ without a hose Guidance for specification option: Consult manufacturer and insert requirements. Other inlet options Guidance for specification option: Insert requirements (type, length). National approvals WPH (Water Potable Hot) WNH (Water Non-potable Hot) Manufacturer guidance Mounting kits with anti-rotational pins included.
