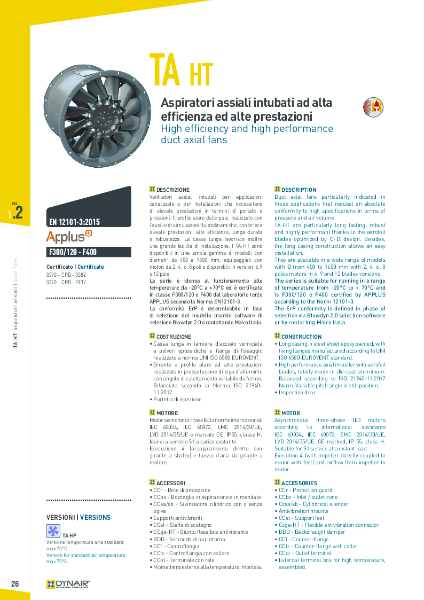

TA-HT Series High Performance, Increased Efficiency Duct Axial Fans – F300/120, F400
Verified by manufacturer 6 days ago
Axial smoke extract fan made of steel and aluminium for use in mechanical smoke extract systems.
Application
For use in ducted mechanical smoke extract systems, particularly applications that require an absolute conformity to high specifications in terms of pressure and air volume. Suitable for running in a range of temperature from -20°C to + 70°C.
Description
The TA-HT Series smoke extract fans consist of a long steel casing for easy installation and a high performance axial impeller with aerofoil blades made of aluminium. Designed for evacuation of smoke in the event of a fire, they ensure tenable conditions are maintained for escape and entry of emergency services.
The smoke fans are available in sizes from a diameter of 400 mm to 1600 mm (bigger sizes upon request) for performances ranking up to 210.000 m3/h and 1.500 Pa. Higher pressures can be reached with two fans installed in series.
Features and benefits:
- Impeller balanced according to ISO 21940-11.
- Fixing flanges manufactured according to UNI ISO 6580-EUROVENT standard.
- Asynchronous three-phase IE3 motors according to international standards IEC 60034, IEC 60072, EMC 2014/30/UE, LVD 2014/35/UE.
- CE marked.
- Fitted external terminal box for high temperature available.
- Suitable for S1 service at constant load.
- Features inspection door.
- Impeller with variable pitch angle in still position.
General information
Color | Grey |
Finish | Painted Guidance for specification option: Epoxy paint. |
Material | Steel Aluminium |
Shape | Circle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass |
Sustainability data
Material | Steel Aluminium |
