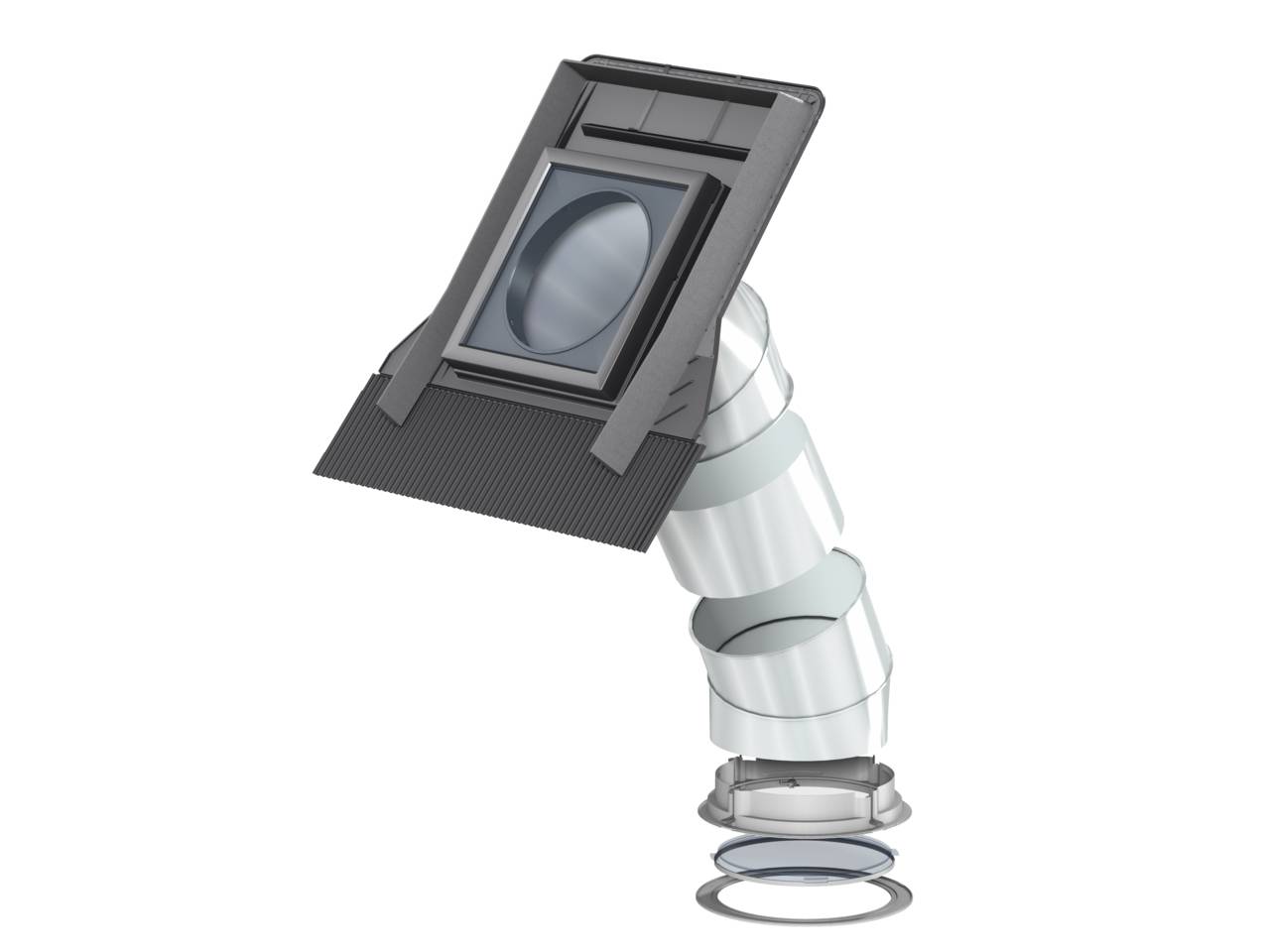

T - Sun Tunnel for Pitched Roof - Roof Module Verified by manufacturer 5 months ago
Verified by manufacturer 5 months ago
Sun tunnel with rigid or flexible pipe. Suitable for roof pitches 15-60°.
Application
Designed to direct natural light into areas of the house such as corridors, stairwells, bathrooms etc, where installation of a VELUX roof window is not possible or appropriate. For roof pitches from 15-60°.
Description
Features and benefits:

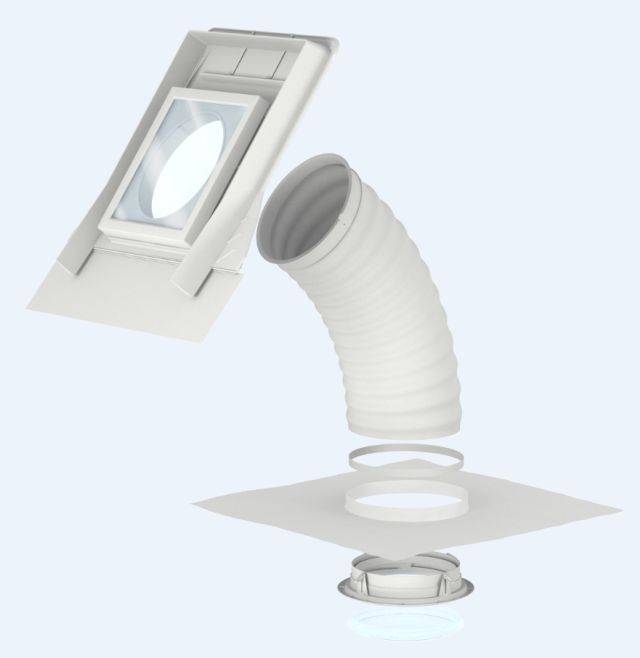

- Pitched roof sun tunnel with roof module, flexible pipe and ceiling diffuser.
- Suitable for windowless bathrooms, hallways and cupboards. Roof pitches from 15–60°.
- Complete installation kits with all necessary components for both exterior and interior connections.
- Rooflight has toughened glazing with clear and clean coating to keep the glass cleaner for longer.
- Frosted two-layer light diffuser with EdgeGlow.
- Integral flashing suitable for slate or tiles.
- Flexible tunnel is ideal for distances between roof and ceiling from 0.9–1.5 m (2 m supplied).
General information
Color | Black Graphite black, Colour NCS S 8505-B20G |
Finish | Aluminium |
Material | Polyurethane Plastic |
Shape | Other Pitched and tubular. |
SizeTunnel is Suitable for distances between roof and ceiling from 0.4–1.5 m (2 m supplied). | - |
Width | 370 mm 450 mm |
Height | 370 mm 450 mm |
WarrantyDescription | Ten year |
Uniclass | |
CAWS | L10/495 Daylight pipe |
Product range |
Specification data - Daylight pipes
Material | Polyurethane.Plastic. |
Diameter | 14". |
Length | Between 0.4 and 1.5 m (2 m supplied). |
Accessories | None.ZTL 014.Low energy light kit (requires mains connection) ZTV.Ventilation outlet - TWF only. |
Execution | Installation of daylight pipes. |
Product Reference | TWF 0K14 2010 14" diameter flexible tunnel, for installation into tiles up to 120 mm profile. TLF 0K14 2010 14" diameter flexible tunnel for installation into slate up to 8 mm thick. |
Roof pitch | Insert requirements. |
Digital objects
| Platform | Compatible | Version | Certified to |
|---|---|---|---|
 Revit | - | 4 | 2.1 |
