T - Sun Tunnel for Pitched Roof - Roof Module
Application

Designed to direct natural light into areas of the house such as corridors, stairwells, bathrooms etc, where installation of a VELUX roof window is not possible or appropriate. For roof pitches from 15-60°.

Description

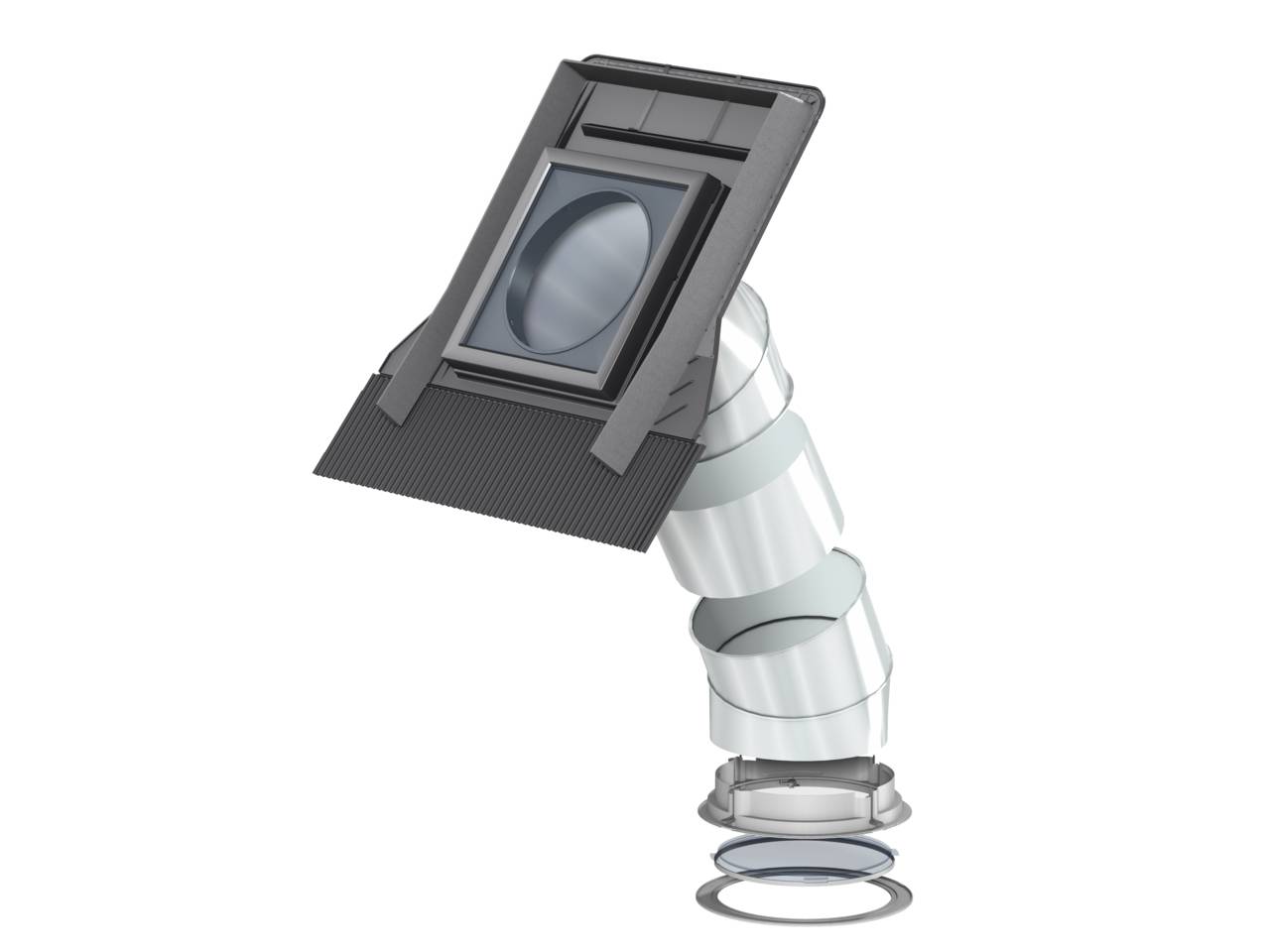

Pitched roof sun tunnel with roof module, flexible pipe and ceiling diffuser. Suitable for windowless bathrooms, hallways and cupboards. Roof pitches from 15–60°.

Complete installation kits with all necessary components for both exterior and interior connections.

Rooflight has toughened glazing with clear and clean coating to keep the glass cleaner for longer.

Frosted two-layer light diffuser with EdgeGlow.

Integral flashing suitable for slate or tiles.

Flexible tunnel is ideal for distances between roof and ceiling from 0.9–1.5 m (2 m supplied).

Warranty:

Ten-year guarantee.

Application:

Designed to direct natural light into areas of the house such as corridors, stairwells, bathrooms etc, where installation of a VELUX roof window is not possible or appropriate. For roof pitches from 15-60°.

General information

Color

Roof module Graphite black, Color NCS S 8505-B20G

Features

Roof module

Size

Ø250 mm

Ø350 mm

Uniclass 2015

Pr_30_59_72_21 Daylight pipesPrimary

CAWS

L10/495 Daylight pipe

L10/52 Daylight pipe

Specification data - Daylight pipes

Product Reference

TWF 0K14 2010

14" diameter flexible tunnel, for installation into tiles up to 120 mm profile.

TLF 0K14 2010

14" diameter flexible tunnel for installation into slate up to 8 mm thick.

Diameter

14" diameter

Length

Between 0.4 and 1.5 m (2 m supplied).

Accessories

None

ZTL 014

Low energy light kit (requires mains connection)

ZTV

Ventilation outlet - TWF only.

Roof pitch

Insert requirements.

Standard product features

Colour:

TWF Black Frame and Sash; TLF Grey Frame and Sash.

Features:

Flexible option is recommended for lengths between 0.4m and 1.5m, system incorporates a flat glass rooflight and integrated flashing, a flexible tunnel and a two-layer frosted ceiling diffuser.

Finish:

Polyurethane or lacquered aluminium.

Material:

Polyurethane, plastic.

Shape:

Pitched roof and tubular tunnel.

Size:

Tunnel is Suitable for distances between roof and ceiling from 0.4–1.5 m (2 m supplied).

Warranty description:

Ten-year guarantee.

Digital objects
PlatformCompatibleVersionCertified to
Revit
- 4 2.1
