Description

Features and benefits:

  • Provides fast and secure access control - with a decision response time of under 200 milliseconds.
  • Utilizes the high speed RS485 HBUS protocol.
  • Field upgradeable software is included.
  • Secure reader authentication, and encryption of data communications is possible.
  • Options for outdoor protection from extreme environments are available.
  • Environmentally friendly – RoHS compliant and designed for minimal power consumption.
  • Compatible with Cardax IV enabled hardware.
  • Provides support for custom site encryption keys.
  • Capable of heartbeat monitoring for real-time reader health awareness.
  • An extensive selection of reader colours, mounting, and protection accessories are available.
  • Manufactured in accordance with ISO 9001 Quality Systems.

Applications:
Provides support for and can be used in conjunction with MIFARE DESFire EV1®, MIFARE DESFire EV2®, MIFARE Plus® and MIFARE Classic®, as well as 125 kHz proximity and Bluetooth® wireless technology.

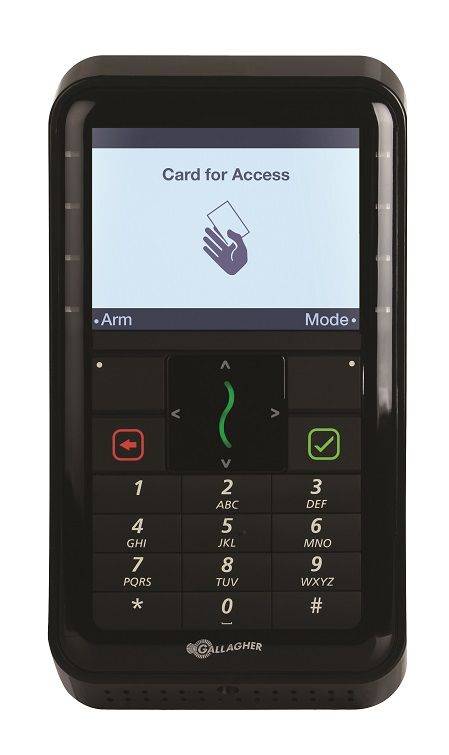

T20 Terminal:
3.5" colour LED screen and large backlit keys. Manufactured from high grade polymer. The T20 is both an access reader and a management tool, able to read cards, accept PINs, and has the ability to interface directly with the security system to make control decisions.

  • IP66 environmental protection.
  • IK08 for impact protection - suitable for use in harsh environments.
  • Easy to use.
  • Card only and card and PIN access modes available (including duress access support, and dual cardholder authentication).
  • Enforces cardholder compliance with entry regulations through competency message display.
  • Can manage building facilities such as heating, ventilation, or lighting with a key press.
  • Can arm and disarm up to 50 alarm zones, with optional automated input isolation, and automated alarms acknowledgment.
  • Displays up to 200 unacknowledged alarms and 100 acknowledged alarms, and manages up to 100 inputs.
  • Maintains system integrity with prompts to conduct manual system checks.
  • Has extensive perimeter management functions, including arming and disarming zones, acknowledging alarms, fence zone lockout for maintenance, and displaying fence voltage, battery voltage and fence controller temperature.
  • Multiple language support.
  • Integrated rear tamper.
  • Fully configurable Mimic Panel reflecting the status of up to eight inputs, outputs, or alarm zones.
  • Software can be updated in situ.

Compliance:

  • CE.
  • C-Tick.
  • Federal Communications Commission (FCC).
  • UL.

General information
Color

Black, White

Shape

Rectangle

Size

179.5 x 95.7 x 23 mm

Uniclass 2015
Multiple-technology readers (Pr_75_75_27_57)Primary
Digital objects
PlatformCompatibleVersionCertified to
IFC
- 1 2.0
Revit
Revit 2016 1 2.0
Download now from NBS National BIM Library
