System-36 PLUS - Intumescent Glazing Gasket
Verified by manufacturer 6 months ago
System-36/6 PLUS - Intumescent Glazing Gasket
System-36/6 PLUS - Intumescent Glazing Gasket
Certifire Certificate
Certificate type

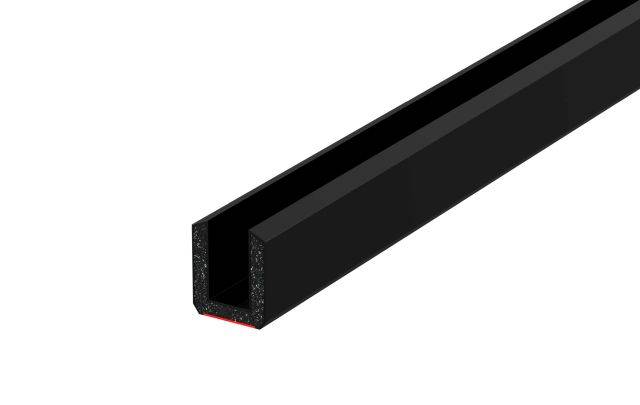

U-shaped intumescent gaskets.
Application
- System 36/6 is for use with 6–7 mm FD30 fire rated glass, suitable for screens and 44 mm thick doors.
- System 36/7 is for use with 7–8 mm FD30 fire rated glass, suitable for screens and 44 mm thick doors.
- System 36/10 is for use with 9–11 mm FD30 fire rated glass, suitable for screens and 44 mm thick doors.
- System 36/15 is for use with 14–16 mm FD30 and FD60 fire rated glass, suitable for screens and door sizes to 44 mm or 54 mm thick.
- System-36/23 is suitable for screens only. Suitable for use with 23 mm Pyrostop, 23 mm Pyranova and 23 mm Fireswiss foam glass types and does not require a sodium silicate intumescent liner.
Description
A range of flexible U-shaped intumescent gaskets designed for 30 minute fire resistant doors and screens. When using approved glass types it provides 60 minute fire resistance for doors and screens.
Features and benefits:
- The gasket is supplied on a reel so it is easily dispensed and cut to length without wastage. It is flexible enough to be fitted to curved corners and circular vision panels.
- Beads of the correct dimensions and angle must be used.
- Bead available in four timber finishes.
- Sodium silicate intumescent liner only required on substrates of density less than 500 kg/m³.
General information
Color | Black Guidance for specification option: With colour coded identification spine. |
Finish | Other |
Material | Graphite |
Shape | Other Manufacturer guidanceU-shaped |
Length | Manufacturer guidanceSystem-36/6: 60m coils System-36/7: 60m coils System-36/10: 30m coils System-36/15: 30m coils System-36/23: 25m coils |
Width | 12 mm 13 mm 16 mm 22 mm 30 mm |
Height | 15 mm 17.5 mm 20 mm 22.5 mm |
Uniclass | |
CAWS | L10/510 Glazed wood screens L10/56 Glazed screen system L20/20 Wood flush doors L20/230 Wood flush doors L20/25 Wood panelled doors L20/250 Wood panelled doors L20/270 Wood doors L20/280 Doors L20/30 Wood doors L20/410 Wood doorsets L20/420 Wood doorsets L20/430 Wood doorsets L20/480 Doorsets L20/55 Doorsets |
Specification data - Synthetic rubber glazing gaskets
Gasket type | Flexible intumescent. |
Size | 60000 x 12 x 15 mm. |
Colour | Black.Guidance for specification option: With red identification spine. |
Liner | Not required. Sodium silicate intumescent liner. Guidance for specification option: Only required on substrates of density less than 500 kg/m³. |
Channel size | 7 x 12.4 mm. |
Timber glazing beads | LG1320. Guidance for specification option: For unrebated screen frames. LG1321. Guidance for specification option: For 44 mm thick doors or rebated screen frames. |
Bead finish | Oak. Beech. Utile. Columbian pine. |
Fire rating | To BS EN 1634-1 and BS 476-22, 30 minutes. |
Sustainability data
Country of product manufacture | United Kingdom |
Third party certifications
Certifire Certificate
Certifire CF5060
Literature
Lorient Fire Resistant Glazing Datasheets
Case studies
Royal Opera House, London
