Syntha Pulvin Anodite - Powder Coating

Verified by manufacturer 2 months ago

Sherwin-Williams General Industrial Third party certifications:
  • BS EN 13501-1

    BS EN 13501-1

    Certificate type

  • EPD

    EPD

    Certificate type

Anodite is a selection of polyester powder coatings helping to beautify and protect the metal. With a striking ultra-matt appearance available in a range of solid and metallic colours.

Jump to:
BOS
07584114851 Website

Application

Suitable as a coating to metals or other outdoor appliances.

Description

Anodite is a selection of polyester powder coatings helping to protect the substrate while hiding metal surface imperfections and defects.


Features and benefits:

  • This superdurable powder coating offers outstanding weathering performance and durability.
  • Anodite was created for coating aluminium components used in architecture and for coating galvanized steel and are approved by Qualicoat (P-1718) for Class 2 Category 1, and GSB Florida 3 (152 n).
  • Ultra-matt appearance available in a range of solid and metallic shades.
  • The metallic effect pigment is fixed on the powder through a bonding process, making it possible to achieve the best results in terms of application and reproducibility of the metallic effect.

General information

Color

Finish

Powder-coated

Material

Polyester

Shape

Formless

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Pr_35_31_68_66 Powder coatingsPrimary

CAWS

H92/830 Powder coating

H11/830 Powder-coating

Specification data - Powder coatings

Powder formulation

Durable.

Execution

Application of powder coating.

Guidance for specification option:

Apply with guns with negative terminal (60/80KV) or

triboelectric guns automatically or manually. Use of fluidized

bed is recommended.


It is advised to apply the product in layers with the thickness of 60-90 microns and not exceeding 120 microns to stove at 190°C for 20 minutes (temperature of the support).

Third-party certification

GSB standard: 152 n and Qualicoat (P-1718): Class 2, Category 1.

Curing time

10–15 minutes.

Guidance for specification option:

200°C (temperature of the support).

20–30 minutes.

Guidance for specification option:

190°C (temperature of the support).

Surface coating

Aluminium.

Guidance for specification option:

Chromate conversion pretreatment, alternative conversion systems, anodic pretreatment and chrome-free pretreatment according to Qualicoat and GSB specifications.

Galvanized steel.

Guidance for specification option:

Chromating cycle.

Thickness

70 microns.

Stoving schedule

20 minutes.

Guidance for specification option:

at 190 °C.

Substrate

Aluminium.

Dry film thickness

60–80.

Guidance for specification option:

UNI EN ISO 2178.

Sustainability data

Country of product manufacture

United Kingdom

Guidance for specification option:

Other Production Sites:

  • Italy.
  • France.
  • Poland.

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

5.7 kg CO₂ eq/kg

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %

EPD

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
-

4

Revit

Revit 2016

4

Third party certifications

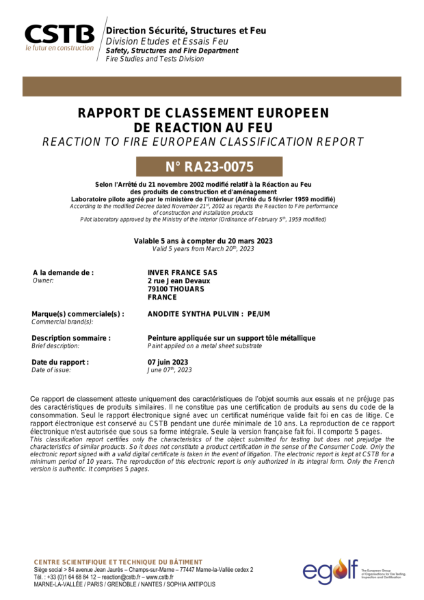

BS EN 13501-1

BS EN 13501-1

Reaction to Fire syntha pulvin Anodite RA23-0075

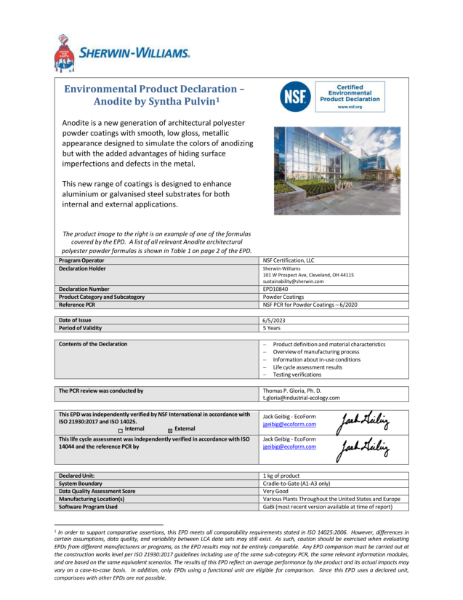

EPD

EPD

Anodite EPD
