Description

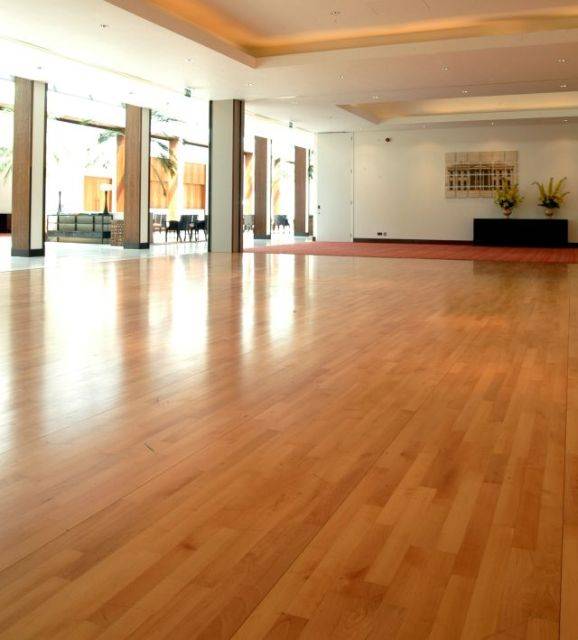

22 mm thick, multipurpose flooring for use in sports halls, schools and other education buildings where sports, dance and general education activities are required.

System features 129 mm wide x 3700 mm long boards, manufactured from two rows of graded, press dried beech staves, which have been vacuum stained honey brown in colour throughout their entire thickness, dovetail jointed together. The boards have precision machined tongued and grooved edges, which ensure easy assembly and square, secure joints. A moisture balancer is applied to the underside.

Designed for heavy wear and durability.

Available factory finished and, if necessary, can be refinished using suitable cleaning agents and lacquers. Renovation by in-situ precision sanding and refinishing is also possible.

SylvaTech plus systems conform to one or more of EN 14904: 2006, category A3 or A4.

Accreditations:

  • FSC.
  • PEFC.
  • Badminton World Federation.
  • FIBA.

General information
Specification data - Battened wood floating floor systems
Product Reference

Battened SylvaTech Plus Champoin Grade

where a uniformly coloured floor is needed in dedicated sports halls.

Battened Sylvatech Plus Premium Grade

for use where the main activity is competitive sport

Battened Sylvatech Plus Club Grade

for general/ multi purpose use

Appearance

Champion

Club

Premium

Batten system

Junckers BluBat 45 x 45 mm high foam backed

Junckers BluBat 45 x 57 mm high foam backed

Junckers BluBat 45 x 30 mm high foam backed

Junckers New Era Levelling System

Junckers New Era Acoustic Levelling System

Junckers UnoBat 45 system

Junckers UnoBat 62+ System

Junckers DuoBat 120+ System

Vapour control layer

Junckers SylvaThene laid

Finish as delivered

UV light cured lacquer plus Junckers polyurethane Isolacquer

Additional site applied finish

1 coat Junckers High Performance sports seal

Typically applied on completion of flooring, e.g. to protect line markings.

Court Line markings using Junckers HP SportsLine paint

Accessories

None

Expansion strip

Court marking paints

Nosing

Skirting

Stair nosing

Standard product features

Method of fixing:

Secret nailing.

Product Options

Appearance:

  • Sylvatech Plus Champion - where a uniformly coloured floor is needed for dedicated sports halls.
  • SylvaTech Plus Premium - for where the main activity is competitive sport.
  • SylvaTech Plus Club - for general use/ multi purpose areas.
  • Sylvatech Plus boards are vacuum stained honey brown.

Battens:

– Junckers BluBat battens:

  • 45 x 30 mm high, 45 x 45 mm high, and 45 x 57 mm high, foam backed treated battens.
  • Designed for impact energy absorption, e.g. in multi-purpose halls.

– Junckers New Era Levelling System:

  • A polypropylene cradle system for uneven sub floors, comprising batten, cradle, spacer and height extender.

– Junckers Uno Bat 45 System:

  • High quality, 23 mm high, laminated spruce batten with an integrated rubber progressive shock absorption system.

– Junckers UnoBat 62+ System:

  • High quality, 28 mm high, laminated spruce batten system for uneven sub floors, with an intergrated rubber progressive shock absorption system.

– Junckers DuoBat 120+ System:

  • High quality, double battened, laminated spruce batten system for uneven sub floors, with an intergrated rubber progressive shock absorption system.
