SX3-314 Acid Etch Window Film - Window Film

Verified by manufacturer 6 months ago

Glass Films Europe Product certifications:
  • BS EN 13501-1

    BS EN 13501-1

    Certificate type

Acid etched window film.

Jump to:
BOS
+44 (0)800 970 6366 Website

Application

For application to interior and exterior glass.

Description

Acid etched window film that gives the uniform appearance of acid etched glass with a soft frosted appearance.


Features and benefits:

  • For interior and exterior use.
  • Flammability rating of class B-s1, d0 to BS EN 13501-1:2018.
  • Made from 76 µm-thick vinyl.
  • Supplied in fixed roll width of 54” (132 cm) and 60” (152 cm).
  • Supplied with a paper liner and water-based acrylic, clear, pressure-sensitive adhesive.


This product meets ASTM E84 and is classified as Class A as defined in NFPA 101, Life Safety Code®.

General information

Color

Clear

Finish

Etched

Material

Vinyl

Shape

Rectangle

Width

1371.6 mm

1524 mm

Warranty description

Five year

Uniclass

Pr_25_57_51_60 Plastics window filmsPrimary

CAWS

L40/630 Manifestation

L40/96 Manifestation

L40/610 Window film

L40/95 Window film

SKU Code

SX3-314

Product range

Frosted Glass Films

Specification data - Plastics window films

Classification data

Purpose

Privacy.

Fire performance

To BS EN 13501-1:2018, Class B, s1, d0.

Material

Vinyl.

Colour

Clear.

Dimensions

1371.6 mm.

Guidance for specification option:

Fixed roll width.

1524 mm.

Guidance for specification option:

Fixed roll width.

Adhesive

Water-based acrylic, clear, pressure-sensitive.

Guidance for specification option:

Adhesive will whiten when installed with water solution and clears once cured.) The 45” width has a solvent acrylic adhesive with a plottable paper release liner.

Film thickness

76 µm.

Guidance for specification option:

76 micron Vinyl.

VisibleLightTransmittance

78%.

UV Transmission

22%.

Guidance for specification option:

Infra-red transmission: 79%.

Release Liner

Paper.

Sustainability data

Country of material origin

United States

Country of product manufacture

United States

Manufacturing plant location

Material

Vinyl

Expected Life

Ten year

Guidance for specification option:

Up to ten years.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Product certifications

BS EN 13501-1

BS EN 13501-1

Solyx Vinyl Fire Certificate

Literature

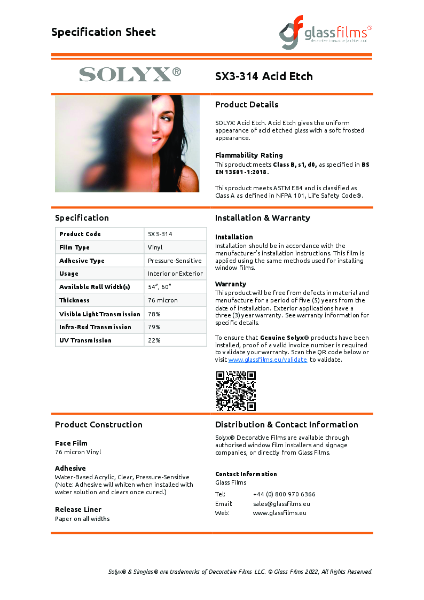

SX3-314 Acid Etch Specification Sheet

SX3-314 Acid Etch Specification Sheet
