SX-5038 Jute Window Film - Plastic Privacy Film
Verified by manufacturer 1 month ago
Pressure-sensitive adhesive window film.
Application
Suitable for use on internal glazing and windows.
Description
SX-5038 Jute is a film simulating fibre strands. Provides good privacy and has a high light transmission.
Features and benefits:
- Class B flammability rating.
- Pressure-sensitive adhesive.
- Enables privacy
General information
Color | Clear |
Finish | Film |
Material | Polyester fibre (PET) |
Shape | Rectangle |
Length | 1498.6 mm |
Width | 0.06 mm |
Warranty description | Five year |
Uniclass | |
CAWS | L40/95 Window film L40/610 Window film |
SKU Code | SX-5038 |
Specification data - Plastics window films
Classification data | |
Purpose | Privacy and decorative. |
Fire performance | To BS EN 13501-1:2018, Class B, s1, d0. |
Material | PET. |
Dimensions | 1498.6 mm. |
Design | Fibre strands pattern. |
Light transmission | 33%. |
UV Transmission | 28%. |
Adhesive | Pressure-sensitive. |
Release Liner | Silicone coated. |
Film thickness | 63 μm. |
Sustainability data
Country of material origin | United States |
Country of product manufacture | United States |
Manufacturing plant location | |
Material | Polyester fibre (PET) |
Expected Life | Ten year Guidance for specification option: Up to ten years. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature

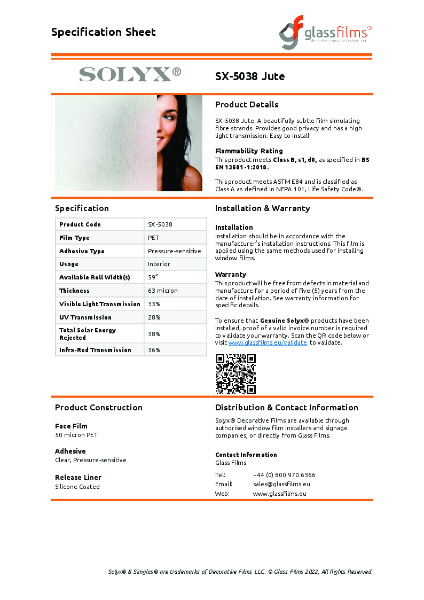

SX-5038 Jute – Product Data Sheet
