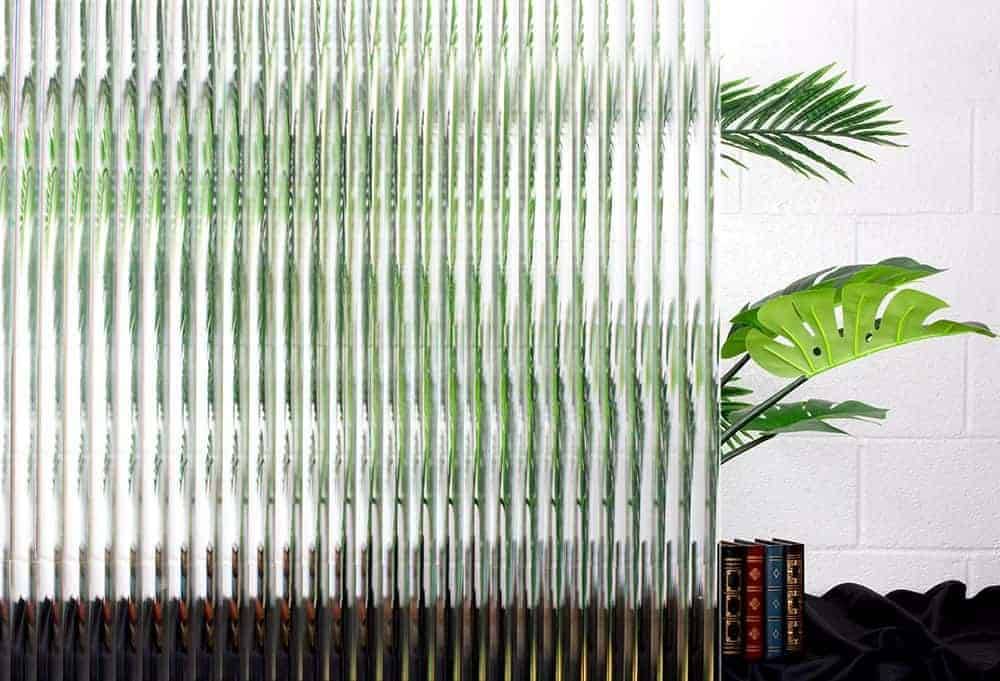

SX-1254-UG Reeded Glass 1/2" Seamless Window Film - Window Film
Verified by manufacturer 1 month ago
BS EN 13501-1
Certificate type
Intertek
Certificate type
Reeded glass seamless adhesive window film.
Application
Designed for application to interior glass, single or double pane and exterior facing glass.
Description
SX-1254 Reeded Glass Seamless adhesive film simulates real reeded glass.
Bands are 1/2″ wide and the reeded band direction runs vertically down the length of the roll.
The reeded band height is determined by the length of the material ordered.
SOLYX & SIMGLAS Decorative Films must be installed by a Glass Films-approved window film installation company in order to retain the five-year manufacturer warranty.
Please contact manufacturer to locate your nearest approved window film installer.
Features and benefits:
- For interior use.
- Flammability rating of class B-s1, d0 to BS EN 13501-1:2018.
- Supplied in fixed roll width of 30" (76 cm) or 60" (152 cm).
- Made from 50 µm-thick polyester.
- Supplied with a silicone liner and pressure-sensitive adhesive.
- Part of the UltraGreen brand.
- Intertek clean air, gold rated.
- Low VOC.
General information
Color | Clear |
Material | Polyester |
Shape | Rectangle |
Width | 760 mm 1520 mm |
Warranty description | Five year Guidance for specification option: Subject to manufacturer’s installation requirements, must be installed by a Glass Films-approved window film installation company. Consult manufacturer for details. |
Uniclass | |
CAWS | L40/630 Manifestation L40/96 Manifestation L40/95 Window film L40/610 Window film |
SKU Code | SX-1254 |
Specification data - Plastics window films
Classification data | |
Description | Reeded glass seamless adhesive window film. |
Manufacturer | Glass Films Europe. |
Purpose | Privacy. Decorative. |
Fire performance | To BS EN 13501-1:2018, Class B-s1, d0. |
Environmental performance requirements | |
Volatile organic compounds (VOC) emissions level (maximum) | ≤ 0.5 mg/m³. |
Material | Polyester. |
Colour | Clear. |
Dimensions | 760 mm. 1520 mm. Manufacturer guidanceFixed roll width |
Light transmission | 61%. |
Ultraviolet (UV) resistance | 43%. |
Adhesive | Clear, pressure-sensitive. |
Release Liner | Silicone coated. |
Film thickness | 50 µm. |
SolarReflectance | 8%. |
SolarAbsorption | 15%. |
Sustainability data
Country of material origin | United States |
Country of product manufacture | United States |
Manufacturing plant location | |
Material | Polyester |
Expected Life | Ten year Guidance for specification option: Up to ten years. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Product certifications
BS EN 13501-1
Solyx Polyester Fire Certificate
Intertek
Intertek Certified Clear Air Gold
Literature

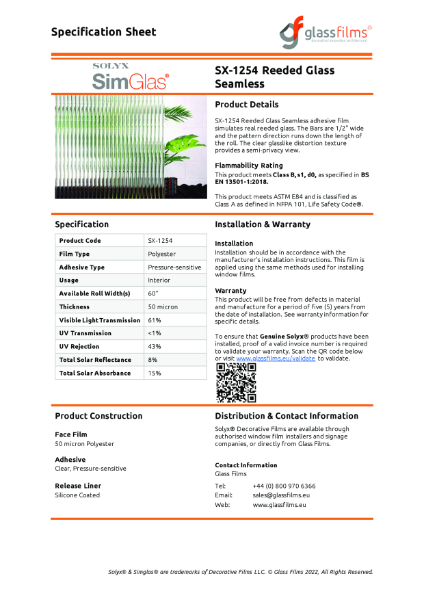

SX-1254 Reeded Glass 1/2" Seamless Specification Sheet
Case studies
SX-1254 Reeded Glass Film Installed at a Real Estate Investment Offices in London, UK
SX-1254 Reeded Glass Installed to a Financial Institution in London, UK
