Switch-disconnector Fuses with Steel Enclosure

Name: Switch-disconnector Fuses with Steel Enclosure
Brand: sZ4cRV3LC7FR4gD2J2EDEa
SKU: uKtXbqsELmtknUN2veoGVa

ABB Group (Sales Department)

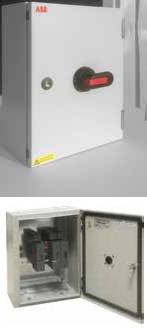

Switch-disconnector fuses with steel enclosure.

Jump to:

+44 (0)24 7636 8500 www.abb.co.uk

Description

Switch-disconnector fuses with steel enclosure. The range consists of three and four pole switch-disconnector fuses with ratings from 20–400 A.

General information

Material	Steel
Size	300 x 300 x 150 mm

Uniclass 2015	Pr_60_70_48_46 Low-voltage switch-disconnector fusesPrimary

Specification data - Low-voltage switch-disconnector fuses

Product Reference

Switch-disconnector Fuses with Steel Enclosure

Type

OS20FP-A

20 A four pole. Type A1 fuse.

OS20TPN-A

20 A three pole with solid neutral. Type A1 fuse.

OS32FP-A

32 A four pole. Type A2 fuse.

OS32TPN-A

32 A three pole with solid neutral. Type A2 fuse.

OS63FP-A

63 A four pole. Type A2/ A3 fuse.

OS63TPN-A

63 A three pole with solid neutral. Type A2/ A3 fuse.

OS100FP-A

100 A four pole. Type A2/ A3 fuse.

OS100TPN-A

100 A three pole with solid neutral. Type A2/ A3 fuse.

OS125FP-A

125 A four pole. Type A2/ A3 fuse.

OS125TPN-A

125 A three pole with solid neutral. Type A2/ A3 fuse.

OS160FP-A

160 A four pole. Type A3/ A4 fuse.

OS160TPN-A

160 A three pole with solid neutral. Type A3/ A4 fuse.

OS200FP-A

200 A four pole. Type B1/ B2 fuse.

OS200TPN-A

200 A three pole with solid neutral. Type B1/ B2 fuse.

OS315FP-A

315 A four pole. Type B1/ B4 fuse.

OS315TPN-A

315 A three pole with solid neutral. Type B1/ B4 fuse.

OS400FP-A

400 A four pole. Type B1/ B4 fuse.

OS400TPN-A

400 A three pole with solid neutral. Type B1/ B4 fuse.

Accessories

Not required

SRN5420K

Spreader box suitable for use with OS160.

SRN6425K

Spreader box suitable for use with OS200–OS400.

GZ4020

Spreader box gasket for use with SRN5420K.

GZ4025

Spreader box gasket for use with SRN6425K.

OA1G10

1 no. N/O auxiliary contact.

OA3G01

1 no. N/C auxiliary contact.

OA2G11

1 no. N/O and 1 no N/C auxiliary contacts.

OA4B1C

1 no. C/O auxiliary contact. For OS20/ OS32 only.

OSZ4

Mounting frame to fit QA1/ QA3 auxiliary on left side of OS20/ OS32 switch-disconnector fuse.

Standard product features

Finish:

Powder-coated, textured (RAL 7035).

Technical characteristics:

IP65 rated (not suitable for external installation).

All switches are supplied with fuses and removable gland plates, fitted top and bottom.

Switch-disconnector fuses are internally rated IP20 on incoming terminals up to 63 A.

Hinged lid complete with lock.

Padlockable pistol grip handle.

Dimensions (h x w x d):

OS20FP-A: 400 x 300 x 150 mm.

OS20TPN-A: 400 x 300 x 150 mm.

OS32FP-A: 400 x 300 x 150 mm.

OS32TPN-A: 400 x 300 x 150 mm.

OS63FP-A: 400 x 300 x 150 mm.

OS63TPN-A: 400 x 300 x 150 mm.

OS100FP-A: 400 x 300 x 150 mm.

OS100TPN-A: 400 x 300 x 150 mm.

OS125FP-A: 400 x 300 x 150 mm.

OS125TPN-A: 400 x 300 x 150 mm.

OS160FP-A: 500 x 400 x 250 mm.

OS160TPN-A: 500 x 400 x 250 mm.

OS200FP-A: 600 x 400 x 250 mm.

OS200TPN-A: 600 x 400 x 250 mm.

OS315FP-A: 600 x 400 x 250 mm.

OS315TPN-A: 600 x 400 x 250 mm.

OS400FP-A: 600 x 400 x 250 mm.

OS400TPN-A: 600 x 400 x 250 mm.

Digital objects

Platform	Compatible	Version	Certified to
Revit	Revit 2017	1	2.0
IFC	-	1	2.0

Download now from NBS National BIM Library
