Swimming Pool Render, Waterproofing and Tiling Systems
Verified by manufacturer 15 days ago
ISO 45001 Health and Safety Management
Certificate type
ISO 9001 Quality Management
Certificate type
Swimming pool tiling system.
Application
This system covers:
- Swimming pool substrate preparation
- Base screeding and levelling
- Ramps and falls
- Wall render
- Waterproofing
- Tile adhesives and grouts
- Gutter systems
- Pool surrounds
- Concrete or fibreglass shells
- Tiling of wet room changing areas
Description
Substrate and tiling systems for swimming pool walls, floors, surrounds and wetrooms and changing rooms.
In swimming pools, it’s not just waterproofing that presents challenges to installers. Ultimately, it is the choice of tiles, combined with the correct suite of preparation products, tile adhesives and grouts, that allows you to not only create an aesthetically pleasing design, but one which is also durable and will withstand the most demanding conditions for years to come.
ARDEX products have been successfully specified in hundreds of swimming pools, from domestic projects to the London Aquatics Centre for the London 2012 Olympic games.
This system includes a range of ARDEX products that covers substrate preparation, including tile fixing, grouting, rendering, waterproofing, levelling compounds, bedding mortars and screeds to help build and tile the swimming pool, gutter system and surrounds. There’s also products to tile pool shells made of fibreglass.

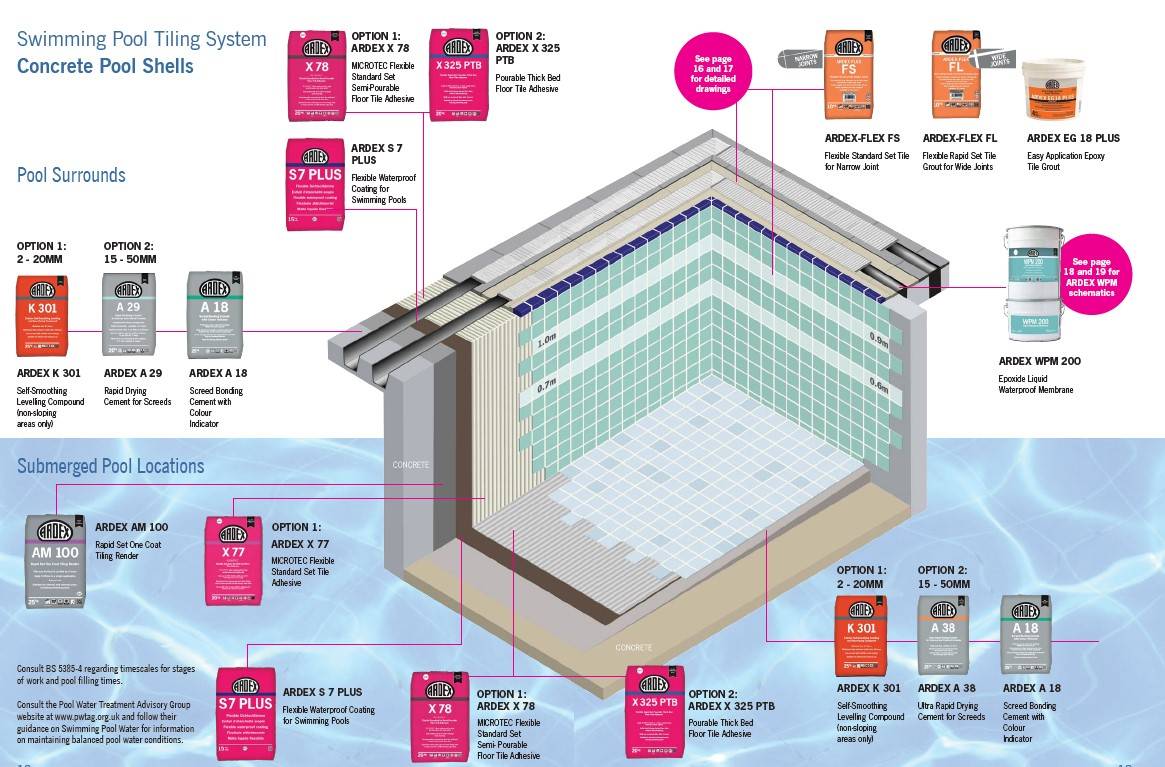

Within this listing you’ll find pool, gutter and surround system diagrams, as well as a system for wet room changing areas. All the products mentioned are listed individually on NBS source.
For further help with pool specifications, don’t hesitate to get in touch with one of our specialists.
General information
Color | Other |
Finish | Other |
Material | Polymer-modified cement |
Shape | Formless |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year |
Uniclass | |
CAWS | M40/110 Tiling to |
Specification data - Swimming pool wall tiling systems
Substrate preparation | ARDEX S 7PLUS.Guidance for specification option: Flexible Waterproof Coating for Swimming Pools. ARDEX K 301.Guidance for specification option: Self-Smoothing Levelling Compound (non-sloping areas only). ARDEX S 21.Guidance for specification option: Rapid Set Floor Tile Bedding Mortar. ARDEX A 29.Guidance for specification option: Rapid Drying Cement for Screeds. ARDEX A 18.Guidance for specification option: Screed Bonding Cement with Colour Indicator. ARDEX AM 100.Guidance for specification option: Rapid Set One Coat Tiling Render. ARDEX A 38.Guidance for specification option: Ultra Rapid Drying Cement for Screeds. ARDEX A 18.Guidance for specification option: Screed Bonding Cement with Colour Indicator. ARDEX E 100.Guidance for specification option: Additive for bonding and slurry grouts that improves the properties of screeding and rendering mortars and can be mixed with ARDEX A 38 to produce a grouting slurry for bonded screeds. ARDEX P 51.Guidance for specification option: A multi-purpose primer ideal for priming porous surfaces prior to the application of ARDEX water-based levelling and smoothing compounds. ARDEX A 46.Guidance for specification option: Rapid repair, slump free mortar which is ideal for external and internal concrete repairs. ARDEX R 3 E.Guidance for specification option: Solvent free epoxy resin. ARDEX WPM 200.Guidance for specification option: Solvent-free multi-purpose epoxide primer coating and damp proof membrane developed to provide a water and water vapour barrier. ARDEX S 7 Plus.Guidance for specification option: Flexible waterproof coating for floors and walls, ideal for use with swimming pools prior to fixing ceramic tiles. ARDEX Fine Aggregate.ARDEX CA 20 P. |
Tiling | |
Adhesive | ARDEX X 78.Guidance for specification option: MICROTEC Flexible Standard Set Semi-Pourable Floor Tile Adhesive. ARDEX X 325PTB.Guidance for specification option: Pourable Thick Bed Floor Tile Adhesive. ARDEX X 77.Guidance for specification option: MICROTEC Flexible Standard Set Tile Adhesive. ARDEX X 60 PU FLEX.Guidance for specification option: Polyurethane Reaction Resin Tile Adhesive |
Grout | ARDEX EG 18 PLUS.ARDEX-FLEX FL.ARDEX-FLEX FS. |
Movement joints | Arbokol 1025 SP.Guidance for specification option: Two part epoxy sealant for compression joints in swimming pools. |
System accessories | ARDEX S 7 PLUS.Guidance for specification option: Flexible Waterproof Coating for Swimming Pools. ARDEX WPM 200.Guidance for specification option: Epoxide Liquid Waterproof Membrane. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | United Kingdom |
Material | Polymer-modified cement |
Manufacturing plant location |
Third party certifications
ISO 45001 Health and Safety Management
ISO 45001 Health and Safety Management Certificate
ISO 9001 Quality Management
ISO 9001 Quality Management System
Literature
Tiling Solutions for Pool & Wet Leisure Installations

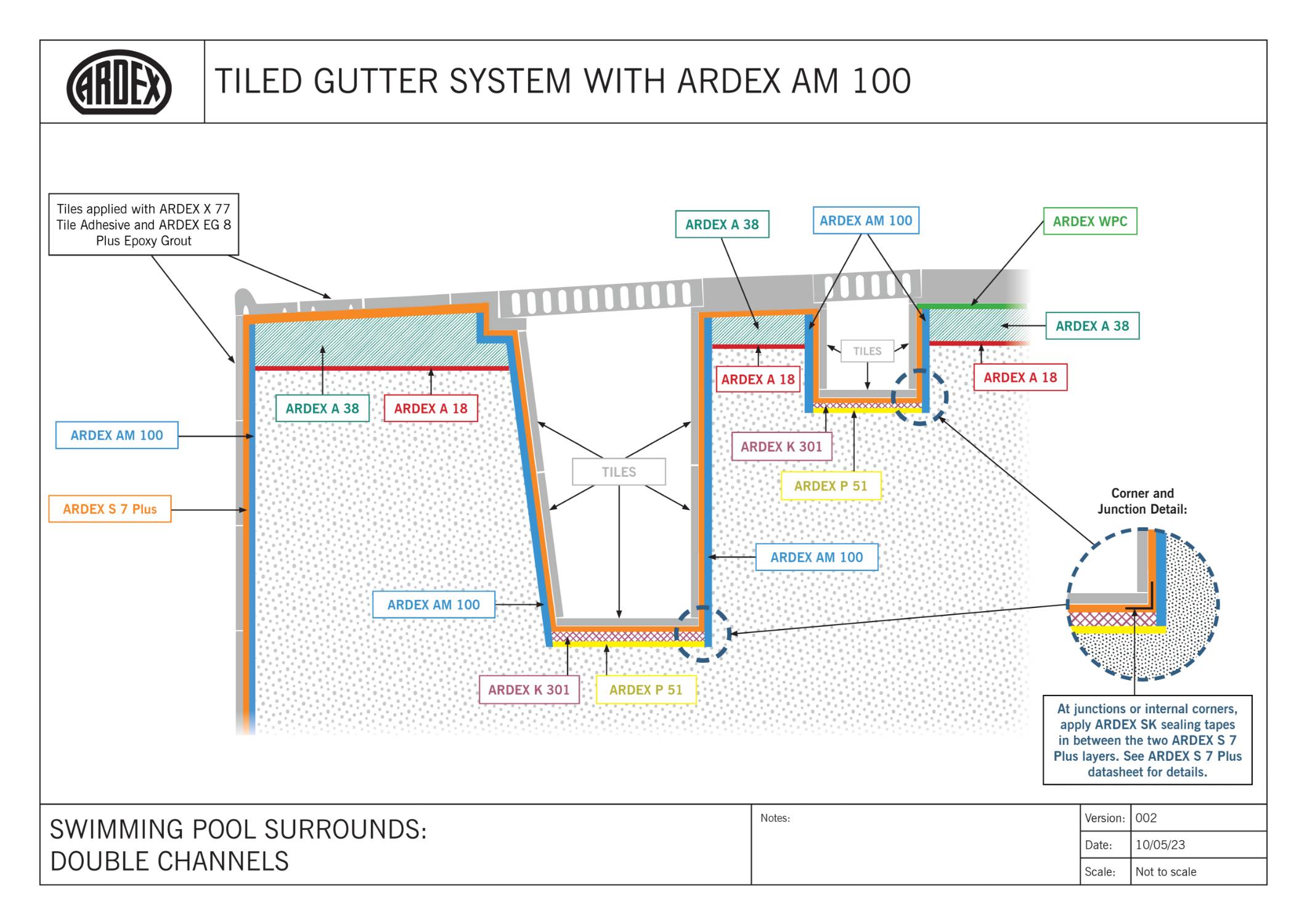

Tiled Swimming Pool Gutter / Drainage System With ARDEX AM 100
Tiled Swimming Pool Gutter / Drainage System With ARDEX WPM 200

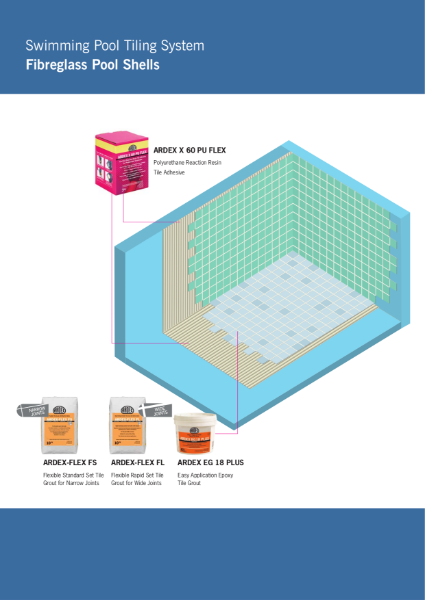

Fibreglass GRP Swimming Pool Tiling System

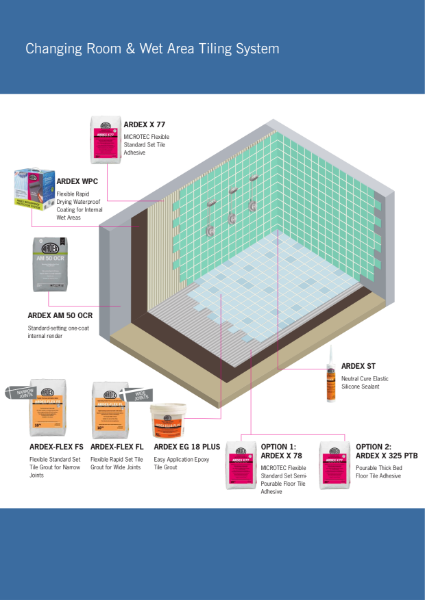

Changing Room & Wet Area Tiling System
ARDEX 10 YEAR UK PRODUCT WARRANTY
Case studies
DAVID LLOYD LEISURE CLUB
London Aquatic Centre - Olympic Pool
Tollcross International Swimming Centre
Thames Lido
Butlins Bognor Regis Pool Complex
