Manually operated, bi-Folding industrial door with high insulation values available in a range of colours. The door consist of solid, polyurethane filled panels that are hinged at the jamb.
New Swift doors are aesthetically pleasing, easy to install and offer many safety features. The system is ideal for situations that require rapid movement in and out of a building. The doors do not require a bottom track or load-bearing lintel.

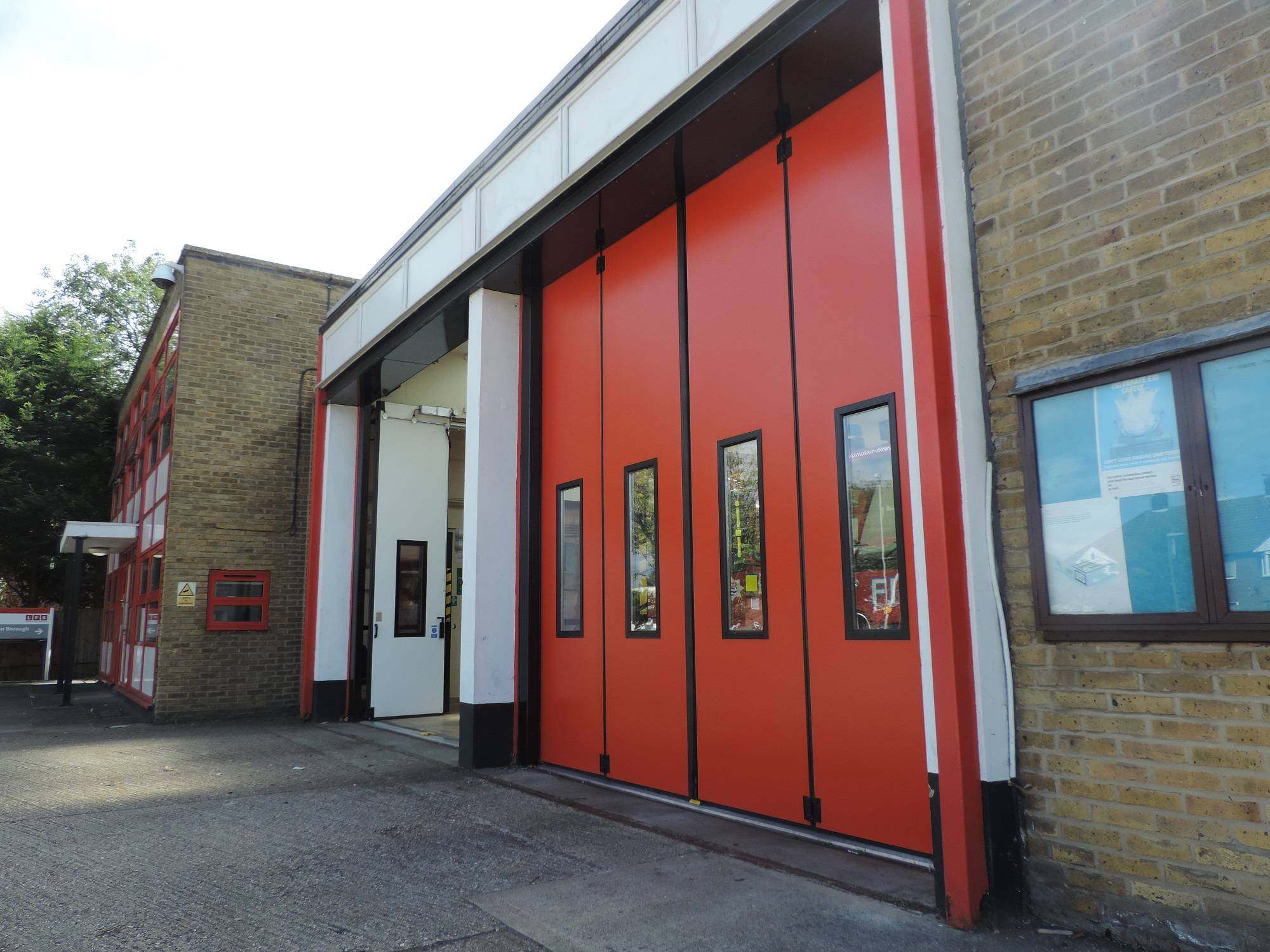

Typical applications for Swift doors include: fire stations, ambulance bays, rail maintenance sheds, vehicle workshops, loading bays, treatment works, spray booths, workshops, etc.
Side hung, available in multiple combinations, leaves fold inwards at 90°
Colorcoat LG Plastisol in poppy red, solent blue, ocean blue, olive green, goosewing grey, merlin grey and white, or Colorcoat Prisma in silver metallic, inside face -Colorcoat LG Plastisol in white, all hinges and drop bolt sleeves are black polyester powder coated in RAL 9005 (M)
Aluminium, stainless steel, galvanised steel
6000 x 5700 mm
L20/530 Sliding folding external doors
Door leaf configuration
Finish and colour
Colorcoat® LG Plastisol in stock colour external, White internal
Insert colour requirements.
Polyester powder coated external to standard RAL colour, Colourcoat® Plastisol in White internal
(Option 1). Insert colour requirements.
Polyester powder coated external and internal in standard RAL colour
(Option 2) Insert colour requirements.
Applies to all leaf configurations.
Electric operation with high level manual release
(Option 1) Applies to 2+0 and 2+2 leaf configurations only.
Electric operation with low level manual release handles
Standard Applies to 2+0 and 2+2 leaf configurations only.
Drop bolts and pull handles
Standard to all door leaf configurations, manually operated only.
(Option 1) Full height internal bolt - fitted as in lieu of drop bolt and pull handle.
Lever furniture to odd leaf
Standard to 2+1, 3+0, 3+1, 3+2 and 3+3 leaf doors.
Drop bolt and pull handle to odd leaf
(Option 1) Fitted in lieu of Lever Furniture to 2+1, 3+0, 3+1, 3+2 and 3+3 leaf doors.
Espagnolette bolt to odd leaf
(Option 2) Fitted in lieu of Lever Furniture to 2+1, 3+0, 3+1, 3+2 and 3+3 leaf doors.
Drive unit holds door firm
Standard locking to electric door.
Lever operated floor bolt
(Option 1) Fitted to electrically operated doors where additional security is required.
680 x 370 mm snap-lock
Aluminium frame DG-TG, 400 x 600 mm
Aluminium frame DG-TG, 600 x 600 mm
Aluminium frame DG-TG, 400 x 1200 mm
Aluminium frame DG-TG, 600 x 1200 mm
Lever handle furniture
Emergency panic bar furniture
Supplied by others.
150 x 75 x 10mm RSA rear mounted frame
200 x 100 x 5mm RHS between wall frame
Not recommended (Option 1).
Chamfered aluminium threshold
Standard to Swift doors.
Continuous push to open, continuous push to close.
Single push to open, single push to close (Option 1).
Single push to open, automatic timed return close (Option 2).
Full height opto-electronic, must be selected as minimum if selecting Control Method Option 1 or 2.
Send / receive photocell.
2 m high full width light curtain.
Wicket door interlock
Fitted as standard to electric doors with wickets.
RHS angle steel posts, fitted if you require an internally mounted photocell.
Red and green LED traffic light mounted on the door leaf.
Stainless steel Bewator codelock.
Extra push button
Additional Run / captive stop push button unit.
Sprung return keyswitch in separate enclosure.
Opens door on detection of oncoming vehicles.
Remote operation of door.
Standard product features
Side-hung, insulated bifold.
A flush steel goalpost surround frame should be provided in order to install a Swift door. The minimum thickness of material to be 5 mm, and the width of the internal surface to be minimum 150 mm. Note: A surround frame is not included with a Swift door as standard.
Flexible rubber seals are fitted to all edges of the door, and between door leaves. All seals are purpose-designed EPDM extrusions, which press into, and blend seamlessly with the door panels. Each seal provides full finger trap safeguarding, and protection against weather, dust and sand.
Locking and handles:
- Manually operated door:
- Power operated door:
Low Level Manual Release: In the event of power failure the motor can be disengaged using a low-level lever mounted on the inside face of the door. A built in pull handle enables the door to be instantly opened in a single quick action.
Power operation equipment:
A range of safety and control equipment is fitted or is available to order.
A full height opto-electronic safety edge is mounted within each leading edge seal of the door. An impact on the edge during closing will automatically stop and re-open the door. Safety edges are continuously monitored so the door can not close automatically in the event of damage or failure of the edge.
A FAAC XP15W send / receive photocell is fitted across the opening. The receiver unit is fitted with a long-life battery to avoid hard wiring. Photocells can be fitted for closing safety, opening safety, or a combination of opening and closing. If a closing safety beam is broken during the closing cycle, the door will automatically stop and re-open. If an opening safety beam is broken during the opening cycle, the door will automatically stop.
A red and green 24V DC LED traffic light unit is fitted. The unit is sized 370mm x 190mm with 24 LEDs to each light, and is intended to be mounted directly on the inside face of the door or onto a traffic light post. Sequence of operation is Red light on when door closed or part closed, Green light on when door fully open. A pair of 24Vdc limit switches is supplied to monitor the fully open position. Photocell / Traffic Light Posts.
A pair of 100x100 RHS right angle steel posts are fitted on the inside of the bunched door leaves to mount an internal photocell and / or traffic lights. Posts are painted yellow for maximum visibility.
