SWG Blue Roof Geocells - Load Bearing Modular Attenuation Units
Verified by manufacturer 3 months ago
SWG50
SWG50
BBA Agrément Certificate
Certificate type
Load bearing modular attenuation cell units.
Application
The Radmat range of SWG Blue Roof Geocells provides attenuation as part of a Blue Roof system that is designed to manage and control incident rainfall at a rate in line with the SuDS strategy or the attenuation requirements for a development.
Description

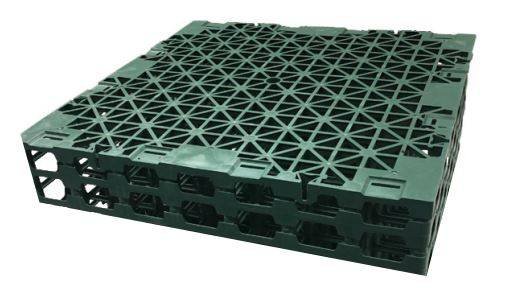

Manufactured from Polypropylene SWG Blue Roof Geocells are load bearing modular units that are clipped together to form a single or double layer attenuation cell that is wrapped in Radmat G12 Geotextile Filter Fleece.
Features and benefits:
- Used in conjunction with rainwater outlet restrictors to control discharge, the Blue Roof is designed to be half empty within 24 hours.
For a higher loading capability use SWB Blue Roof.
General information
Color | Black |
Finish | Unfinished |
Material | Polypropylene |
Shape | Square |
Length | 600 mm |
Width | 600 mm |
Height | 50 mm 65 mm 80 mm 100 mm 150 mm |
Warranty description | 40 year |
Uniclass | |
CAWS | Q37/350 Drainage layer R17/315 Modular plastics soakaway units |
Specification data - Geocellular modular plastics storage units
Material | Geocellular modular plastics storage units. |
Unit size | 600 x 600 x 50 mm.Guidance for specification option: Length x width x height. |
Capacity | 0.018/0.0171 m³.Guidance for specification option: Structure volume/ storage volume. |
Integral accessories | Radmat G12 Geotextile Filter Fleece.Guidance for specification option: For use as geotextile lining, geotextile top layer and surround. |
Weight | 1 kg. |
Compressive strength - Temporary | >500/100. Manufacturer guidanceShort term compressive strength Vertical/ Lateral = kN/m² |
Compressive strength - Permanent | >182. Manufacturer guidanceLong term compressive strength Vertical* = kN/m² *Based on a 2.75 Material Safety Factor in accordance with CIRIA c630 guidance. |
Volume void | 95%. Manufacturer guidanceVolume Void Ratio |
EffectiveArea | 60%. Manufacturer guidance(Average effective perforated surface) |

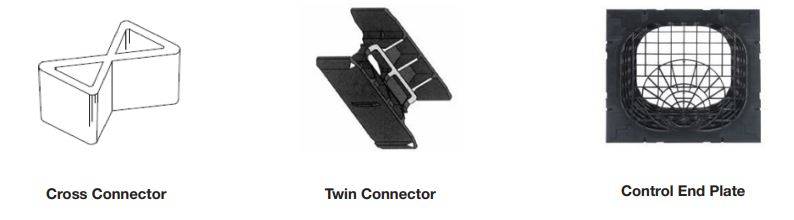

Ancillaries | Cross connector, twin connector and control end plate. |
Installation | Manufacturer's standard. Guidance for specification option:
This information given in good faith and is based on the latest knowledge available to Radmat Building products Ltd. Whilst every effort has been made to ensure that the contents of the publication are current while going to press, customers are advised that products, techniques and codes of practice are under constant review and liable to change without notice. Please consult with manufacturer for further information on Radmat products and services. |
Sustainability data
Contains Red List materials | Yes |
Country of material origin | Europe |
Country of product manufacture | Europe |
Recyclability | Yes |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 50 % |
Third party certifications
BBA Agrément Certificate
97/3336 PermaQuik PQ6100
Literature
SWG Blue Roof Geocells PDS
Radmat Blue Roof Brochure
