SWD Structural Double Threaded Wood Screw - Structural Wood Screw Service Class 2

Name: SWD Structural Double Threaded Wood Screw - Structural Wood Screw Service Class 2
Brand: Simpson Strong-Tie
SKU: dL3kGrtZpvjFkMvzG2WNnc

Verified by manufacturer 7 months ago

SWD6.5x65

Simpson Strong-Tie

Third party certifications:

DoP
Certificate type
European Technical Approval (ETA)
Certificate type

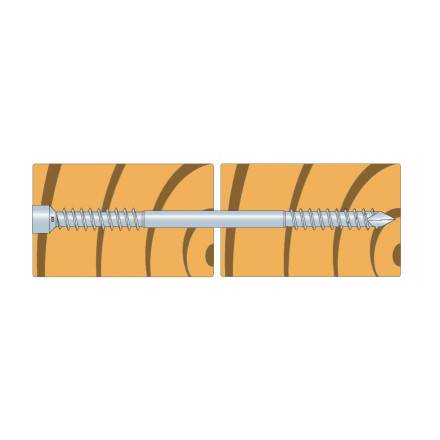

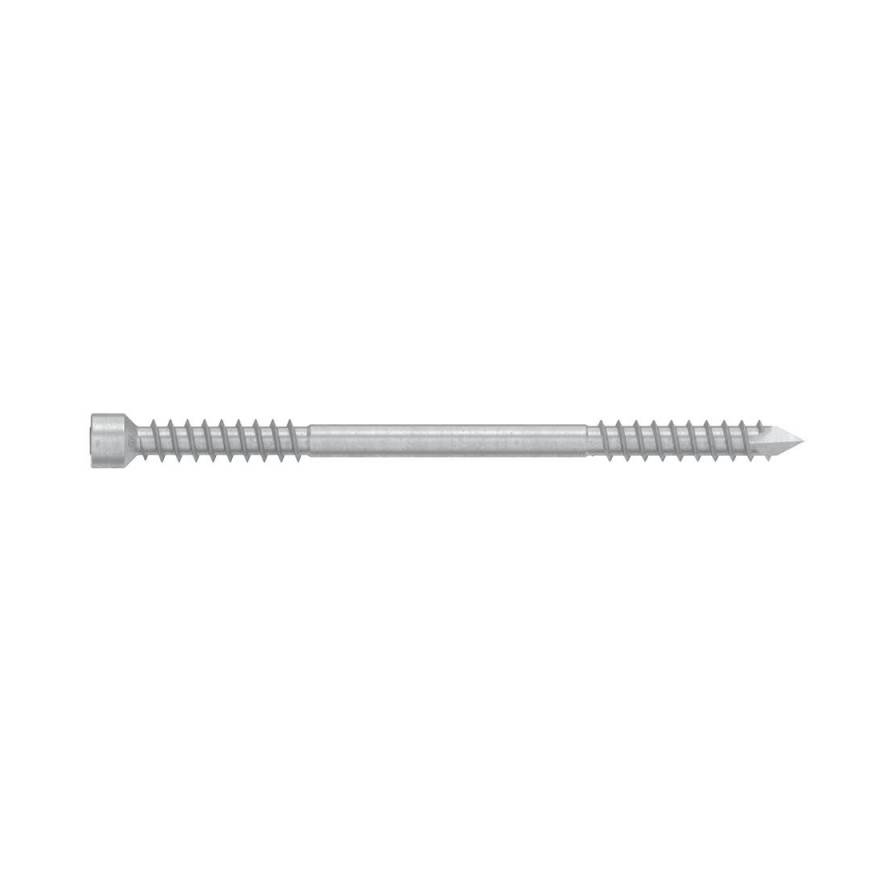

SWD is a construction screw designed to connect two timber members together. The small cap-style head and double thread creates a flexible, hidden assembly with high strength.

Jump to:

01827 255 600 Website

Application

For timber to timber connections.

Description

SWD is a construction screw designed to connect two timber members together. The small cap-style head and double thread creates a flexible, hidden assembly with high strength.

The differentiated thread pitch creates a clamping effect, reducing the risk of gaps between the timber members.

Features and benefits:

Steel with Protec®+ coating.
CE marked to EN 14592.
Service class 2.
Cap-style head.
Double threaded.
Chisel point.

General information

Color	Silver
Finish	Coated
Material	Steel
Shape	Other
Length	65 mm 90 mm 130 mm 160 mm 190 mm 220 mm 245 mm 275 mm 300 mm 330 mm Show more
Width	6.5 mm 7.8 mm

Uniclass	Pr_20_29_76_98 Wood screwsPrimary
CAWS	G20/41 Bolt/ screw assemblies G20/615 Bolt/ screw assemblies

Specification data - Wood screws

Standard	To BS EN 14592.
Material	Steel.
Finish	Protec®+ coating.
Screw details	-
Head option	Cap-style head.
Screw pattern	Twin thread.
Size	-
Diameter	6.5 mm.
Length	65 mm.

Service class	2. Guidance for specification option: Consult manufacturer's literature for characteristics performance values, dependent on variant specified.
