Autex Acoustics (12 mm/24 mm) Cube™

Autex Acoustics Ltd Variant:
Third party certifications:
  • Declare

    Declare

    Certificate type

  • Green Tag

    Green Tag

    Certificate type

Realistic high-end finishes for acoustic solutions.

Jump to:
+44 (0)1422 418 899 Website

Application

Suitable for wall and ceiling applications.

Description

A medium for creative expression, Surface Finishes gives complete design freedom.


Available across a selection of Autex Acoustic leading acoustic solutions including Cube™, Frontier™, Quietspace® Panel, and Horizon™.


Surface Finishes provides you with an opportunity to explore contemporary, meticulously selected patterns, textures, and stone finishes. These options enable you to attain luxurious, organic aesthetics, all while avoiding the expenses, bulkiness, or inflexibility associated with conventional materials. Through these finishing choices, you have the freedom to customise your designs using cutting-edge printing techniques, offering unmatched image precision and colour replication.


Features and benefits:

  • Acoustics in disguise
  • Easy to install
  • Lightweight alternative to conventional materials
  • Fire tested
  • Highly durable, providing long-term stability and performance
  • Safe, water-based, UV cured ink
  • Low VOC
  • No MOQs and short lead times
  • Available on Cube, Frontier, Quietspace Panel, and Horizon
  • Endless customisation options
  • Crisp colours and lines


How to specify:

Surface Finishes on Cube™

  • Autex Acoustics (12 mm/24 mm) Cube™.
  • Surface Finish (_).
  • ISO 9705: Classification: Group 1-S.
  • NZ Made with min. 60% post-consumer recycled content, Net-Zero Carbon.

Surface Finishes on Quietspace® Panel

  • Autex Acoustics 25 mm Quietspace® Panel.
  • Surface Finish (_).
  • ISO 9705: Classification: Group 1-S.
  • NZ Made with min. 45% post-consumer recycled content, Net-Zero Carbon.

Surface Finishes on Frontier™

  • Autex Acoustics Frontier™ Acoustic Raft (Beam 100/Beam 250).
  • Surface Finish (_).
  • ISO 9705: Classification: Group 1-S
  • NZ Made with min. 60% post-consumer recycled content, Net-Zero Carbon.

Surface Finishes on Horizon™

  • Autex Acoustics Horizon™ (shape & size*).
  • Surface Finish (_).
  • ISO 9705: Classification: Group 1-S.
  • NZ Made with min. 60% post-consumer recycled content, Net-Zero Carbon.

*NOTE:

  • Rectangle 2400 x 1200 mm.
  • Square 1200 x 1200 mm.
  • Circle 1200 mm Diam.
  • Right Angled Triangles 1159 x 1159 mm.
  • Oval 2400 x 1200 mm.
  • Hexagons 1100 mm across the widest point.

General information

Color

Other

Guidance for specification option:

Range of colours / finishes available from Autex Acoustic Stone, Pattern and Texture collections.

Finish

Guidance for specification option:

Range of colours / finishes available from Autex Acoustic Stone, Pattern and Texture collections.

Material

Polyester fibre (PET)

Guidance for specification option:

Cube™, Frontier™, Quietspace® Panel, and Horizon™.

Length

2400 mm

Width

1200 mm

Uniclass

Pr_35_93_13_80 Sound attenuator infill unitsPrimary

CAWS

K13/170 Acoustic panel lining

K13/170 Acoustic panel lining

Specification data - Sound attenuator infill units

Form

Panel.

Rigidity

Semi rigid.

Application

Wall mounting.

Guidance for specification option:

Decorative and functional acoustic wall covering for education, retail and commercial interiors, media for creative solutions, acoustic pin-board surface for education and commercial sectors, modular room divider for display, privacy and sound absorption, free-standing or direct fix acoustic panel.

Material

Polyester fibre (PET).

Acoustic performance

-

Purpose

Absorber.

Sound absorption

Class D to BS EN ISO 11654.

Guidance for specification option:

Without 24 mm air gap.

NRC = 0.45 (no air gap).

Class C to BS EN ISO 11654.

Guidance for specification option:

With 24 mm air gap.

NRC = 0.70 (with 25 mm air gap).

Fire performance

-

Reaction to fire

To BS EN 13501-1, Class B-s2,d2.

Dimensions

-

Size (length x width)

2400 x 2400 mm.

Thickness (overall)

12 mm.

24 mm.

Edges

Square.

Finish

Stone collection.

Guidance for specification option:

Consult manufacturer and insert requirement.

The Stone collection features a diverse range of colours and grains that represent stones popular in modern interior design. These Stone finishes were selected for their timeless and refined look, providing a sleek aesthetic without compromising on acoustics. Create elegant stone finishes on walls and ceilings with Cube and Quietspace Panel.

Pattern collection.

Guidance for specification option:

Consult manufacturer and insert requirement.

The Pattern collection features a selection of modern and timeless designs in contemporary colourways, created as a high-performance acoustic alternative to traditional wallpaper and paint applications. Use the Pattern collection to create feature walls and ceilings on Cube, Quietspace Panel, and Horizon.

Texture collection.

Guidance for specification option:

Consult manufacturer and insert requirement.

The Texture range offers a selection of materials and finishes commonly used in interior spaces. This collection was chosen to complement other popular interior materials while providing high level of acoustic functionality. Applied to Cube, Quietspace Panel, Frontier, or Horizon, the Texture collection allows the ability to disguise acoustic treatment in any environment.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Material

Polyester fibre (PET)

Guidance for specification option:

Cube™, Frontier™, Quietspace® Panel, and Horizon™.

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

1.89 kg CO₂ eq/kg

Self declared

Recyclability

100

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

60 %

Guidance for specification option:

Cube™

  • 60% post-consumer recycled content, Net-Zero Carbon.

Quietspace® Panel

  • 45% post-consumer recycled content, Net-Zero Carbon.

Frontier™

  • 60% post-consumer recycled content, Net-Zero Carbon.

Horizon™

  • 60% post-consumer recycled content, Net-Zero Carbon.

Manufacturer guidance

Maximum. Dependent on which acoustic solution is selected.

Third party certifications

Declare

Declare

Declare - Acoustic Timber™, Print, and Surface Finishes

Green Tag

Green Tag

Global Green Tag - Acoustic Timber™, Composition® Peel ‘n’ Stick Tiles, and Surface Finishes/Print

Literature

Surface Finishes Lookbook

Surface Finishes Lookbook

Surface Finishes Install Instructions

Surface Finishes Install Instructions

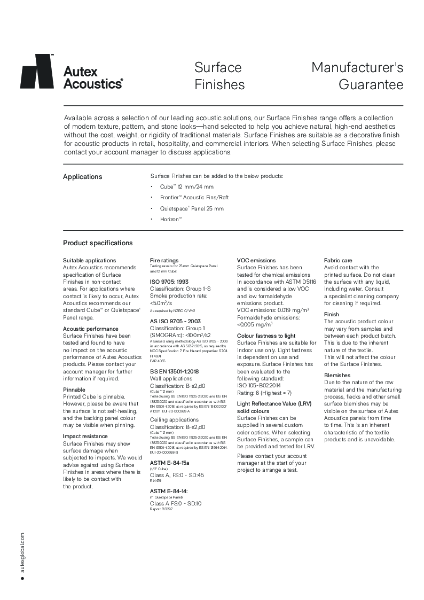

Surface Finishes Manufacturer's Guarantee

Surface Finishes Manufacturer's Guarantee

Colour Guide

Colour Guide
