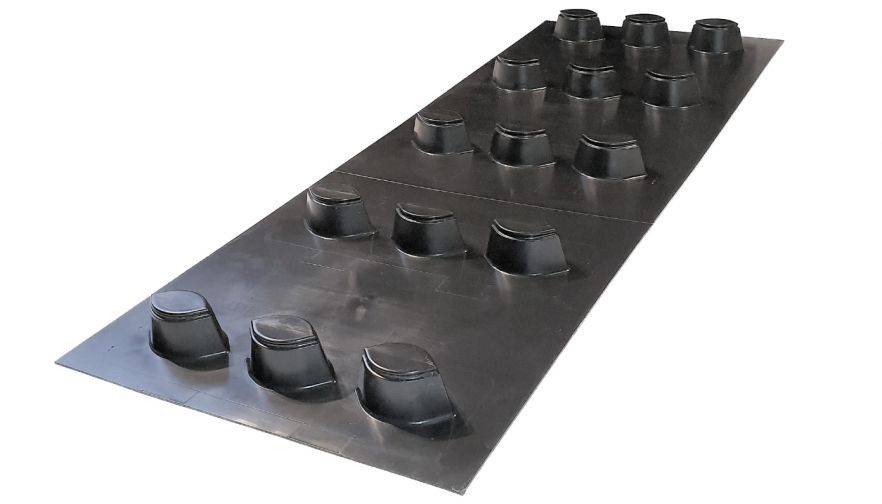

SureCav 50 Plastic Cavity Spacers

Verified by manufacturer 4 days ago

SureCav Ltd Third party certifications:
  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

The cheaper, faster, sustainable cavity spacer system.

Jump to:
BOS
+44 (0)1963 34660 Website

Application

Cavity spacer system.

Description

SureCav - The Sustainable Solution


SureCav is the 100% recycled plastic cavity spacer system that ensures a clear moisture-free cavity. Designed to replace concrete backing blocks, it's the sustainable, cheaper and faster alternative. 6x lower the CO2 footprint. It is the only way to build an approved 25 mm cavity, reducing wall widths and creating space for more insulation or extra internal floor space. As well as avoiding moisture issues, it creates a "wall" of protection against wind-driven rain.


Full BBA Approval for the 25 and 50 mm across the whole of the UK in any exposure zone.


Accepted across LABC sites, premier and checkmate. It's also used on NHBC sites across the UK.


SureCav reduces emissions. It would take 6347 lorries of concrete blocks to deliver the same m2 as 221 lorries of SureCav. That's 6126 lorries saved from the road and the emissions loading/ offloading.


It is lighter-weight and easy to use.

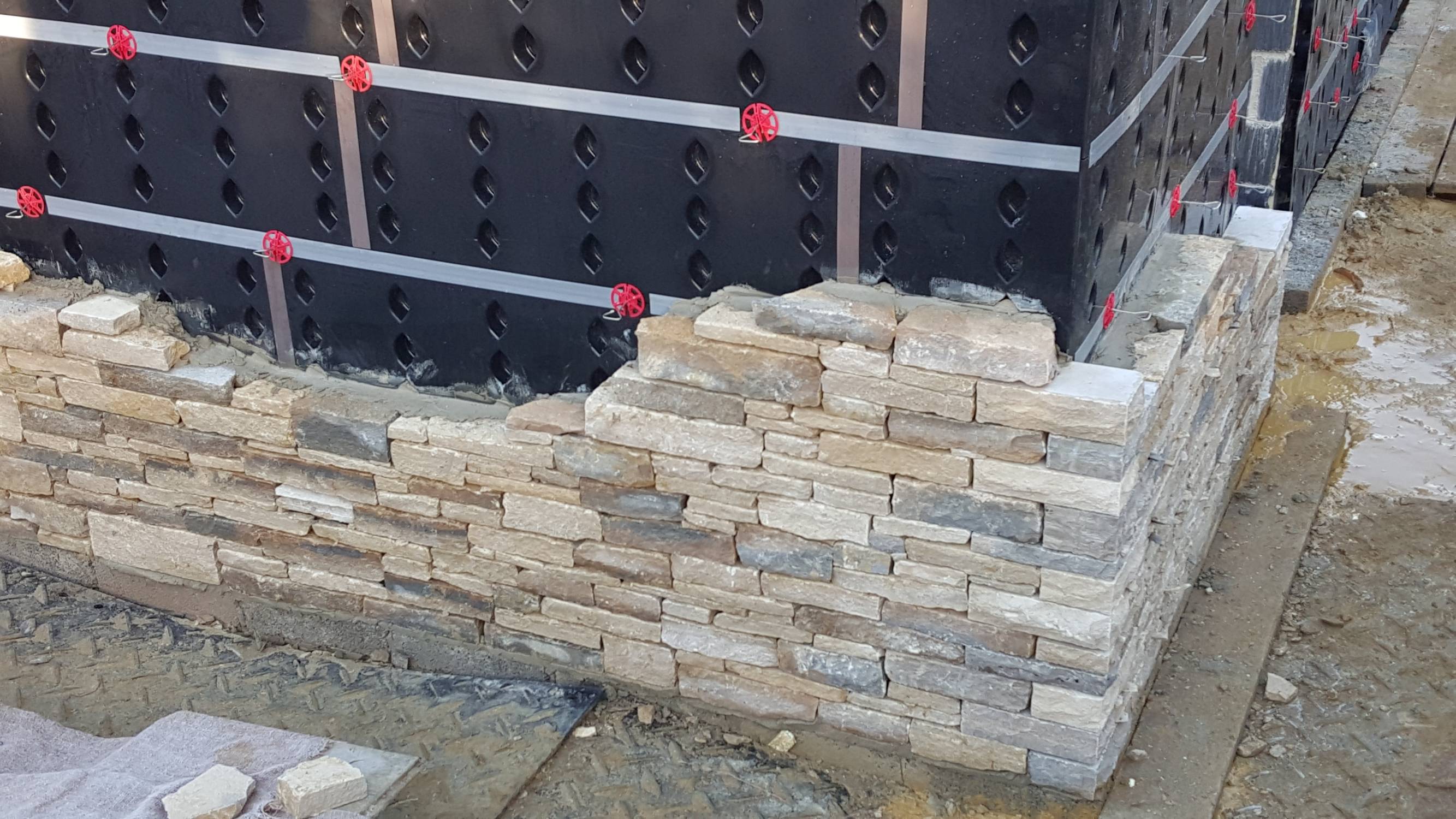

Ideal to use with stone, brick, block, render systems, flint and slate.


You can use SureCav with traditional build, timber frame, sip frame, ICF, SFS and more.


For any questions or specific information please contact:

T: 01963 34660

E: info@surecav.co.uk

W: www.surecav.co.uk

General information

Color

Black

Material

Polypropylene

Shape

Rectangle

Other

Length

1200 mm

Width

50 mm

Height

450 mm

Uniclass

Pr_35_90_50_11 Cavity spacersPrimary

CAWS

F30/56 Preformed cavity trays

F30/370 Preformed cavity trays

Specification data - Cavity spacers

Third-party certification

BBA-approved and certified to 04/4154.

Material

Polyethylene.

Dimensions

1200 x 450 mm.

Thickness

50 mm.

Packing

Sold in packs of five or ten sheets.

Optional features

Option for up to 7.5% extra internal room space.

Standard

ISO 9001 (Hillbrush manufacturing).

Colour

Black.

Sustainability data

Country of material origin

United Kingdom

Material

Polypropylene

Recyclability

Made from 100% fully recycled plastic

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %

Expected Life

Lifetime

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Third party certifications

BBA Agrément Certificate

BBA Agrément Certificate

BBA Approved, Certificate 04/4154

Literature

6x Lower CO2 Footprint  - Embodied CO2 Reduction

6x Lower CO2 Footprint - Embodied CO2 Reduction

BBA Certificate 04/4154

BBA Certificate 04/4154

Case studies

Protect your building against wind driven rain, a common source of moisture affecting buildings in the UK

Protect your building against wind driven rain, a common source of moisture affecting buildings in the UK
