SURE-MELT® - Hot Melt System

Verified by manufacturer 5 days ago

Carlisle Construction Materials Limited Product certifications:
  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

Triple protection hot applied liquid waterproofing system, with protection sheet

Jump to:
+44 (0)1623 627285 Website

Application

  • The SURE-MELT® system is suitable for inverted roofs and buried applications, including green roofs, and it can be used as part of a warm roof build-up.
  • Suitable for new build projects and for high-rise residential developments.
  • Compliant with fire safety requirements for tall buildings.

Description

SURE-MELT® is a triple protection waterproofing system, with two layers of hot melt bituminous membrane, a reinforcement layer and a protection sheet providing unbeatable robustness and durability and is designed to last a lifetime of the building or the structure to which it is applied to.


Features and benefits:

  • Robust waterproofing protection.
  • Ease of application.
  • Versatile system.
  • Cost effective specification.
  • Excellent root resistance.
  • Low maintenance.
  • Robust and resilient with a 6 mm hot melt layer and a 2–4 mm protection sheet.
  • Monolithic for seamless protection with no vulnerable joints.
  • Simple to install with low risk of installation errors.


General information

Color

Black

Material

Bitumen

Polymer

Fleece

Shape

Other

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

20 year

Uniclass

Ss_30_40_30_71 Reinforced bitumen membrane inverted roof covering systemsPrimary

CAWS

J42/12 Inverted roof covering

J42/120 Inverted roof covering

J41/120 Built-up reinforced bitumen membrane inverted roof covering

J41/14 Reinforced bitumen membrane inverted roof covering

J31/12 Inverted roof coating

J31/130 Inverted roof coating

Specification data - Reinforced bitumen membrane inverted roof covering systems

Classification data

Preparation

-

Horizontal work

SURE-MELT® Primer.

Skirtings and vertical work

SURE-MELT® Primer.

Waterproof covering

-

First layer

-

Type

SURE-MELT® Bituminous Waterproofing Compound.

Guidance for specification option:

  • Polymer-modified bitumen compound is hot applied in two layers to provide a hardwearing, seamless waterproofing membrane with a thickness of minimum 6 mm and permanent adhesion to the substrate.
  • Available in 14 kg blocks, packaged in dispersible film.

Attachment

Bitumen-based bonding compounds.

Intermediate layer

-

Type

SURE-MELT® Reinforcement Fleece.

Guidance for specification option:

  • High-strength polyester spun bond thermally-bonded fleece with a point-embossed surface.
  • Point-embossed surface helps to provide increased friction between the layers of the membrane.
  • Available in a 1 x 200 m length roll.

Attachment

Manufacturer's standard.

Top layer

-

Type

SURE-MELT® Bituminous Waterproofing Compound.

Attachment

Bitumen-based bonding compounds.

Detail work

-

Flashings

-

Manufacturer guidance

Insert requirements or omit.

Skirtings and upstands

-

Manufacturer guidance

Insert requirements or omit.

Welted drips

-

Manufacturer guidance

Insert requirements or omit.

Cover strips

-

Manufacturer guidance

Insert requirements or omit.

Ancillary items

-

Manufacturer guidance

Insert requirements or omit.

Isolating layer

-

Manufacturer guidance

Insert requirements or omit.

Insulation

-

Type

-

Manufacturer guidance

Insert requirements or omit.

Filter layer

-

Manufacturer guidance

Insert requirements or omit.

Ballast

-

Manufacturer guidance

Insert requirements or omit.

Fill to perimeter upstands

-

Manufacturer guidance

Insert requirements or omit.

System accessories

-

Manufacturer guidance

Consult manufacturer and insert requirements or omit.

Protection layer

SURE-MELT® CPS.

Guidance for specification option:

  • High-performance, polymer modified bitumen, sand-faced protection sheet, available as a 2 kg and 4 kg membrane.
  • The protection sheet is rolled into the SURE-MELT® bituminous liquid membrane enabling it to fully bond to the hot melt layer as the system cures.

SURE-MELT® CPT.

Guidance for specification option:

  • High-performance, polymer modified bitumen, mineral-faced protection sheet, available in 2 kg and 4 kg membrane, which is installed using a torch over the cured hot melt layers.
  • The underside of this protection sheet has a heat sensitive film which rapidly melts during the torch on installation.
  • The film also prevents the roll from sticking together in storage.

SURE-MELT® CPM-5.

Guidance for specification option:

  • Root-resistant 5 kg protection sheet containing a chemical root retardant and a polyester reinforcement carrier.
  • Charcoal slate mineral finish that acts as an additional barrier to prevent root ingress.
  • The chemical additive is specifically designed for SURE-MELT® bituminous waterproofing system, making it iSuitable for use under living roofs, podium gardens, and other landscaped areas.

Sustainability data

Material

Bitumen
Polymer
Fleece

Product certifications

BBA Agrément Certificate

BBA Agrément Certificate

BBA Sure-Melt

Literature

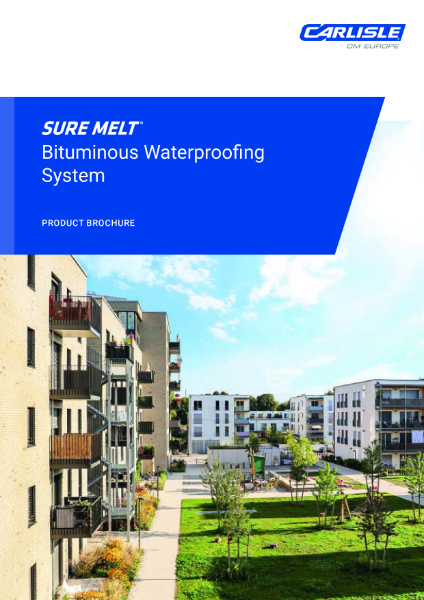

SURE-MELT® - Hot Melt System

SURE-MELT® - Hot Melt System

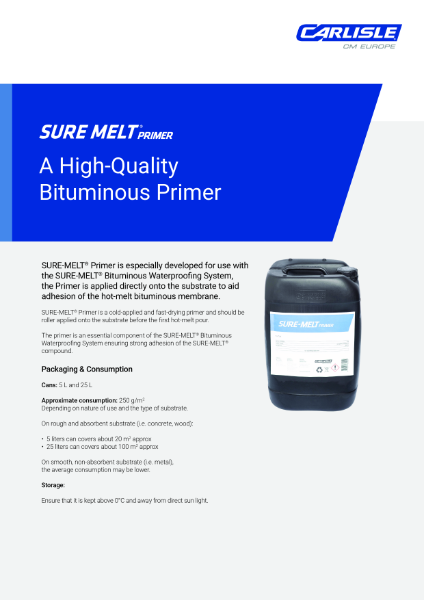

SURE-MELT® - A High-Quality Bituminous Primer

SURE-MELT® - A High-Quality Bituminous Primer

SURE-MELT® - High Strength Polyester Fleece

SURE-MELT® - High Strength Polyester Fleece

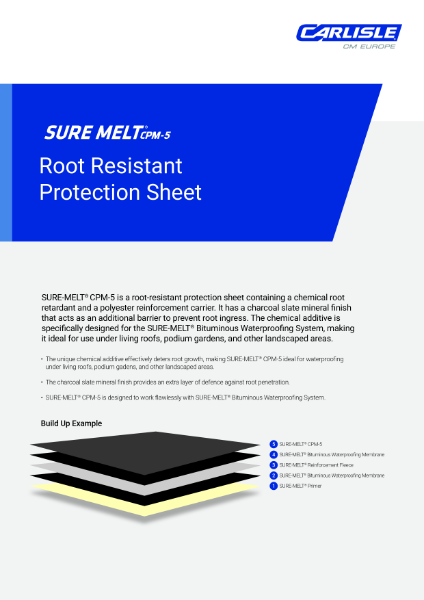

SURE-MELT® - Root Resistant Protection Sheet

SURE-MELT® - Root Resistant Protection Sheet

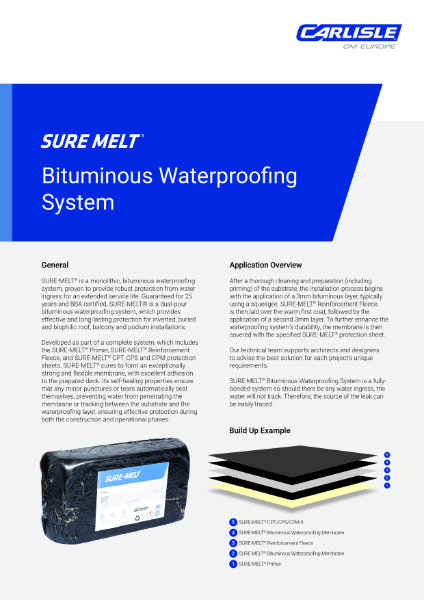

SURE-MELT® - Bituminous Waterproofing System

SURE-MELT® - Bituminous Waterproofing System

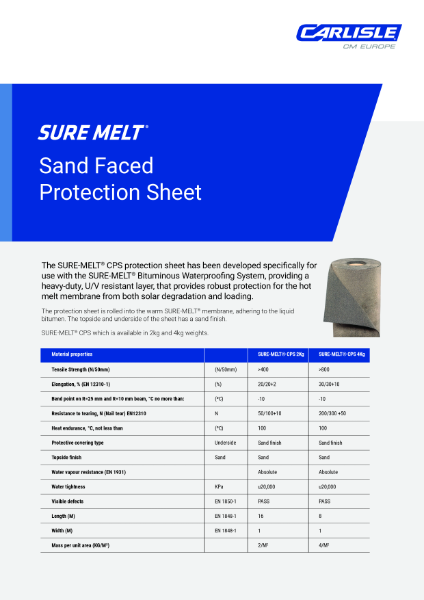

SURE-MELT® - Sand Faced Protection Sheet
