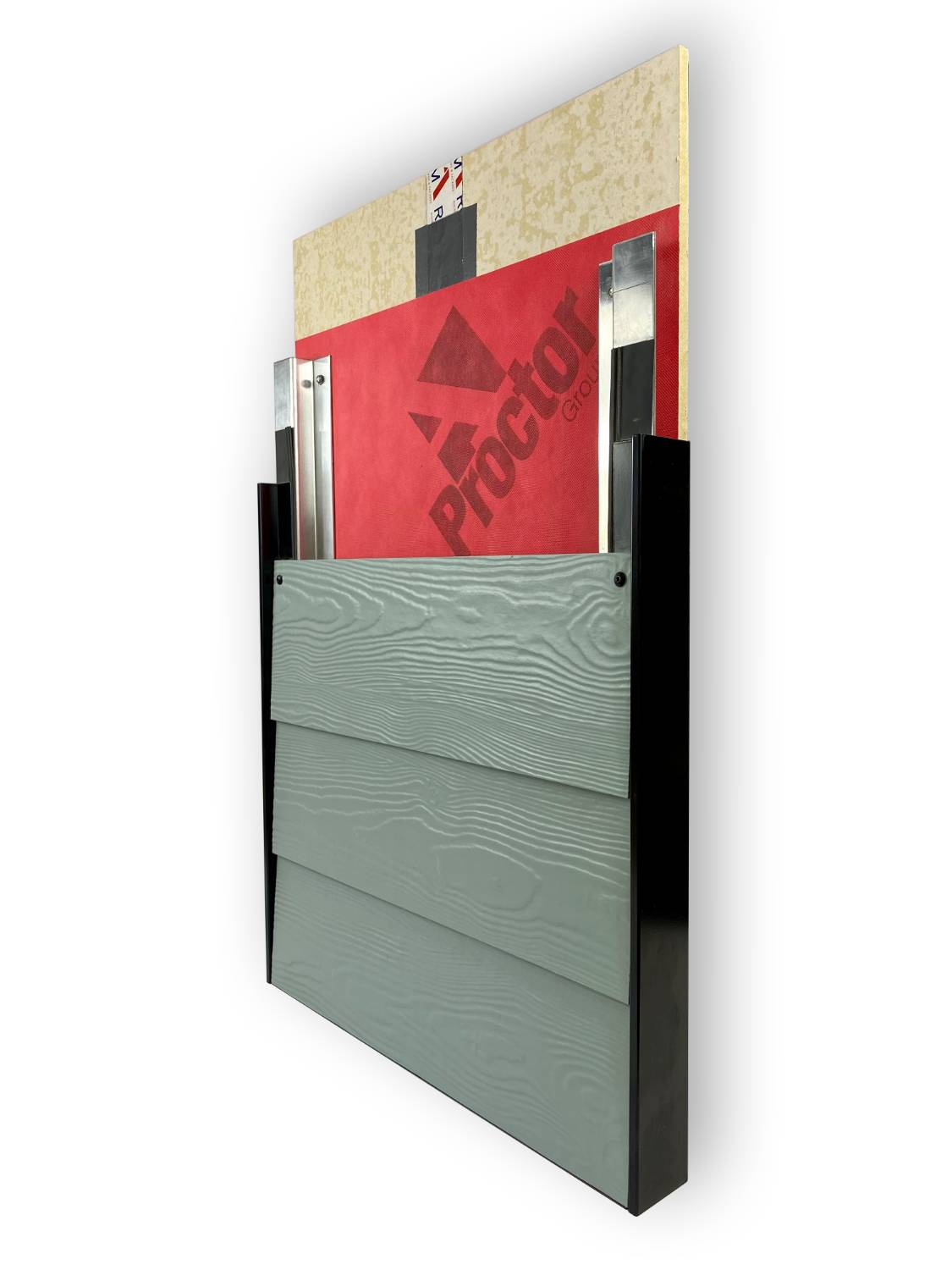

Supertech - Fibre Reinforced Cement Weatherboard

Verified by manufacturer 4 months ago

190 mm wide (standard)

RCM - Roofing and Cladding Materials Ltd Variant:

Single facet autoclaved cellulose fibre reinforced cement planks.

Jump to:
BOS
+44 (0)800 6124662 Website

Application

Suitable for:

  • Homes and commercial buildings.
  • Decorative cladding for residential and commercial buildings.

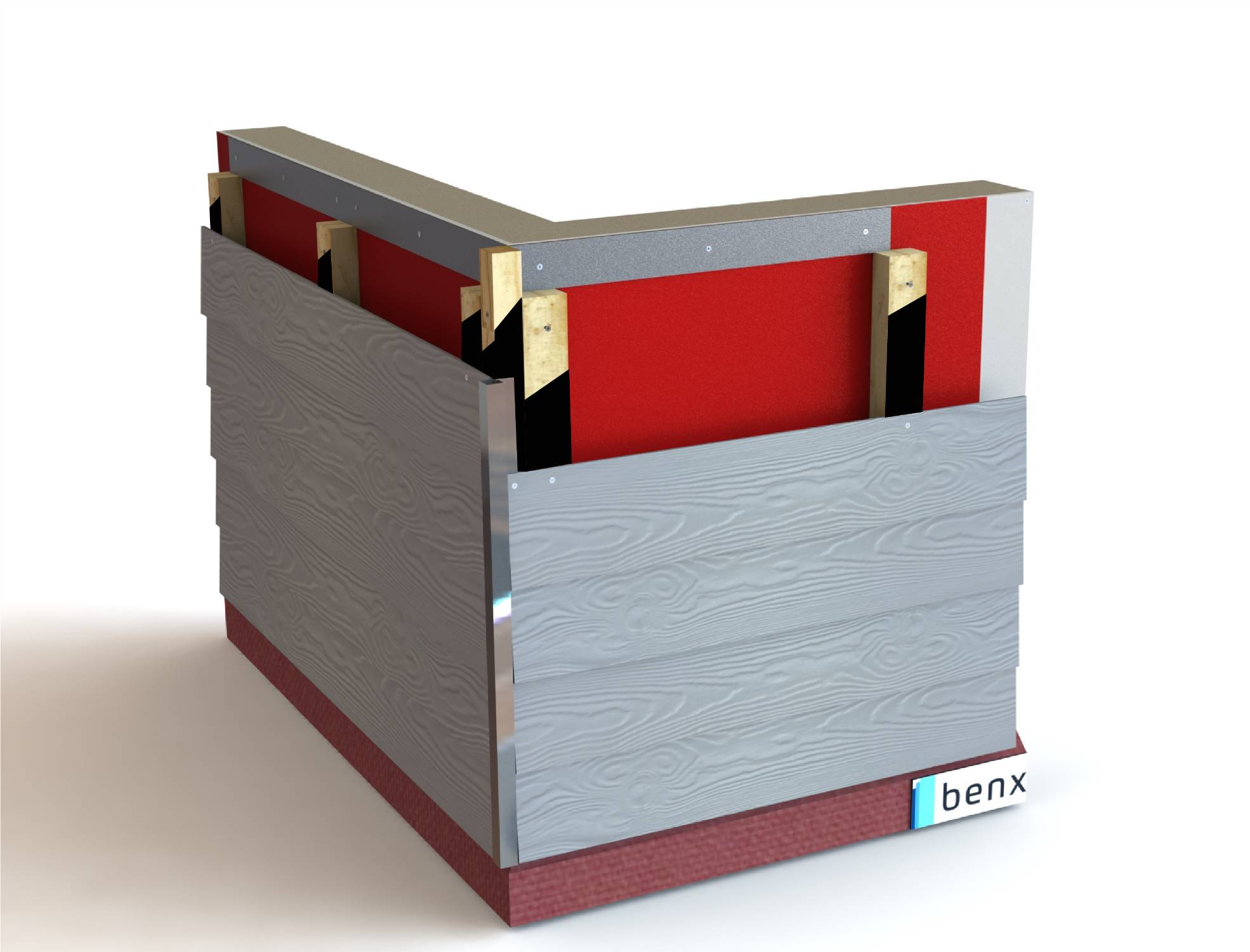

  • Steel frame, timber frame, modular/ offsite - masonry.
  • Low to medium rise masonry and framed buildings (with Z-section metal profiles with 38 mm-deep cavity).
  • Medium to high masonry or framed buildings (with Allface mounting system with 50–300 mm-deep cavity).

Description

Supertech Weatherboard is a simple to install, fully ventilated rainscreen cladding system which has an appearance similar to that of timber but the durability and strength of cement. Made from refined cellulose fibre cement, Supertech Weatherboard has high levels of impact resistance, excellent weathering properties and outstanding levels of durability. With a minimum life expectancy of 30 years, it is a façade which will withstand the demanding test of time.


Supertech Weatherboard is lightweight, requires low maintenance, can be used in the same way as timber and allows you to create truly stunning façades.


Offering a range of colour painted finishes, Supertech Weatherboard is an attractive alternative to traditional timber boarding and plastic effect PVCu cladding. Supertech Weatherboard can be installed either horizontally in a traditional lapped style (most popular way) or in a vertically lapped style.


Used by architects, national house builders, homeowners and contractors. Supertech Weatherboard is factory finished and provides substantial design opportunities.


Features and benefits:

  • Made from Specially treated high grade cellulose fibre, Portland cement, refined sand and water.
  • BBA Accredited.
  • A1 Fire Classification BS EN 13501-1: 2018.
  • Quality appearance without the imperfections seen in timber façades.
  • Resistant to rot, fungus or pest attacks.
  • Low maintenance and long lasting performance.


Technical characteristics:

  • Nominal density: 1380 kg/m³.
  • Bending strength (Modulus of Rupture): 15.85 N/mm².
  • Modulus of Elasticity (MoE): 6365 N/mm².
  • Thermal conductivity: 0.30 W/m·K.
  • Biological resistance: Highly resistant.
  • Frost resistance: Five star.
  • Coverage: 0.59 m²
  • Durability (minimum): 30 years.

General information

Color

Beige

Black

Blue

Cream

Green

Show more

Manufacturer guidance

Supertech Weatherboard has a unique colour palette and comes in a standard range of painted colours. Whether your project is rural or urban, it is important that the building blends seamlessly into the landscape. As a result, just in case we don’t have the colour you require in our standard collection, we are able to match Supertech Weatherboard to any RAL, BS or NCS colour. Minimum quantities required.

Finish

Natural

Painted

Material

Cement

Guidance for specification option:

Refined cellulose fibre cement.

Shape

Rectangle

Length

3660 mm

Width

230 mm

210 mm

190 mm

Warranty description

Ten year

Guidance for specification option:

On to RCM customer UK.

Uniclass

Pr_25_71_11_31 Fibre-reinforced cement weatherboardsPrimary

CAWS

H20/10 Sheet cladding

H20/150 Sheet cladding (attached to metal support systems)

H20/155 Sheet cladding (attached to timber battens)

H21/10 Vertical timber weatherboarding

H21/110 Vertical timber weatherboarding

H21/111 Horizontal timber weatherboarding

H21/15 Horizontal timber weatherboarding

Specification data - Fibre-reinforced cement weatherboards

Standard

To BS EN 13501-1:2018.

Third-party certification

BBA Accredited.

Fire rating

A2-s1, d0.

Guidance for specification option:

In accordance with BS EN 13501-1:2007.

Supertech to treated 38 x 47mm timber battens (supplied by others) is A2.


An alternative range of A1 non-combustible support frames is available, specified under accessories.

  1. Aluminum Z profile is available for low- to medium-rise applications, cavity depth: 38 mm.
  2. Allface Helping Hand system; for on medium- to high-rise applications, cavity depth: 50–300 mm.

Manufacturer guidance

Supertech Weatherboard with all standard solid colours achieves the highest possible classification to BS EN 13501-1:2018 providing a reaction to fire, Non-Combustible, A1 classification. This classification relates to mounting applications of treated 38 x 47mm timber battens or metal profiles, when fixed with nails or screws (please refer to fixing section for specification of fixings).

Edges

Square.

Finished size

3660 x 190 mm.

Face width

190 mm.

Thickness

7.5 mm.

Guidance for specification option:

Dimensional tolerance: +0.6/-0.2 mm.

Surface texture

Woodgrain textured.

Smooth.

Colour

Natural.

Guidance for specification option:

Standard finish.

White.

Guidance for specification option:

RCM/OP01.

Light grey.

Guidance for specification option:

RCM/OP02.

Beige.

Guidance for specification option:

RCM/OP03.

Cream.

Guidance for specification option:

RCM/OP04.

Blue.

Guidance for specification option:

RCM/OP05.

Green.

Guidance for specification option:

RCM/OP06.

Black.

Guidance for specification option:

RCM/OP07.

Graphite grey.

Guidance for specification option:

RCM/OP08.

Dark grey.

Guidance for specification option:

RCM/OP09.

Brown.

Guidance for specification option:

RCM/OP010.

Lilac blue.

Guidance for specification option:

RCM/OP011.

Lavender blue.

Guidance for specification option:

RCM/OP012.

Dark brown.

Guidance for specification option:

RCM/OP013.

Sand yellow.

Guidance for specification option:

RCM/OP014.

Red.

Guidance for specification option:

RCM/OP015.

Fir green.

Guidance for specification option:

RCM/OP016.

Pine.

Guidance for specification option:

RCM/WS01.

Light oak.

Guidance for specification option:

RCM/WS02.

Cedar.

Guidance for specification option:

RCM/WS03.

Dark oak.

Guidance for specification option:

RCM/WS04.

Walnut.

Guidance for specification option:

RCM/WS05.

Ebony.

Guidance for specification option:

RCM/WS06.

Other, RAL.

Guidance for specification option:

Colour-matching available; insert requirements.

Other, BS.

Guidance for specification option:

Colour-matching available; insert requirements.

Other, NCS.

Guidance for specification option:

Colour-matching available; insert requirements.

Manufacturer guidance

  • Weight: Natural finish: 10.95 kg/m²; painted or stained finish: 11.25 kg/m².
  • UK factory applied colour.
  • Range of colour matching aluminium trims available screws suitable for the installation of the Supertech.
  • Weatherboard are available from RCM and can be supplied self-coloured or colour matched to a chosen colour.

Accessories

None.

RCM sheathing board.

Guidance for specification option:

'Layer 1'; see manufacturer's literature for details.

RCM breather membrane.

Guidance for specification option:

'Layer 2'; see manufacturer's literature for details.

RCM Z-section metal profiles.

Guidance for specification option:

Alternative to standard timber battens; A1 non-combustible.

Cavity depth 38 mm, typically used for low- to medium-rise applications and can be fixed back to both masonry and framed buildings.

'Layer 3'; see manufacturer's literature for details.

RCM Allface mounting system.

Guidance for specification option:

Alternative to standard timber battens; A1 non-combustible.

Cavity depth 50–300 mm. Typically used on medium- to high-rise applications where the cavity depth needs to vary and can be fixed back onto either masonry or framed buildings.

'Layer 3'; see manufacturer's literature for details.

Show more

Grain

FG.

Guidance for specification option:

Fine.

SG.

Guidance for specification option:

Standard.

Sustainability data

Recyclability

Recyclable

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Vectorworks
-

1

ARCHICAD
-

1

Revit

Revit 2017

5

AECOsim
-

1

IFC
-

5

Literature

Material Safety Data Sheet - Supertech

Material Safety Data Sheet - Supertech

Supertech Weatherboard - Sales Brochure

Supertech Weatherboard - Sales Brochure

FIBRE-CEMENT WALL BOARDS - SUPERTECH PLANK

FIBRE-CEMENT WALL BOARDS - SUPERTECH PLANK

Declaration of Performance - Supertech

Declaration of Performance - Supertech

Case studies

Bourne Fields - Aldridge, Walsall

Bourne Fields - Aldridge, Walsall

Conninbrook Lakes

Conninbrook Lakes

Manor Park - Ashford, Kent

Manor Park - Ashford, Kent

Pen Y Bont

Pen Y Bont
