SuperPhon High Impact Wall Panels - Sound Absorption Panel

Verified by manufacturer 2 months ago

CMS Danskin Acoustics Third party certifications:
  • ISO 45001 Health and Safety Management

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

High impact acoustic wall panels.

Jump to:
+44 (0)1925 577711 Website

Application

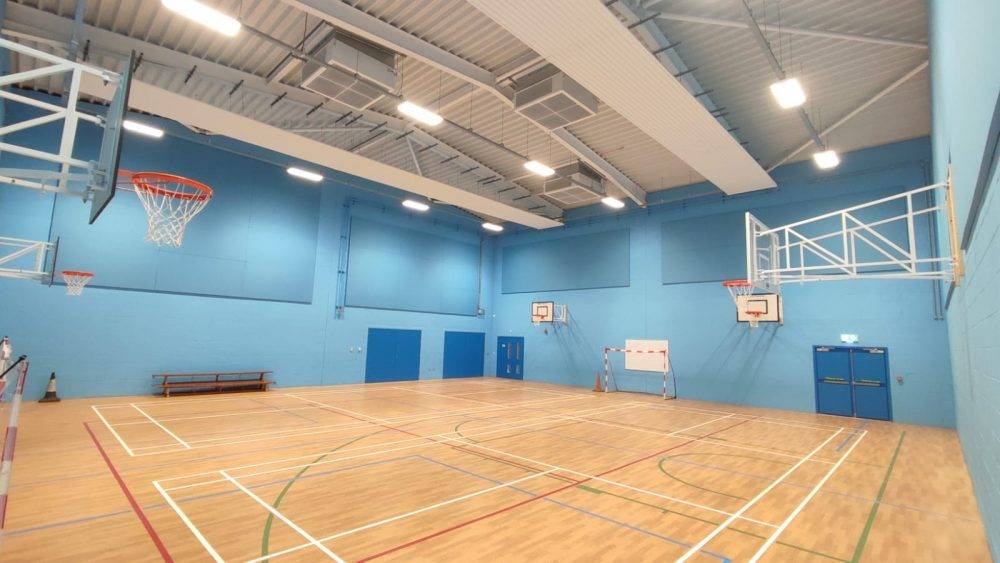

Suitable for multi-purpose use in high traffic areas, or where surface impact is expected, including:

  • Sports halls.
  • Gymnasiums.

Description

High impact acoustic wall panels finished with an acoustic woven fabric, developed to provide a reverberation control solution.

A highly sound-absorbent acoustic panel system with a patented construction that incorporates micro swirl air cells that significantly enhances sound absorption, especially at the low end of the frequency spectrum. The panels are finished with an acoustic woven fabric to provide an aesthetic appearance.


Features and benefits:

  • Cost effective as less panel area is required compared to other acoustic wall panel products.
  • Impact resistant and robust.
  • Class 'A' acoustic absorption.
  • Standard coverings have Class ‘1’ fire performance (Class ‘0’ available upon request).For Fabric only
  • Easy to install, can be cut to size on site.
  • Manufactured to exact project requirements.
  • A solid to wall or 25/ 50 mm air gap can be formed on site.
  • Certified by CST Global Centre for Sports Technology.
  • Approved by ISSS, World Squash Federation (WSF) and ITF.


Application:

Suitable for multi-purpose use in high traffic areas, or where surface impact is expected, including:

  • Sports halls.
  • Gymnasiums.

General information

Color

Beige

Black

Blue

Bronze

Brown

Show more

Finish

Smooth

Material

Glass Fibre

Shape

Rectangle

Square

Length

3000 mm

Width

1200 mm

Height

25 mm

40 mm

50 mm

Warranty description

One year

Other

Uniclass

Pr_35_93_13_80 Sound attenuator infill unitsPrimary

CAWS

K13/170 Acoustic panel lining

Product range

Acoustic panels

Specification data - Sound attenuator infill units

Third-party certification

CST Global Centre for Sports Technology, ISSS, World Squash Federation (WSF) and ITF.

Form

Panel.

Application

Wall mounting.

Material

Glass-reinforced fibre.

Acoustic performance

-

Purpose

Absorber.

Sound absorption

Class A to BS EN ISO 11654.

Dimensions

-

Size (length x width)

3000 x 1200 mm (maximum).

Manufacturer guidance

Consult manufacturer and insert requirements.

Thickness (overall)

25 mm.

40 mm.

50 mm.

Finish

Woven fabric.

Colour

-

Manufacturer guidance

Consult manufacturer and insert requirements.

FlammabilityRating

Core: Class ‘0’.

Guidance for specification option:

  • Standard covering: Class ‘1’.
  • Treated covering: Class ‘0’.


Sustainability data

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Glass Fibre

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

46 %

Third party certifications

ISO 45001 Health and Safety Management

ISO 45001 Health and Safety Management

ISO 45001:2018

ISO 9001 Quality Management

ISO 9001 Quality Management

SIG ISO 9001

Literature

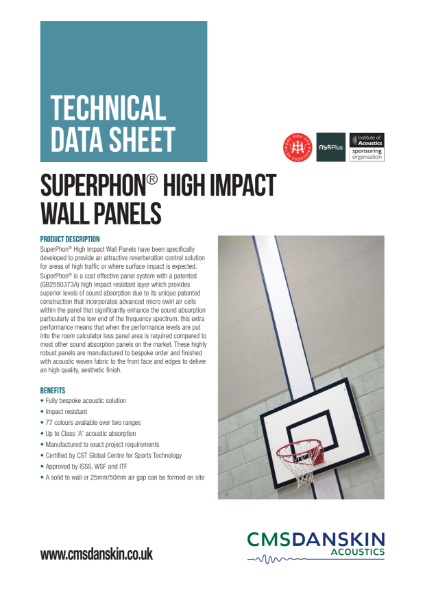

SuperPhon Sound Absoprtion Panels

SuperPhon Sound Absoprtion Panels

SuperPhon High Impact Panels

SuperPhon High Impact Panels

Case studies

Hove Park School Case Study

Hove Park School Case Study
