SuperPhon Baffles
Verified by manufacturer 3 months ago
50 mm panel
50 mm panel
ISO 45001 Health and Safety Management
Certificate type
ISO 9001 Quality Management
Certificate type

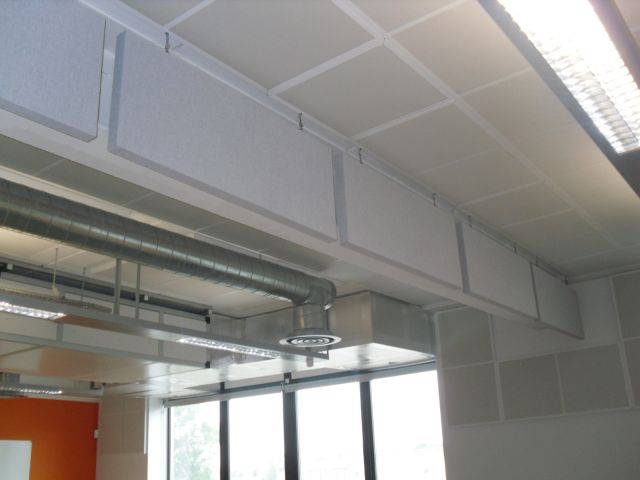

Sound absorbing baffles.
Application
Used to provide a solution in environments and workplaces where noise is an issue, including;
- Recording studios.
- Sports halls.
- Schools.
- Call centres.
Description
The SuperPhon® range provides an effective means of controlling reverberation and reflected sound in rooms. SuperPhon® Baffles are available in standard sizes and thicknesses, and bespoke panels and absorbers of a specific size, thickness, shape or fabric facing can be readily manufactured. As well as the broad offering of standard fabric colours, panels can be colour matched to any chosen fabric.
Features and benefits:
- Provides up to Class A acoustic performance.
- 88 fabrics available over two ranges.
- Wipe clean finish available.
- Bespoke manufacture.
- Complete range of fixing systems.
- Full technical and on-site support.
General information
Color | Other |
Finish | Smooth |
Material | Composite Fabric Glass Fibre Polyester fibre (PET) |
Shape | Rectangle |
Length | 1200 mm 1800 mm |
Width | 300 mm 450 mm 600 mm |
Height | 25 mm 40 mm 50 mm |
Warranty description | One year Other |
Uniclass | |
CAWS | K13/170 Acoustic panel lining |
Product range |
Specification data - Sound attenuator infill units
Form | Baffle. |
Acoustic performance | |
Purpose | Absorber. |
Sound absorption | Up to Class A. |
Dimensions | |
Size (length x width) | 300 x 1200 mm.450 x 1200 mm.600 x 1200 mm.300 x 1800 mm.450 x 1800 mm.600 x 1800 mm.Manufacturer guidanceOther sizes available on request. Maximum panel size: 1200 x 3000 mm, subject to fabric limitations. |
Thickness (overall) | 50 mm.Manufacturer guidanceOther thicknesses are available on request. Consult manufacturer for details. |
Fabric | 88 fabrics available over two ranges. Guidance for specification option: Consult manufacturer and insert requirements. |
Weight | 5.00 kg/m². |
Sustainability data
Material | Composite Fabric Glass Fibre Polyester fibre (PET) |
Third party certifications
ISO 45001 Health and Safety Management
ISO 45001:2018
ISO 9001 Quality Management
SIG ISO 9001
Literature
SuperPhon Sound Absoprtion Panels
