SuperLag Pipe Lag - Acoustic Pipe Insulation

Name: SuperLag Pipe Lag - Acoustic Pipe Insulation
Brand: CMS Danskin Acoustics
SKU: DSUfJDFcWe2LW39yWbqZa

Verified by manufacturer 6 days ago

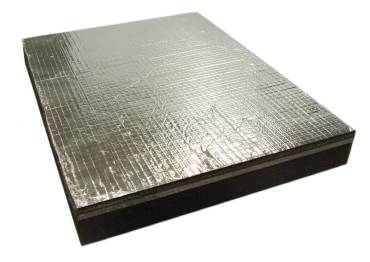

A four-layer acoustic pipe insulation made of two polyurethane layers separated by a dense acoustic barrier, finished with a Class ‘0’ reinforced foil and available in a range of formats.

Jump to:

Request BIM

+44 (0)1925 577711 Website

Application

Acoustic insulation designed for rainwater pipes, pneumatic pipes, hydraulic pipes, and waste water pipes for industrial, commercial and construction applications. Steam pipes can also be treated with SuperLag Pipe Lag providing a suitable thermal insulation is applied as the first layer in direct contact with the pipe face. Being of a foam laminate construction, it is particularly suitable where fibre erosion is not acceptable and where a significant reduction in break-out noise is specified.

Description

A four-layer acoustic pipe insulation made of two polyurethane foam isolation layers separated by a dense acoustic barrier (lead or polymeric mass-loaded layer), finished with a Class ‘0’ reinforced foil facing. SuperLag Pipe Lag is available in a range of formats by varying the weight and type of the mass barrier and selecting from three thicknesses of acoustic spacer layers to suit the performance required.

Features and benefits:

Easy and quick to apply.
Excellent acoustic performance.
Applied as a single dry treatment.
Low thermal conductivity.

General information

Color	Silver Black
Finish	Foil
Material	Polyurethane (PUR)
Shape	Circle Rectangle
Length	1200 mm 2000 mm
Width	1000 mm 1200 mm

Uniclass	Pr_25_57_06_71 Resilient layer insulationPrimary
CAWS	U90/490 Site-applied insulation to ductwork S90/570 Insulation to pipework

Specification data - Resilient layer insulation

Classification data
Material	A four-layer acoustic pipe insulation made of two polyurethane foam isolation layers separated by a heavy mass layer. A four-layer acoustic pipe insulation made of two polyurethane foam isolation layers separated by acoustic grade lead. A four-layer acoustic pipe insulation made of two polyurethane foam isolation layers separated by polymeric barrier.
Thickness	- Manufacturer guidance Three thicknesses of acoustic spacer layers available; consult manufacturer for more details and insert requirements.
Sound insulation rating	- Manufacturer guidance Consult manufacturer's literature for more details and insert requirements.
Face finish	Class 0 reinforced foil.
Dimensions	1200 x 1000 mm. 2000 x 1200 mm.
