SUNTUF® Stadia
Compare variants

SUNTUF® Stadia

Palram Europe Ltd Variant:
Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

Solid profiled polycarbonate system.

Jump to:
+44 (0)1302 360161 www.palram.com

Application

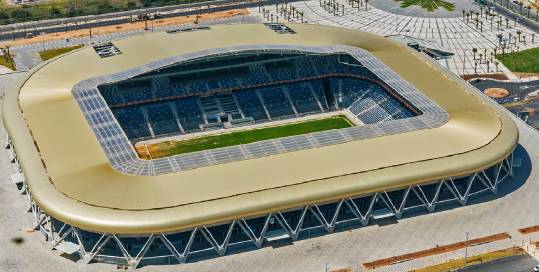

  • Stadiums and arenas.
  • Concert halls.
  • Banquet halls.
  • Open markets.
  • Large commercial and logistic facilities.
  • Covered parking spaces.

Description

SUNTUF Stadia is robust and durable polycarbonate panel system that is specifically designed for roofs with large spans.


While other translucent cladding materials require supporting substructure, SUNTUF Stadia can be installed directly on the main structure. By using SUNTUF Stadia you can save on the metal structure and save even more on installation labor.


SUNTUF Stadia provides excellent light transmission, impact resistance, flexibility and load capacity. The system is lightweight and very easy to fabricate and install. SUNTUF Stadia is perfectly suited for large roofs such as sports stadia and arenas, concert halls, and logistic centers.


Features and benefits:

  • Installation over large spans.
  • Excellent light transmission and transparency.
  • Impressive load capacity.
  • Lightweight and flexible.
  • Easy to cut and drill.
  • Simple and fast installation.
  • Allows free expansion and contraction.
  • Integrated UV protection.
  • SolarSmart™ cool light colors.

General information

Color

Clear

Bronze

Grey

White

Green

Show more

Material

Polycarbonate

Size

Overall width x length.

1100 x 1500–11600 mm

Uniclass 2015

Pr_25_71_63_65 Polycarbonate profiled sheetsPrimary

CAWS

B91/330 Canopy

B91/335 Covered walkway

B91/345 Greenhouse/ Glasshouse

H32/120 Plastics

Specification data - Polycarbonate profiled sheets Enhanced data

Performance requirements

-

Reaction to fire

To BS EN 13501, B,s1,d0.

Light transmission

90%.

Thickness (nominal)

3 mm.

Profile

322/96 mm.

Length

1.5–11.6 m.

Cover width

966 mm.

Colour

Clear.

Density

Test method ASTDM D792.

1.2g/cm³.

Elongation

To ASTDM D638.

7%.

10 mm/min.

Flexural strength

Test method ASTDM D790.

93 MPa.

1—3 mm/min.

Modulus of elasticity

Test method ASTDM D638.

2300 MPa.

10 mm/min.

Service temperature range

-50 to +100°C (long term), -50 to +120 (short term).

TensileStrength

Test method ASTDM D638.

62 MPa at yield, 65 MPa at break.

10 mm/min.

ThermalConductivity

Test method ASTDM D177.

0.21 W/mK.

ShadingCoefficient

1.00.

Solar heat gain coefficient

0.87.

Literature

SUNTUF Stadia

SUNTUF Stadia

Third party certifications

  • ISO: 9001 2008
  • ISO: 14001:2004
  • BS EN: 13501 B-s1-d0
  • REACH compliant
  • RoHS compliant
