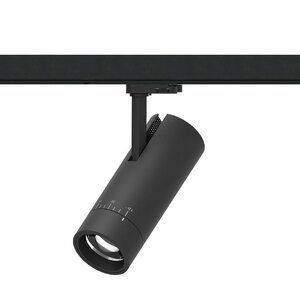

Suna Zoom Track Spotlight
Application

Suitable for contemporary office lighting or display lighting in museums, retail or hotels.

Description

Tubular adjustable LED track spotlight.


Features and benefits:

  • Installed at a 90° angle with 355° rotation available.
  • Comes with the Nordic 3-Phase Track Global adapter allowing easy, seamless installation across many different surfaces when accompanied by track.
  • Internal ballasts or drivers are supplied.

General information

Finish

Polyester powder coat

Material

Aluminium Die Cast with LEDs

Shape

Tubular

Size

85 x 225 mm

Uniclass 2015

Pr_70_70_48_85 Surface luminairesPrimary

CAWS

V90/45 Luminaires

V90/510 Luminaires

Specification data - Surface luminaires Enhanced data

Standard

Directive 2004/108/EC - EMC.

Directive 2006/95/EC - Low Voltage.

Regulation 1907/2006 - REACH.

Directive 2010/30/EC - Labelling.

Directive 2011/65/EC - RoHS.

Directive 2012/19/EC - WEEE.

Third-party certification

Photometrics.

Luminaire description

Slim, tracking, tubular LED lighting.

Classification

-

Electric shock

To BS EN 60598-1, Class II.

Ingress protection (minimum)

To BS EN 60529, IP20.

Suitability for direct mounting on normally flammable surfaces

Not suitable for direct mounting on normally flammable surfaces.

Circumstances of use

Normal.

Rated maximum ambient temperature

35°C.

Supply circuit conductor connections

Global track connector.

Nominal voltage

230 V.

Luminaire power factor

0.9.

LED luminaires

-

Initial LED luminaire efficacy (minimum)

74 lm/W.

Wattage

29 W/ 1800- 2150 lm.

Colour temperature

3000K.

Colour rendering index (Ra)

90.

Beam angle

15°–60°.

Useful life

50 000 hours (L80B20).

Dimming protocol

DALI Dimming.

Non-dimming.

Standard.

Accessories

Track system

Product Reference

Suna Zoom - LED

Control gear position

Remote with Track Adaptor.

Optics

Lens.

Colour

Black.

Grey.

White.

Transverse

Meeting the Chartered Institution of Building Services Engineers (CIBSE), Society of Light and Lighting (SLL) and BCO Guide to Lighting Standards.

<19.

Longitudinal

<19.

Efficiency

96%.

Frequency

50–60 Hz.

Output direction

Direct.

Environmental information

Recyclability

Frame and packaging.

-

Recycled content

Aluminium and packaging.

-
