Suna Zoom Track Spotlight
Application

An ideal luminaire for contemporary office lighting or display lighting in museums, retail or hotels.

Description

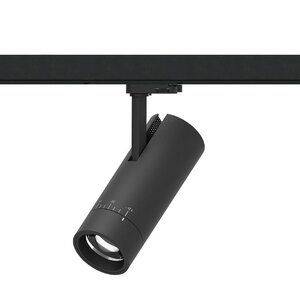

Tubular adjustable LED track spotlight.

Features and benefits:

  • Installed at a 90° angle with 355° rotation available.
  • Comes with the Nordic 3-Phase Track Global adapter allowing easy, seamless installation across many different surfaces when accompanied by track.
  • Internal ballasts or drivers are supplied.

Application:

An ideal luminaire for contemporary office lighting or display lighting in museums, retail or hotels.

General information

Size

85 x 225 mm

Features

Comes with the Nordic 3-Phase Track Global adapter allowing easy, seamless installation across many different surfaces when accompanied by track

Finish

Polyester powder coat

Material

Aluminium Die Cast with LEDs

Shape

Tubular

Uniclass 2015

Pr_70_70_48_85 Surface luminairesPrimary

CAWS

V90/45 Luminaires

V90/510 Luminaires

Specification data - Surface luminaires

Product Reference

Suna Zoom - LED

Standard

Directive 2004/108/EC - EMC

Directive 2006/95/EC - Low Voltage

Regulation 1907/2006 - REACH

Directive 2010/30/EC - Labelling

Directive 2011/65/EC - RoHS

Directive 2012/19/EC - WEEE

Third-party certification

Photometrics

Luminaire description

Slim, tracking, tubular LED lighting

Classification

-

Electric shock

Class II

Ingress protection (minimum)

IP20 Rated

Suitability for direct mounting on normally flammable surfaces

Not suitable for direct mounting on normally flammable surfaces

Circumstances of use

Normal use

Rated maximum ambient temperature

35°C

Control gear position

Remote with Track Adaptor

Supply circuit conductor connections

Global track connector

Nominal voltage

230 V

Luminaire power factor

0.9

LED luminaires

-

Initial LED luminaire efficacy (minimum)

74 Lm/ W

Wattage

29 W/ 1800- 2150 lm

Colour temperature

3000K

Colour rendering index (Ra)

90

Beam angle

15°- 60°

Useful life

50 000 hours (L80B20)

Dimming protocol

DALI Dimming

Non-dimming

Standard.

Accessories

Track system

Size

85 x 225 mm

Optics

Lens

Colour

Black

Grey

White

Unified glare rating

-

Transverse

<19, meeting the Chartered Institution of Building Services Engineers (CIBSE), Society of Light and Lighting (SLL) and BCO Guide to Lighting Standards

Longitudinal

<19

Driver

-

Efficiency

96%

Frequency

50-60 Hz

Output direction

Direct

Standard product features

Colour:

Available in three standard colours.

Features:

Comes with the Nordic 3-Phase Track Global adapter allowing easy, seamless installation across many different surfaces when accompanied by track.

Finish:

Polyester powder coat.

Material:

Aluminium Die Cast with LEDs.

Shape:

Tubular.

Size:

85 x 225 mm.

Warranty:

Two-year warranty.

Recycled content:

Aluminium and packaging.

Recyclability:

Frame and packaging.

Country of origin:

UK.

Environmental information

Recyclability

Frame and packaging

Recycled content

Aluminium and packaging
