Verified by manufacturer 3 months ago
79210
M1 emission classification
Certificate type
EPD
Certificate type
Carpet tiles.

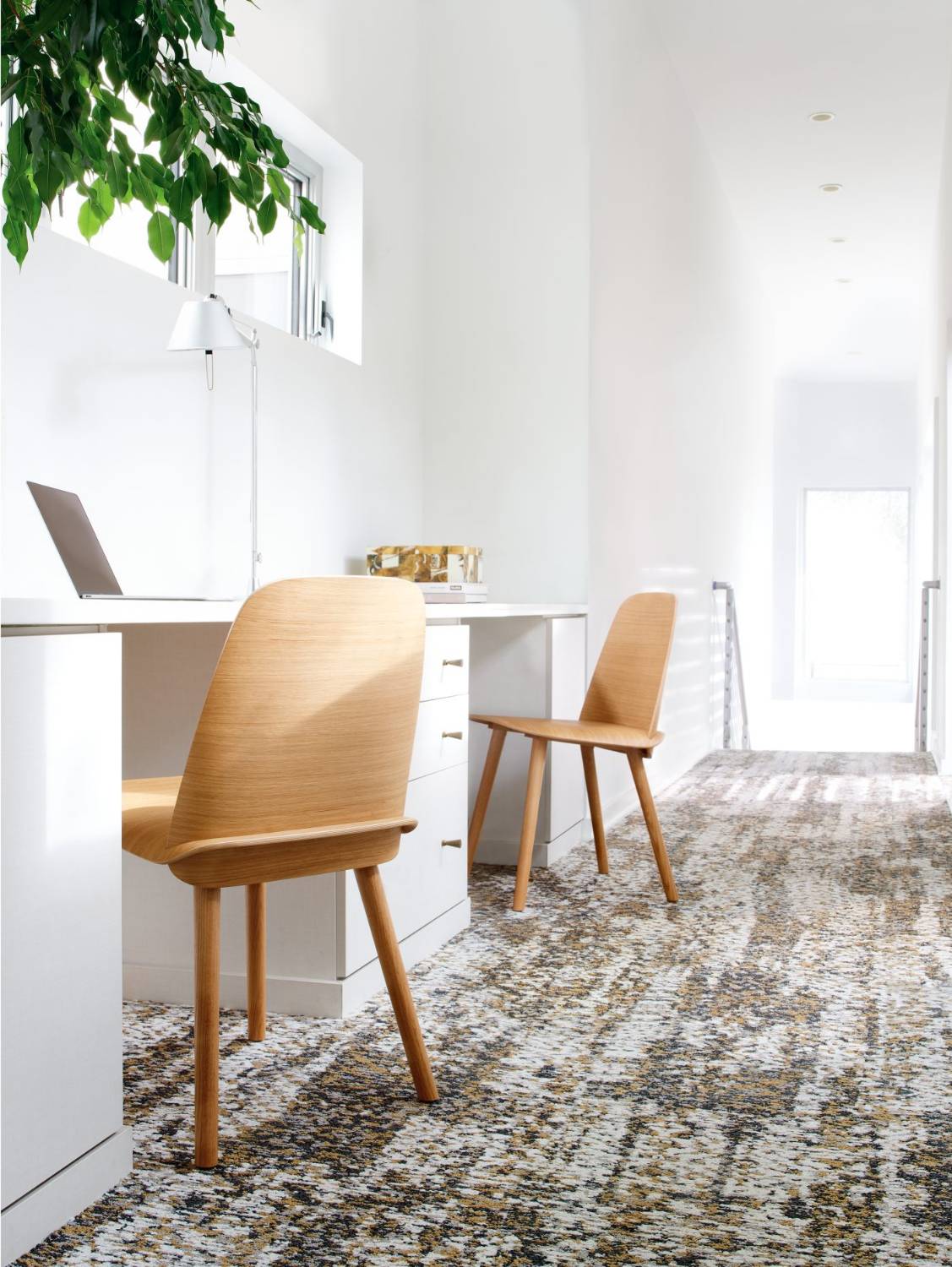

Suitable for workspaces and gathering places that require a sophisticated formality yet embrace an atmosphere of ease and welcome.
Recommended installation methods:
Suited draws inspiration from textiles that are closely associated with comfort yet have a timeless elegance. Manufactured in the UK.
Features and benefits:
Color | Black Blue Grey White |
Material | Nylon |
Shape | Rectangle |
Length | 1000 mm |
Width | 500 mm |
Height | 7.9 mm |
Warranty description | 15 year Guidance for specification option: Commercial limited warranty. |
Uniclass | |
CAWS | M50/15 Carpet tiling M50/130 Carpet tiling |
Product range |
Style | Tufted 1/10" / 39.4 per 100 mm. |
Material | Eco solution Q® polyamide 6. |
Classification | |
Standard | ISO 2424. |
Third-party certification | Cradle to Cradle: Bronze. Indoor air quality: A+. |
Level of use class | To BS EN 1307, class 33. |
Luxury rating class | LC1. |
Recycled content | 5%.Guidance for specification option: (Pre-Consumer 5%, Post-Consumer 0%) |
Size | 1000 x 500 mm. |
Colour and pattern | Saffron. |
Primary backing | PET non-woven. |
Secondary backing | TaskWorx® polymer modified bitumen. |
Mass | 949 g/m² (nominal total pile mass). |
Dye method | 100% solution dyed. |
Total thickness | 7.9 mm. |
Pile density | To ISO 8543, 0.129 g/cm³. |
Dimensional stability | To EN 986, ≤0.2%. |
Sound insulation | To ISO 10140, 24 dB. |
Sound absorption | To ISO 354/11654, 0.20 αw, Class E. |
Thermal resistance | 0.090 m² K/W. |
Colour fastness | >6. |
FlammabilityRating | To EN 13501-1, Bfl-S1 (adhered testing). |
Castor chair rating | ≥2.4. |
Light reflectance | 20.9. |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | Guidance for specification option: re[TURN] TakeBack scheme. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 5 % Guidance for specification option: pre-consumer |
