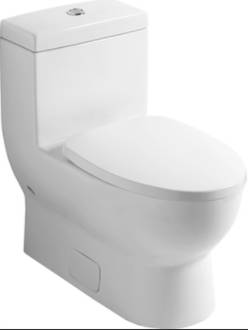

Subway One-piece WC 6616AS
Verified by manufacturer 9 months ago
One-piece toilet.
Application
Suitable for combined WC-suite.
Description
One-piece toilet.
Features and benefits:
- Sanitary ceramics.
- Consisting of Siphonic WC, floor-standing, vertical outlet, concealed trapway, preferred height 12" (305mm) rough-in Integral cistern with Duo flush mechanism with push button in chrome, standard bottom inlet, WC-seat and cover with QuickRelease and SoftClosing hinges 9M30 S1 01, Fastening set.
- LEED 4.
- European water label 3,375 L.
- Vertical outlet.
General information
Color | White |
Material | Ceramic Guidance for specification option: Sanitary ceramics |
Shape | Oval |
Width | 380 mm |
Uniclass | |
CAWS | N13/10 WC pans and flushing arrangements N13/300 WCs and cisterns |
Specification data - WC suites
Standards | |
Cisterns | To BS EN 997. |
Pans | To BS EN 997. |
Form | Floor-standing, back to wall. |
Materials | |
Body | Ceramic.Guidance for specification option: Sanitary ceramics. |
Finish and colour | White. |
Sizes | |
Cistern capacity | 4/6 L dual flush. |
Pan height | 400 mm. |
Integral accessories | Toilet seat and cover (9M30S1). |
Weight | 60.4 kg. |
Outlet | Vertical. |
Width | 380 mm. |
Depth | 730 mm. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 SketchUp | - | 1 |
 ARCHICAD | - | 1 |
 Revit | - | 1 |
 IFC | - | 1 |
 3Ds Max | - | 1 |
 OBJ | - | 1 |
