NBS Source
I'm a manufacturer

Application

Suitable for combined WC-suite

Description

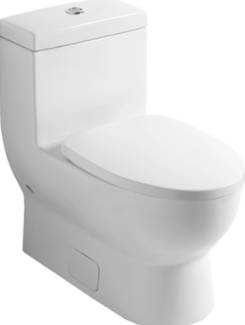

One-piece toilet.


Features and benefits:

  • Sanitary ceramics.
  • Consisting of Siphonic WC, floor-standing, vertical outlet, concealed trapway, preferred height 12" (305 mm) rough-in Integral cistern with Duo flush mechanism with push button in chrome, standard bottom inlet, fastening set.
  • European Water Label 3.375 L.
  • LEED 4
  • Vertical outlet.

General information

Color

White

Material

Ceramic

Guidance for specification option:

Sanitary ceramics

Shape

Oval

Width

380 mm

Uniclass

Pr_40_20_93_97 WC suitesPrimary

CAWS

N13/10 WC pans and flushing arrangements

N13/300 WCs and cisterns

Specification data - WC suites

Form

Floor-standing, back to wall.

Materials

-

Body

Ceramic.

Guidance for specification option:

Sanitary ceramics.

Finish and colour

White.

Sizes

-

Cistern capacity

4/6 L dual flush.

Pan height

400 mm.

Weight

60.4 kg.

Outlet

Vertical.

Width

380 mm.

Depth

730 mm.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
-

1

SketchUp
-

1

Revit
-

1

OBJ
-

1

ARCHICAD
-

1

3Ds Max
-

1
