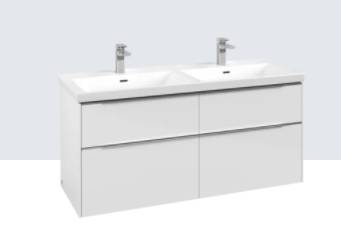

Subway 3.0 Vanity Unit C56800
Verified by manufacturer 8 months ago
C56800VN
C56800VN
Vanity unit, four pull out compartments and two small accessory dishes.
Application
Suitable for selected double vanity washbasins.
Description
Wall-mounted vanity unit with four pull out compartments that have non-slip mats and two small accessory dishes. Designed for a fully integrated washbasin. The carcass is available in a range of colours.
Features and benefits:
- Fastening set included.
- Washbasin ordered separately.
- Soft closing.
- Part of the Subway 3.0 range.
- Integrated handles.
- Storage space under basins (extra height for large storage space).
General information
Color | Grey Guidance for specification option: Cashmere grey. Blue Guidance for specification option: Marine blue. White Guidance for specification option:
Black Guidance for specification option: Volcano black. Other Guidance for specification option:
|
Finish | Painted |
Material | Chipboard Guidance for specification option: Panels. Aluminium Guidance for specification option: Handle. |
Shape | Rectangle |
Size | Manufacturer guidanceHeight x width x depth. |
Length | 576 mm |
Width | 1272 mm |
Height | 462 mm |
Uniclass | |
CAWS | N10/145 Vanity and washroom furniture |
Specification data - Vanity units
Form | Wall-mounted. |
Materials | |
Carcass | |
Frame and panels | Chipboard. |
Finish and colour | Cashmere grey. |
Worktop | |
Material | Chipboard. |
Finish and colour | Cashmere grey. |
Size (nominal) | 576 x 1272 x 462 mm.Manufacturer guidanceHeight x width x depth. |
Handle finish | Aluminium, gloss. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 3Ds Max | - | 1 |
 IFC | - | 1 |
 SketchUp | - | 1 |
 Revit | - | 1 |
 OBJ | - | 1 |
 ARCHICAD | - | 1 |
