Verified by manufacturer over a year ago
C59102VN

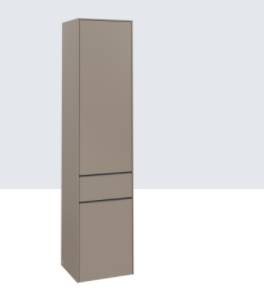

Tall cabinet, one pull-out compartment and two doors.
Wall-mounted tall cabinet with two right-hinged doors. The carcass is available in a range of colours.
Features and benefits:
Color | Grey Guidance for specification option: Cashmere grey. Blue Guidance for specification option: Marine blue. White Guidance for specification option:
 Black Guidance for specification option: Volcano black. Other Guidance for specification option:
  |
Finish | Painted  |
Material | Chipboard Guidance for specification option: Panels. Aluminium Guidance for specification option: Handle.  |
Shape | Rectangle  |
Size | Manufacturer guidanceHeight x width x depth.  |
Length | 1710 mm  |
Width | 400 mm  |
Height | 346 mm  |
Uniclass | |
CAWS | N10/145 Vanity and washroom furniture  |
SKU Code | C59102VN, C59102VR, C59102VQ, C59102VM, C59102VH, C59102VE, C59102VJ, C59102RH, C59102VF, C59102RK, C59102VL  |
Classification data | |
Form | Wall-mounted.  |
Carcass | |
Material | Chipboard.  |
Finish and colour | Cashmere grey.  |
Size (nominal) | 1710 x 400 x 346 mm. Manufacturer guidanceHeight x width x depth.  |
Shelves | |
Arrangement | One, fixed; Three, adjustable.  |
Material | Glass.  |
Finish and colour | Clear.  |
Doors | |
Arrangement | Double, right-hung.  |
Material | Chipboard.  |
Finish and colour | Cashmere grey.  |
Hinges | Soft closing.  |
Handles | Integrated.  |
Handle finish | Aluminium, monochrome. Guidance for specification option: Matt paint.  |
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
