Application

For bathrooms.


Note: There is no space for a tap hole behind the overflow.

Description

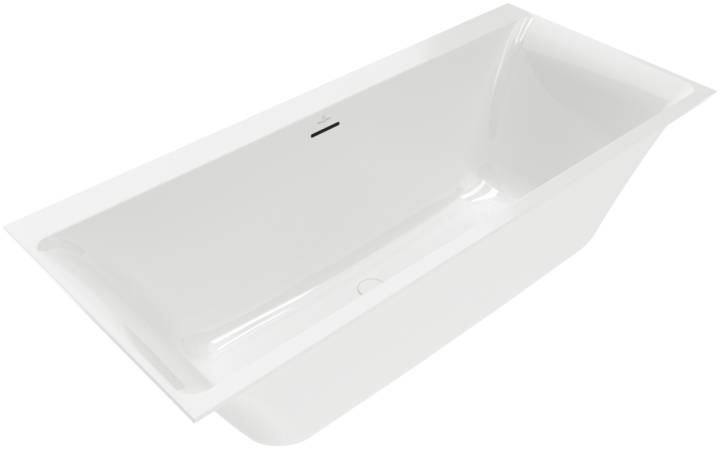

Rectangular bath.


Features and benefits:

  • Duo, for two people.
  • Including SilentFlow bath filler.
  • Matching outlet and overflow is supplied as standard (chrome).
  • The outlet cover matches the colour of the bath.
  • Overflow in Black Matt or Stone White.

General information

Color

White

Finish

Gloss

Matt

Material

Quaryl®

Shape

Rectangle

Length

1700 mm

Width

480 mm

Uniclass

Pr_40_20_06_08 BathsPrimary

CAWS

N13/355 Baths

N13/35 Baths

Specification data - Baths

Form

Rectangular.

Materials

Quaryl®.

Colour

Alpin White.

Stone White.

Size

1700 x 750 x 480 mm.

Volume to overflow (maximum)

183 L.

Water supply, overflow and waste holes

-

Water supply

No tap holes.

Overflow

Black Matt.

Stone White.

Waste

Central waste outlet.

Integral accessories

Matching outlet and overflow.

Anti-slip finish

Class A.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
OBJ
-

1

SketchUp
-

1

3Ds Max
-

1

ARCHICAD
-

1

Revit
-

1

IFC
-

1
