Subway 3.0 Mirror A46313
Verified by manufacturer 8 months ago

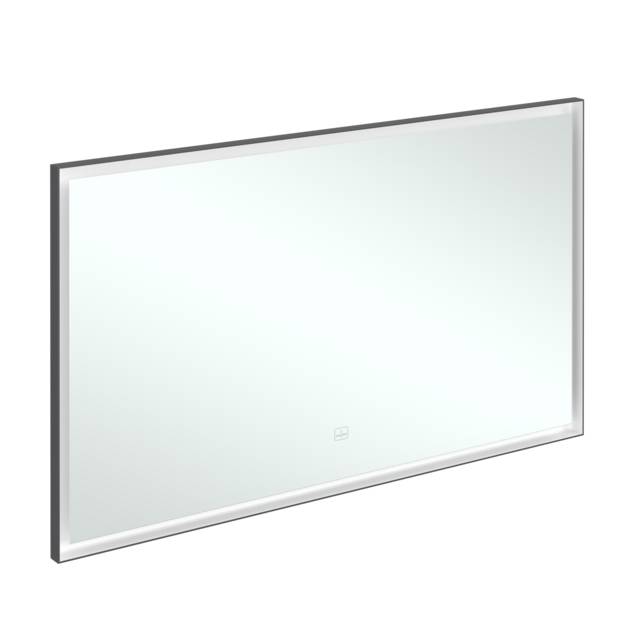

A wall mounted mirror, with lighting.
Application
Suitable for use in bathrooms.
Description
A wall mounted mirror, with lighting.
Features and benefits:
- Fastening set included.
- Built-in LED light with sensor dimmer.
- Smart home compatible.
After retrofitting with the ZigBee Home Automation Kit C004 00, lighting can be controlled via your Smart Home environment. The illuminated mirror can be switched on and off via the sensor switch.
The mirror can be connected via the ZigBee Home Automation Standard with all hubs/gateways that use this transmission standard, such as Philips Hue Bridge or suitable Amazon Echo models.
General information
Color | White Black Manufacturer guidanceBicolour. |
Finish | Matt |
Material | Glass Aluminium |
Shape | Rectangle |
Width | 750 mm |
Height | 1300 mm |
Uniclass | Pr_25_71_53_82 Small mirrors |
CAWS | N13/63 Glass mirrors N13/438 Mirrors |
Specification data - Bathroom mirrors
Manufacturer | Villeroy and Boch. |
Form | Wall mounted. |
Materials | |
Frame | Aluminium. |
Glazing | Toughened glass. |
Integral accessories | None.ZigBee Home Automation Kit C004 00. |
Dimensions | 1300 x 750 x 47.5 mm. Manufacturer guidanceWidth x height x depth. |
Weight | 14.7 kg. |
Power supply | Mains-operated. |
LED lighting | 1 x LED (35.04 W). Manufacturer guidance
|
Colour | 2700 K (warm white) to 6500 K (daylight white). |
Ingress protection | 44. |
Control method | Sensor dimmer. |
Colour | Matt white. Matt black. Manufacturer guidanceBicolour. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 3Ds Max | - | 1 |
 IFC | - | 1 |
 OBJ | - | 1 |
 ARCHICAD | - | 1 |
 SketchUp | - | 1 |
