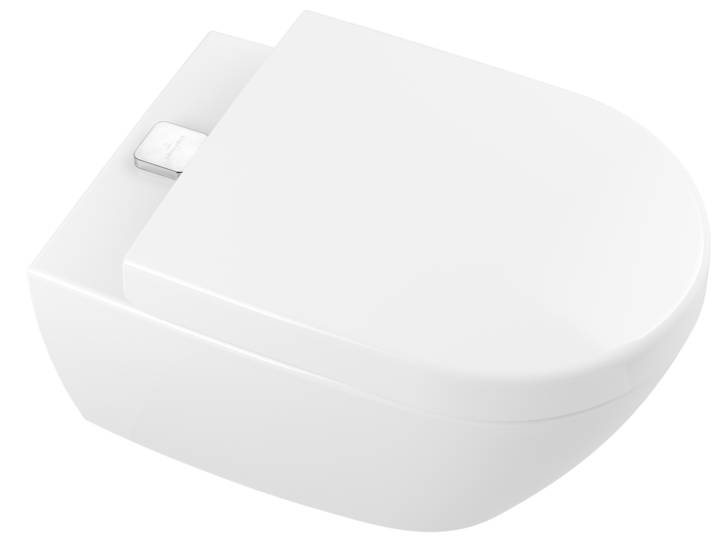

Subway 2.0 Washdown WC Wall-mounted 5614A1

Verified by manufacturer 9 months ago

Villeroy & Boch AG

Rimless, washdown toilet.

Jump to:
BOS
+49 (0) 6864 81 1500 Website

Application

Suitable for washdown toilet.

Description

Compact, washdown toilet.


Features and benefits:

  • DirectFlush, ViFresh.
  • Sanitary ceramics.
  • Not suitable for installation with flush valves.
  • incl. ViFresh Technology, comprises two holders (one for rim-block, one for gel cleaner) and two screw-on lids (one white, one chrome), incl. fastening set "SupraFix 3.0".
  • Complies with EN 997.
  • LEED 4.
  • European water label 3,375 L.
  • With water-saving AQUAREDUCT® system: flush volume 3/ 4.5 litres.
  • Please order toilet seat separately.

General information

Color

White

Material

Ceramic

Guidance for specification option:

Sanitary ceramics

Shape

Oval

Width

370 mm

Uniclass

Pr_40_20_93_94 WC pansPrimary

CAWS

N13/10 WC pans and flushing arrangements

N13/300 WCs and cisterns

Specification data - WC pans

Standard

To BS EN 997.

Form

Wall-mounted, washdown.

Pan height

415 mm.

Materials

-

Body

Ceramic.

Guidance for specification option:

Sanitary ceramics.

Finish and colour

White.

Water supply, outlet and seat holes

-

Water supply

Back inlet.

Outlet

Horizontal.

Integral accessories

Seat (9M7461).

Toilet seat and cover (9M68Q1).

Toilet seat and cover SlimSeat (9M78S1).

Toilet seat and cover (9M68S1).

Weight

25.2 kg.

Width

370 mm.

Depth

560 mm.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
SketchUp
-

1

OBJ
-

1

IFC
-

1

ARCHICAD
-

1

Revit
-

1

3Ds Max
-

1
