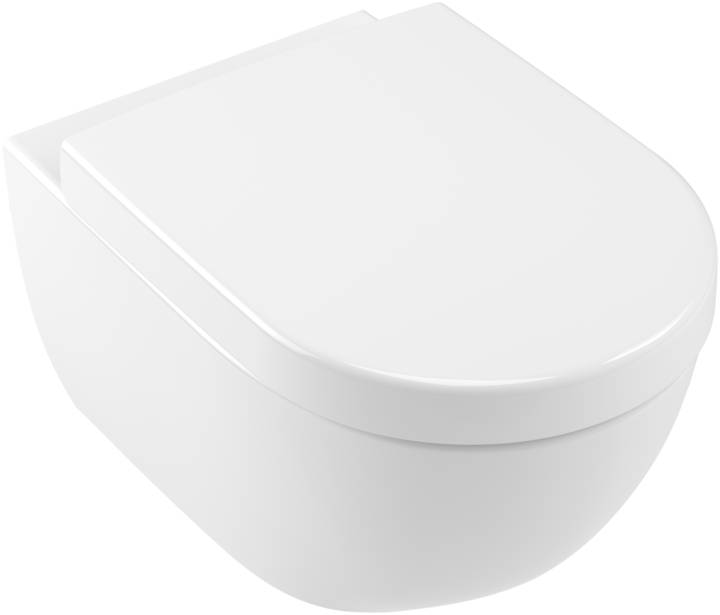

Subway 2.0 Washdown WC Wall-mounted 560010
Verified by manufacturer 8 months ago
Rimless, washdown toilet.
Application
Suitable for washdown toilet.
Description
Rimless, washdown toilet.
Features and benefits:
- Sanitary ceramics.
- Includes fastening set "SupraFix 3.0".
- Complies with EN 997.
- LEED 4.
- European water label 3,375 L.
- With water-saving AQUAREDUCT® system: flush volume 3/ 4.5 litres.
- Please order toilet seat separately.
General information
Color | White |
Material | Ceramic Guidance for specification option: Sanitary ceramics |
Shape | Oval |
Width | 370 mm |
Uniclass | |
CAWS | N13/10 WC pans and flushing arrangements N13/300 WCs and cisterns |
Specification data - WC pans
Standard | To BS EN 997. |
Form | Wall-mounted, washdown. |
Pan height | 410 mm. |
Materials | |
Body | Ceramic.Guidance for specification option: Sanitary ceramics. |
Finish and colour | White. |
Water supply, outlet and seat holes | |
Water supply | Back inlet. |
Outlet | Horizontal. |
Integral accessories | Seat (9M7461).Toilet seat and cover (9M68Q1).Toilet seat and cover SlimSeat (9M78S1).Toilet seat and cover (9M68S1). |
Weight | 25.95 kg. |
Width | 370 mm. |
Depth | 560 mm. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 3Ds Max | - | 1 |
 SketchUp | - | 1 |
 IFC | - | 1 |
 Revit | - | 1 |
 ARCHICAD | - | 1 |
 OBJ | - | 1 |
