STYLE Concealed Valve Doc M Shower Pack with Stainless Steel Concealed Fixing Grab Rails

Name: STYLE Concealed Valve Doc M Shower Pack with Stainless Steel Concealed Fixing Grab Rails
Brand: Fitzroy of London
SKU: 5mWN7c78MFxrL4GXraVapM

Verified by manufacturer 2 months ago

230403/DB

Fitzroy of London

Product certifications:

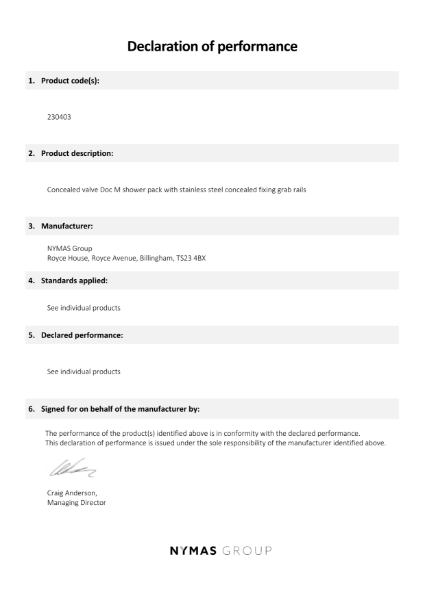

DoP
Certificate type
WRAS
Certificate type

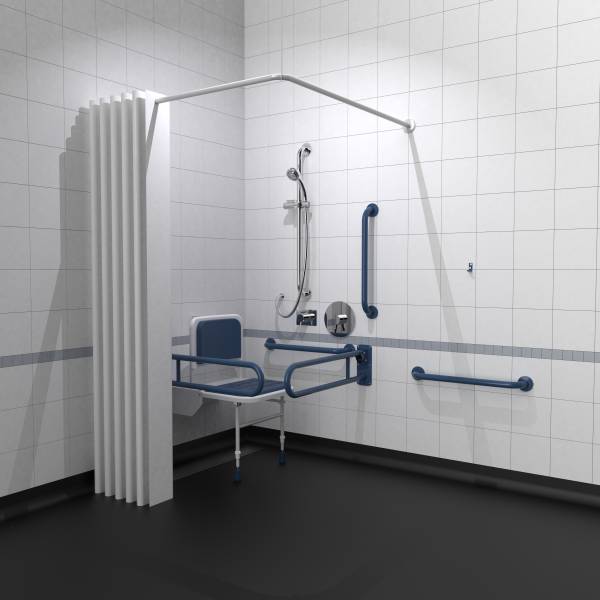

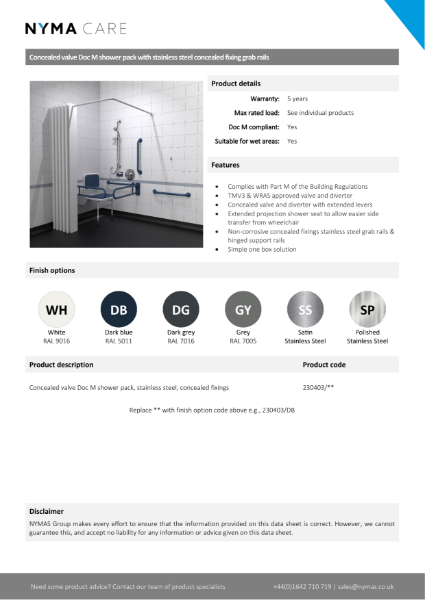

Concealed valve Doc M shower pack with stainless steel concealed fixing grab rails.

Jump to:

BOS

+44 203 7736 1050 Website

Application

Suitable for accessible shower rooms and wet areas.

Description

Doc M compliant concealed valve shower pack with stainless steel concealed fixing grab rails.

Features and benefits:

Concealed valve and diverter with extended levers.
Extended projection shower seat to allow easier side transfer from wheelchair.
Non-corrosive concealed fixings stainless steel grab rails and hinged support rails.
Simple one box solution.
Complies with Part M of the Building Regulations.
TMV3 and WRAS approved valve and diverter.

Pack contents:

Doc M shower seat.
Concealed TMV3 Doc M shower valve.
Concealed Doc M shower diverter.
Antivandal overhead shower head.
Shower head and hose.
600 mm stainless steel grab rails with concealed fixings (three).
450 mm stainless steel grab rail with concealed fixings.
900 mm stainless steel grab rail with concealed fixings.
800 mm stainless steel hinged support rails (two).
1200 x 1200 mm stainless steel shower curtain rail.
Weighted shower curtains (two).
Sliding shower head bracket.
Single robe hook.

General information

Color	White Blue Grey Silver
Finish	Polished Satin Chrome
Material	Stainless steel Plastic Aluminium Polyurethane (PUR) Polyester
Shape	Other
Length	Bespoke
Width	Bespoke
Height	Bespoke
Warranty description	- Manufacturer guidance Consult manufacturer's literature for individual product warranties.

Uniclass	Pr_40_20_60_01 Accessible shower equipment packagesPrimary
CAWS	N13/14 Unisex accessible shower room equipment packages (Document M) N13/312 Unisex accessible shower room equipment packages (Document M)

SKU Code	230403

Specification data - Accessible shower equipment packages

Classification data
Standard	In accordance with Approved Document M.
Form	Complete accessible shower Doc M package and fittings.
Transfer handing	Left-hand. Right-hand.
Material and colour	-
Seat	Plastics, dark blue. Plastics, grey.
Seat back	As Seat.
Shower curtains and rails	White stainless steel curtain rail with white polyester curtain. Satin stainless steel curtain rail with white polyester curtain. Polished stainless steel curtain rail with white polyester curtain.
Handrails	Coated stainless steel, dark blue.
Water supply fittings	-
Shower fittings	Shower head and hose with sliding shower head bracket. Concealed TMV3 shower valve and diverter with antivandal overhead shower head.
Finish	Chrome-plated.
Operating control	Lever and temperature ring.
Water supply temperature (maximum)	65°C.
Flow rate	8 l/min. at 5 bar.
Integral accessories	Single aluminium robe hook, white. Single aluminium robe hook, dark blue. Single aluminium robe hook, dark grey. Single aluminium robe hook, grey.

Sustainability data

Contains Red List materials	No
Country of material origin	- Manufacturer guidance Individual items within pack vary in source
Country of product manufacture	- Manufacturer guidance Individual items within pack vary in source
Material	Stainless steel Plastic Aluminium Polyurethane (PUR) Polyester
Recyclability	Metal items recyclable Guidance for specification option: Some items within pack check local disposal guidelines
