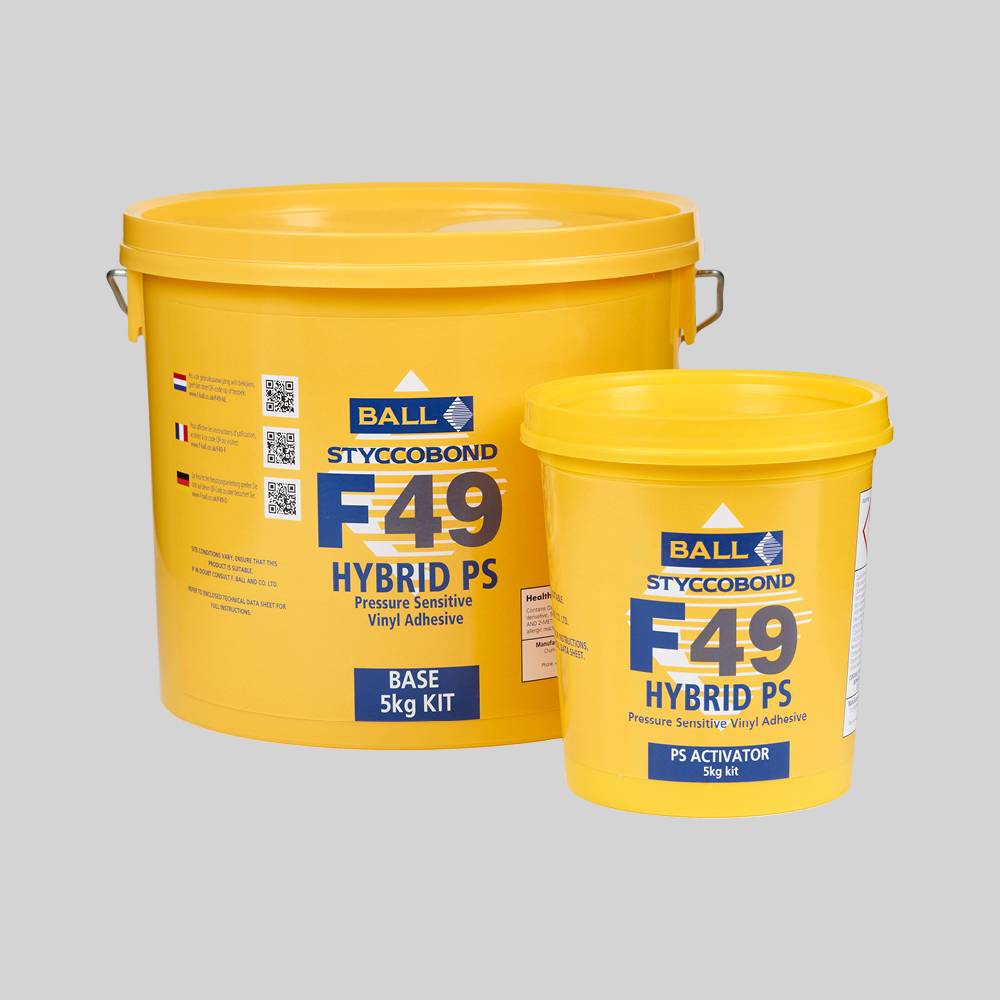

Styccobond F49 Hybrid PS - Flooring Adhesive

Verified by manufacturer 5 months ago

Ball, F and Co Ltd Third party certifications:
  • ISO 45001 Health and Safety Management

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

Pressure Sensitive Adhesive.

Jump to:
BOS
+44 (0)1538 361633 Website

Application

Suitable for:

  • Vinyl floorcoverings.
  • Skirting, coving and capping.
  • PVC edgings.
  • Use in conservatories, areas where floor to ceiling windows are installed and other areas where floorcoverings have to be tolerant of extreme temperature variations.
  • Application to structurally sound, smooth, dry subfloors of concrete and sand/cement screed, calcium sulphate, STOPGAP smoothing underlayments and plywood.


Description

STYCCOBOND F49 HYBRID PS is a temperature tolerant, water-based pressure sensitive adhesive.

The mixing of the two unique components maximises the high strength of the adhesive and makes it suitable for use in service conditions where temperatures can fluctuate between -200°C and +600°C, in accordance with floorcovering manufacturers’ recommendations.


Features and benefits:

  • It gives a strong initial tack and high bond strength.
  • It is protected against bio-degradation and is suitable for use over normal underfloor heating systems.
  • Viscous liquid consistency.
  • 4 hours open time.


STYCCOBOND F49 HYBRID PS provides an extremely strong water-resistant bond enabling application in areas subject to water/high humidity when used in conjunction with a suitable STOPGAP smoothing underlayment.

Outstanding plasticiser resistance ensures STYCCOBOND F49 HYBRID PS can be used for securing highly plasticised flooring accessories and trims.

The high final bond strength ensures optimum dimensional stability throughout the lifetime of the installation..

STYCCOBOND F49 HYBRID PS can be used for securing a wide range of PVC floorcoverings in both tile and sheet format. When installing sheet floorcoverings, install while the adhesive is wet; the subfloor must be absorbent to allow drying of the adhesive.

See the F. Ball Recommended Adhesives Guide for details of specific floorcoverings.

Sound flooring grade asphalt must be skimmed with a minimum of 3 mm and a maximum 6 mm of the appropriate STOPGAP smoothing underlayment.

STYCCOBOND F49 HYBRID PS can be applied directly to STOPGAP epoxy waterproof surface membranes and other non-absorbent subfloors where the surface finish is smooth enough to permit the installation of resilient floorcoverings.

On non-absorbent surfaces the adhesive should be allowed to dry to a clear, tacky consistency before installing the floorcovering.

For details on other subfloors contact manufacturers Technical Service Department.

General information

Color

Pink

Finish

Trowelled

Material

Other

Shape

Formless

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Lifetime

Uniclass

Pr_20_31_02_03 Acrylic and methacrylate adhesivesPrimary

CAWS

M50/10 Resilient floor tiling

M50/110 Resilient floor tiling

M50/150 Sheeting

M50/20 Sheeting

Specification data - Acrylic and methacrylate adhesives

Form

Two-component.

Open time (minimum)

4 hours.

Colour

Light pink.

Total VOCs (maximum)

0.

Execution

-

Manufacturer guidance

Trowelled - Consult manufacturer for details and insert requirements.

Reinforcement

Fibre reinforced.

Coverage

Up to 6 m² per kg using a STYCCOBOND FINE NOTCH (A1) trowel.

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

United Kingdom

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

0 kg CO₂ eq/unit

Self declared

Recyclability

Packaging partly

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit

Revit 2017

4

IFC
-

4

Third party certifications

ISO 45001 Health and Safety Management

ISO 45001 Health and Safety Management

ISO 45001:2018

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001:2015
