Structural Anchor - Industrial Roped Access / Abseil & Fall protection

Name: Structural Anchor - Industrial Roped Access / Abseil & Fall protection
Brand: Safety Fabrications Limited
SKU: 9XrWakUnDQXfbxsY6w2sUY

Verified by manufacturer 4 months ago

Safety Fabrications Limited

Third party certifications:

TUV - Safety and Quality Report
Certificate type
SATRA
Certificate type

Structural anchor posts for fall protection and abseil - Tested to BS 8610:2017 - UKCA / CE Manufactured.

Jump to:

BOS

+44 (0)1142852203 Website

Application

The Ascent Anchor Device is suitable:

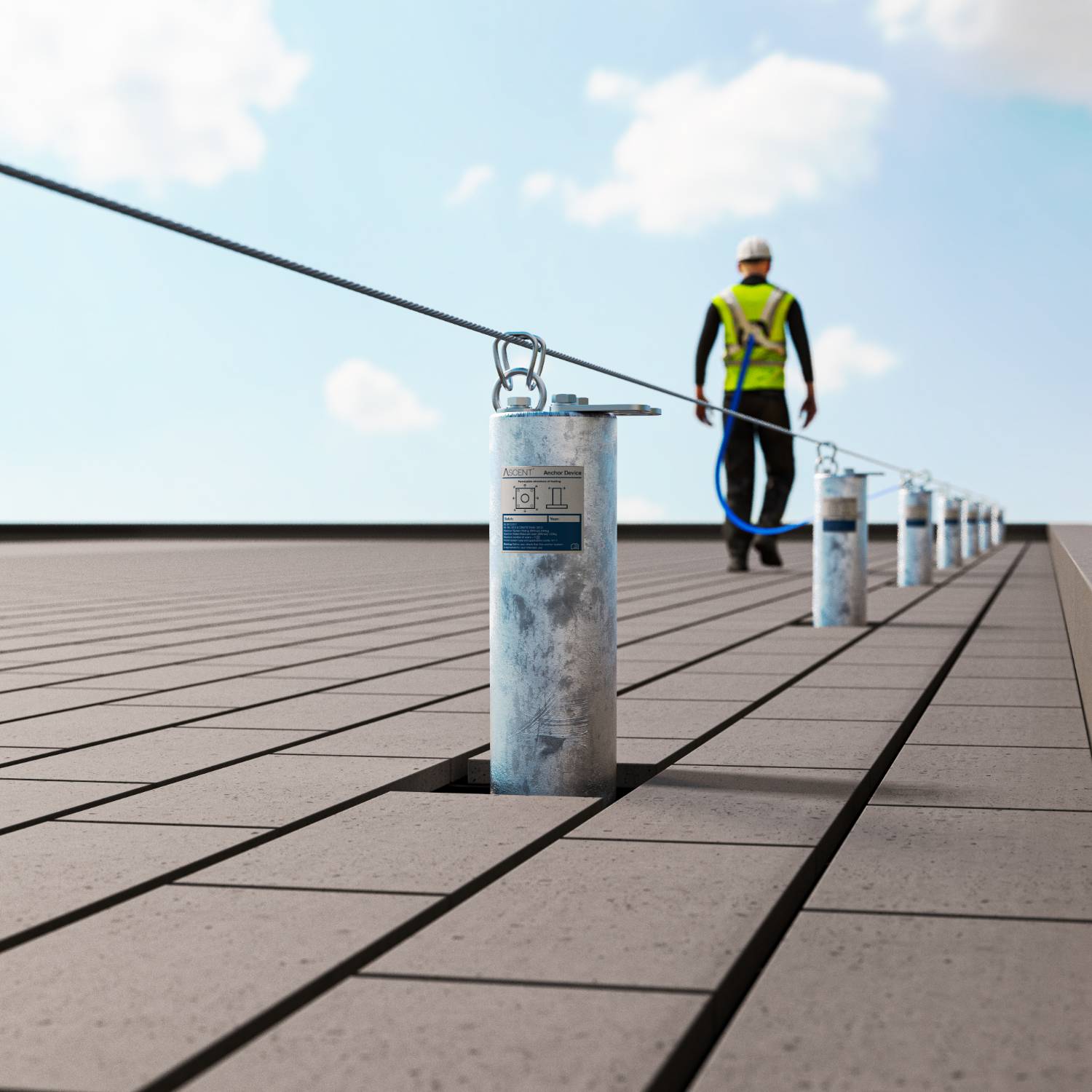

In conjunction with a cable based fall protection system conforming to EN 795 Class C.
As a stand-alone EN 795 Class A anchor device for individual fall protection.

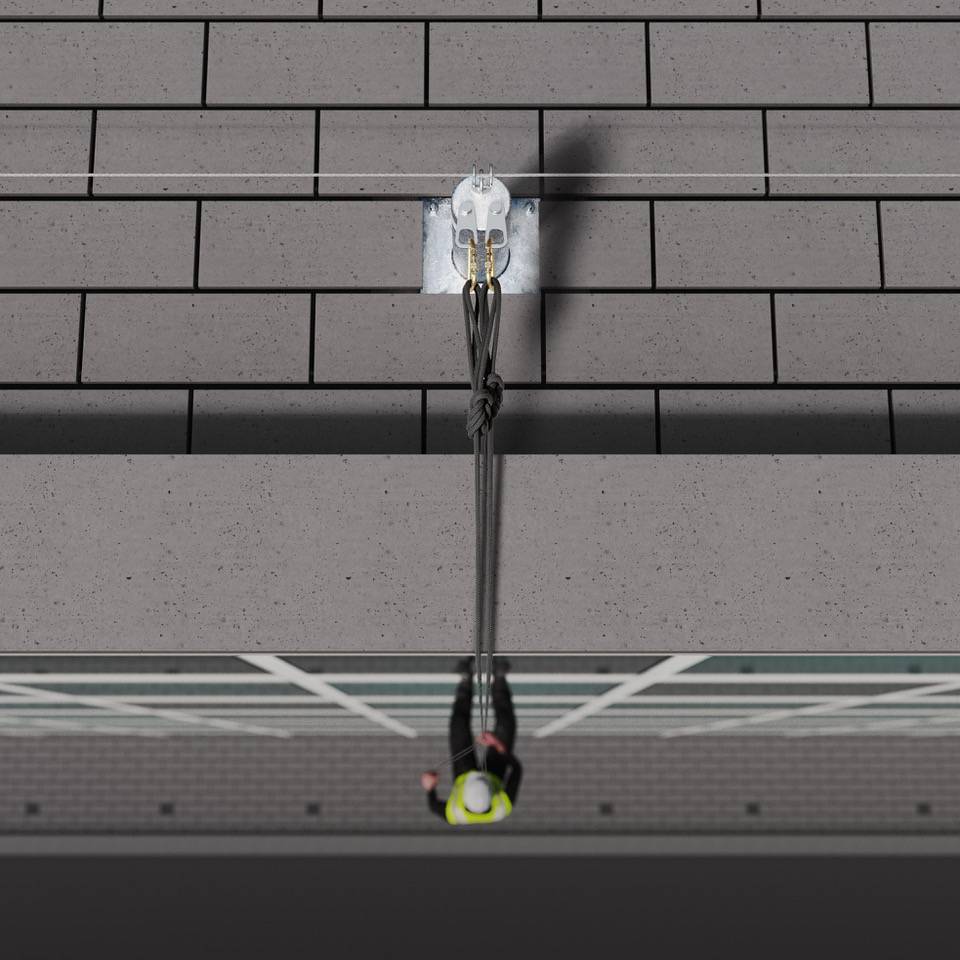

As an anchor device for industrial roped access to BS 8610:2017 (including rescue).

The Ascent Anchor Point is suitable:

As an anchor point for industrial roped access to BS 8610:2017 (including rescue).
As a stand-alone EN 795 Class A anchor point for individual fall protection.
On reinforced concrete roofs and is available in four heights: 200, 400, 600 and 800 mm to suit varying roof build ups.

Description

Structural anchor posts manufactured for fall protection and abseil tested in accordance with BS 8610:2017 manufactured to CE / UKCA manufacturing procedures from galvanized mild steel.

The Ascent Anchor Device is supplied with Three M12 threaded inserts in the top of the post. These inserts are designed and tested to receive anchor points for both fall protection and abseil.

For Fall Protection the M12 insert suits components supplied by the majority of the leading cable based engineered fall protection system suppliers. It is the responsibility of the system designer to ensure that the loads potentially generated by the system do not exceed the capacity of the anchor device.

Designed specifically for attachment by industrial rope access technicians. It is tested for use in both rope access and work positioning to BS 8610:2017 Class A3 and rescue – accompanied descent, remotely or self-operated – direct attachment and redirect attachment and evacuation Class A4, A5, A6 and A7.

Weathering Caps can also be supplied for our fall protection post.

Features and benefits:

Comprises standard posts: end, corner and intermediate anchor posts. Each is available in small (200 mm), medium (400 mm) and large (600 mm) and extra-large (800 mm).
Designed and tested in accordance with the requirements of BS 8610:2017.
Can be manufactured for attachment to a wide range of structural backgrounds: masonry, structural steelwork and structural timber.
Ascent Fall Protection Posts are manufactured from galvanised mild steel. The Posts are tested as a complete anchor system to reinforced concrete, but are typically supplied as a separate Anchor Device and Anchor Point (S) with the specialist installer providing the permanent fixing element suitable to the background to which the anchor device is to be affixed. All Ascent™ products have been approved through the necessary safety and structural calculation.
Fixings to structural background are not supplied.
All products are manufactured in accordance with BS EN ISO 3834-2:2005 and BS EN 1090-1:2009+A1:2011 and carry the CE Marking.

General information

Color	Grey
Finish	Galvanized
Material	Steel Guidance for specification option: Galvanised mild steel.
Shape	Other
Length	250 mm
Width	250 mm
Height	200 mm 400 mm 600 mm 800 mm
Warranty description	20 year Manufacturer guidance Consult manufacturer for terms & conditions of warranty

Uniclass	Pr_20_29_03_86 Structural anchorsPrimary
CAWS	N25/20 Single point anchorage devices N25/220 Single point anchorage devices

Specification data - Structural anchors

Anchor type	To BS EN 795, Type A, C.
Dimensions	200 x 250 x 250 mm. 400 x 250 x 250 mm. 600 x 250 x 250 mm. 800 x 250 x 250 mm. Manufacturer guidance Base plate hole and centre sizes: 200 x 200 mm at 20 mm diameter.
Material	Mild steel.
Finish	Galvanized.

Type	Abseil Post. Guidance for specification option: Load capacity to 21 kN (BS 8610:2017). Corner Post. End Post. Intermediate Post.
Standards	To BS EN ISO 3834-2:2005 / BS EN 1090-1:2009 + A1:2011 and 2:2008 / BS 7985:2002 and BS 8610: 2017.

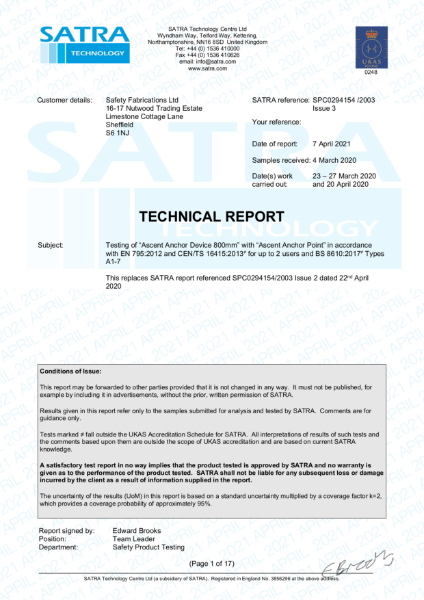

Third-party certification	CE marked and SATRA tested. Guidance for specification option: SATRA Tested SPC0294154 Issue 2 in accordance with EN 795:2012 and CEN/TS 16415:2013 for up to two users and BS 8610:2017 Types A1-7.
Accessories	Not required. D-ring. Anchor point. Guidance for specification option: Abseil anchor point.
Loading	25 kN (maximum tested).
Anchor fixing	M12. Guidance for specification option: Top anchor point fixing size.

Sustainability data

Contains Red List materials	No
Country of material origin	United Kingdom
Country of product manufacture	United Kingdom
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	1.37 kg CO₂ eq/kg Self declared
Recyclability	95
Recycled content As defined in clause 7.8 of BS EN ISO 14021	40 %
