StressPly® Signature Bitumen Flat Roof
Verified by manufacturer 22 days ago

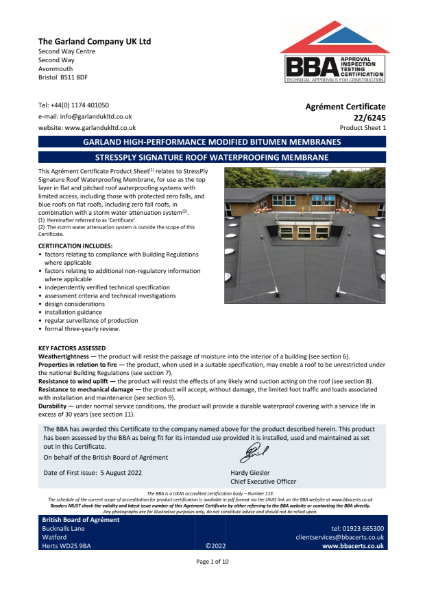

BBA Agrément Certificate
Certificate type
EPD
Certificate type
Superior modified bitumen membrane.
Application
StressPly Signature is suitable for the most demanding of environments. Suitable for use as a multi-ply modified bituminous waterproofing system for flat roof installation.
Description
StressPly Signature is a superior modified bitumen membrane. Formulated with a high percentage of SBS modifiers, StressPly Signature allows for easy application due to its low-melt properties and extreme cold bending flexibility, down to temperatures as low as -30°C.
Features and benefits:
- 30 year single-point guarantee.
- Superior tensile strength up to 1200 N/50 mm.
- Composite polyester and fibreglass reinforcement.
- Premium thickness membrane for ultimate protection.
System includes:
- StressPly Signature (cap sheet)
- Torch Flex Vapour Barrier
- SA Flex Vapour control layer (VCL)
- Torch Flex Ultra Vent
- Insul Bond
- Insul Loc
- Insul Pro
- Xtratherm-FRBGM
- tapered-roof-TR-MG
- Garla-Prime
- Quick-Prime
General information
Color | Black Other Manufacturer guidanceAs per manufacturer and includes charcoal. |
Finish | Textured Manufacturer guidanceAs per manufacturer and includes mineral slate. |
Material | Bitumen |
Length | 5000 mm |
Width | 1000 mm |
Warranty description | 30 year |
Uniclass | |
CAWS | J41/110 Built-up reinforced bitumen membrane warm deck roof covering J41/400 Built-up reinforced bitumen waterproof covering J41/10 Reinforced bitumen membrane warm deck roof covering |
Specification data - Reinforced bitumen membrane warm roof covering systems
Classification data | |
Preparation | |
Horizontal work | Garla-Prime. Quick-Prime. |
Skirtings and vertical work | Garla-Prime. Quick-Prime. |
Air and vapour control layer | |
Type | SA Flex VCL 3 mm x 10 x 1 m. Guidance for specification option:
Torch Flex Vapour Barrier. Guidance for specification option:
|
Attachment | For lower side finishing with polymeric films: Propane-gas light flame. Guidance for specification option: Torch Flex Vapour Barrier. Silicone release film with self-adhesive elastomeric compound. Guidance for specification option: SA Flex Vapour Barrier. |
Insulation | |
Type | Xtratherm TR/MG Tapered Roof Board A60, 1200 x 1200 mm. Guidance for specification option: 30-50 mm. Xtratherm TR/MG Tapered Roof Board B60, 1200 x 1200 mm.. Guidance for specification option: 50-70 mm. Xtratherm TR/MG Tapered Roof Board C60, 1200 x 1200 mm. Guidance for specification option: 70-90 mm. Xtratherm TR/MG Tapered Roof Board D60, 1200 x 1200 mm. Guidance for specification option: 90-110 mm. Flat RoofBoard FR/BGM, 1200 x 600 mm. Guidance for specification option: Available in the following thicknesses: 25, 50, 60, 70, 80, 90, 100, 110, 120, 130, 140 mm. Insert requirements. |
Fixing | The specification for fixing Xtratherm roof boards will vary with the location, roof height/width and topographical data. |
Waterproof covering | |
First layer | |
Type | Torch Flex Ultra-Vent 3.5 mm x 8 x 1 m. Guidance for specification option:
|
Attachment | For lower side finishing with polymeric films: Propane-gas light flame. |
Top layer | |
Type | StressPly Signature, 5.5 mm x 5 x 1 m. Guidance for specification option:
|
Attachment | Propane-gas light flame. |
Colour | Charcoal. |
Dimensions | 5000 x 1000 mm. Guidance for specification option: Length x width. |
Finish | Mineral slate. |
Sustainability data
Material | Bitumen |
Product certifications
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Product certifications
Literature
Literature type
StressPly Signature Modified Bitumen Waterproofing Membrane - Garland
Garland - High Performance Waterproofing Solutions for Modified Bitumen, Cold Applied Liquid Coatings, Maintenance Products and Metal Cladding & Standing Seam
Garland UK - Green Shield Extensive Green Roofing Systems
Garland UK - Solarise Photovoltaic PV solar energy systems
Case studies
Alderley Park, Science and Innovation hub
