Stratobel
Verified by manufacturer 6 months ago
Protection from injuries
Protection from injuries
Laminated flat glass solutions providing protection from injuries and falls.
Application
Suitable for locations where upholding safety is a primary focus, including:
- Balustrades;

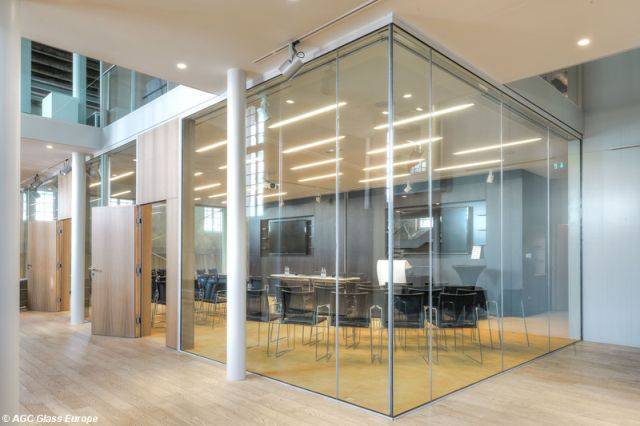

- Doors and partitions;
- Facades and curtain walls;
- Floors, stairs and roofs;
- Retail and museum display cases;
- Shopfronts;
- Windows.
Description
Laminated flat glass solutions providing protection from injuries and falls.
Features and benefits:
- Looks identical to normal glass, with the safety benefits of lamination.
- Transparent protection is provided by interlayers made of polyvinyl butyral (PVB) that are sandwiched between sheets of glass.
- If the glass is broken, most of the fragments adhere to the interlayer (in other words, the glazing stays in place) keeping people safe from injuries or falls and preventing intrusion.
- The safety level is determined by the thickness of the glass and the configuration (number of PVB interlayers).
- Certified tests (available on request) validate the performance of each product composition in terms of ageing (EN 12543) or resistance to soft impact (EN 12600).
- By incorporating special PVB interlayers, special tinted float glass and/ or coatings, additional functionality can be added to the existing safety functionality.
- Multifunctional: Ability to combine aesthetics, safety and other functions, such as solar control and thermal insulation in a single product.
- Sustainable: Cradle to Cradle Certified™ Silver.
- Unlimited possibilities in terms of thickness and configuration (how many sheets of glass, thickness of each sheet, number of PVB layers).
- Ten-year warranty.
Part of the Stratobel range: for for specialist options including coloured glass, burglar resistance, bulletproof or anti-explosion solutions, consult the manufacturer.
General information
Color | Clear |
Material | Glass |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year |
Uniclass | |
CAWS | H10/10 Patent glazing H10/115 Patent glazing H11/110 Curtain walling H13/115 Structural glass assembly L10/10 Wood windows L10/15 Wood windows L10/20 Steel windows L10/210 Wood windows L10/25 Aluminium windows L10/30 PVC-U windows L10/31 PVC-U windows L10/310 Steel windows L10/33 Proprietary windows L10/330 Aluminium windows L10/350 PVC-U windows L10/390 Proprietary windows L10/400 Composite windows L10/58 Secondary glazing system L10/580 Secondary glazing system L40/210 Putty-fronted single glazing L40/230 Bead-fixed single glazing – non-setting compound L40/250 Bead-fixed single glazing – tape and sealant L40/260 Bead-fixed single glazing – extruded gasket L40/310 Bead-fixed single glazing – tape, sealant and trim L40/330 Bead-fixed single glazing – capping L40/350 Bead-fixed single glazing – curing compound and trim L40/370 Bead-fixed insulating glass units – insert gasket sections L40/371 Bead-fixed insulating glass units – cellular adhesive/ mastic tape L40/372 Bead-fixed insulating glass units – loadbearing tapes/ synthetic rubber and sealant capping L40/380 Bead-fixed insulating glass units – solid bedding, outside bead L40/381 Bead-fixed insulating glass units – solid bedding, inside bead L40/40 Putty-fronted single glazing L40/410 Single glazing into grooves – extruded rubber/ PVC sections L40/430 Single glazing into grooves – non-setting compound L40/450 Single glazing into grooves – sealant capping L40/470 Zipper gasket glazing L40/490 Single-sided gasket glazing L40/50 Bead-fixed single glazing L40/530 Internal tape glazing L40/55 Bead-fixed insulating glass units – drained and ventilated bead L40/57 Bead-fixed insulating glass units – solid bedding, outside bead L40/58 Bead-fixed insulating glass units – solid bedding, inside bead L40/90 Internal tape glazing |
Specification data - Laminated glass sheets
General requirements | Glass generally. |
Third party accreditation | Cradle to Cradle Certified™ Silver. |
Laminate glass type | Safety. |
Thickness | Manufacturer's standard.Guidance for specification option: Varies according to impact resistance/ security level specified. Consult manufacturer for details. |
Outer leaf | Clearlite.Clearvision. |
Inner leaf | As Outer leaf. |
Interlayer to glass leaves | PVB interlayers. |
Body colour | Clear. |
Pattern | Transparent. |
Coating | |
Type | Stratobel Clear.Stratobel Low-E.Stratobel Sun.Guidance for specification option: See 'Options' below and insert requirements. |
Performance requirements | |
Light | Manufacturer's standard. |
Solar control | Manufacturer's standard. |
Total shading coefficient | Manufacturer's standard. |
Fire performance | |
Integrity | Manufacturer's standard.Guidance for specification option: Consult manufacturer for details. |
Insulation | Manufacturer's standard.Guidance for specification option: Consult manufacturer for details. |
Radiation | Manufacturer's standard.Guidance for specification option: Consult manufacturer for details. |
Sound attenuation | Manufacturer's standard.Guidance for specification option: Consult manufacturer for details. |
Impact resistance | To BS EN 12600, 2B2–1B1.Guidance for specification option: Whenever there is a risk of falling through the glass, for example, floor-to-ceiling windows and balustrades, the glass, which includes two sheets of glass and at least two PVB interlayers, prevents falls as the glass stays together – even when accidentally broken. |
Protection level | Protection from injuries. Protection from falling. Anti-bandit, basic protection. Anti-bandit, medium protection. Anti-bandit, enhanced protection. |
Type | Stratobel Clear. Stratobel Color. Guidance for specification option: See 'Options' below and insert requirements. Stratobel Low-E. Stratobel Sun. Guidance for specification option: See 'Options' below and insert requirements. |
Additional requirements | Guidance for specification option: All conventional processing options available for laminated glass can be applied to Stratobel Colour. In case of use in an external application, thermal absorption of some colours must be checked with the manufacturer. Insert requirements, or delete this property. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | Europe |
Literature
Stratobel, laminated safety glass by AGC
