Straight And Formable Edge Trims
Verified by manufacturer 6 months ago
EFA060
EFA060

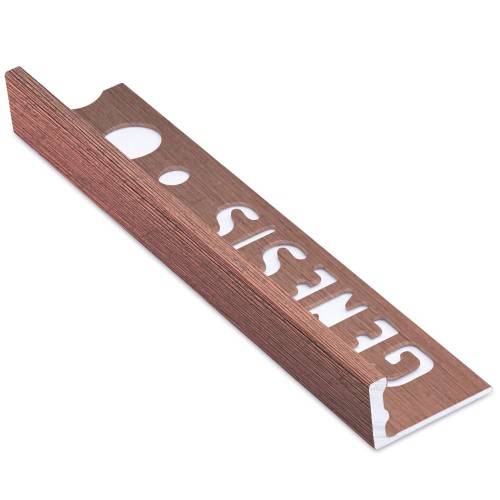

L shaped extruded aluminium profile.
Application
Designed to protect the edges of ceramic tiles or similar hard finishes fitted in wall or floor installations.
ESA Installation
- Select ESA/EFA according to tile thickness.
- Trowel tile adhesive over the area that forms the perimeter of the tiled covering.

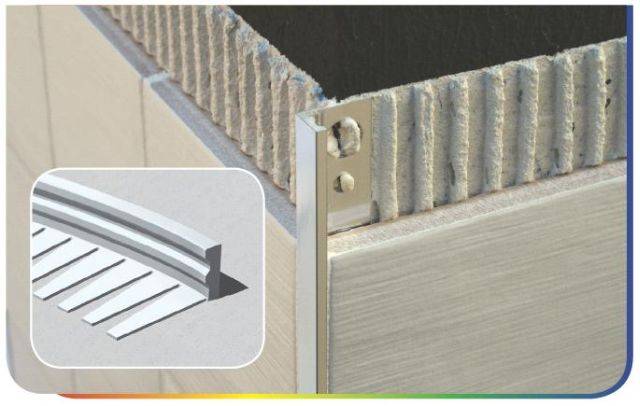

- Press the perforated anchoring leg of the ESA into the tile adhesive and align, mechanical fix if required.
- Trowel additional adhesive over the perforated anchoring leg to ensure full coverage.
- Solidly embed the tiles so that the tiled surface is flush with the top of the profile, the profile should not be higher than the tiled surface, but rather up to approximately 1 mm lower.
- Fill the joint completely with grout.
EFA Installation
- Select ESA/EFA according to tile thickness.
- Trowel tile adhesive over the area that forms the perimeter of the tiled covering.
- Press the perforated anchoring leg of the ESA into the tile adhesive and align, mechanical fix if required.
- Trowel additional adhesive over the perforated anchoring leg to ensure full coverage.
- Solidly embed the tiles so that the tiled surface is flush with the top of the profile, the profile should not be higher than the tiled surface, but rather up to approximately 1 mm lower.
- Fill the joint completely with grout.
Description
Straight edge trim:
An L shaped extruded aluminium profile designed to protect the edges of ceramic tiles or similar hard finishes fitted in wall or floor installations.
Formable trim:
An L shaped extruded aluminium profile designed to provide a solution to the problem of protecting edges of the floor finishes in curved areas.
In choosing aluminium as a finishing profile the suitability of its installation must be determined if chemical or mechanical stresses are anticipated.
General information
Color | White Black Silver Grey Yellow |
Finish | Matt Mill Brass Bright Brushed |
Material | Aluminium |
Shape | Other |
Length | 2500 mm |
Width | 3 mm |
Height | 2.25 mm 3.25 mm 4.25 mm 6 mm 8 mm |
Uniclass | |
CAWS | M40/10 Natural stone covering to M40/110 Tiling to M40/115 Natural stone covering to M40/12 Mosaic to M40/120 Mosaic to M40/5 Tiling to M41/110 Terrazzo tiling M41/120 In situ terrazzo M41/130 Precast terrazzo M41/140 Marble tiling |
Product range |
Specification data - Floor edging strips
Material | Aluminium. |
Colour where exposed to view | Mill aluminium 80.Guidance for specification option: Standard. |
Cross section size | 2500 x 3 x 6 mm.Guidance for specification option: (L x W x D) |
Profile | Formable trim. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Literature
ESA - Aluminium Straight Edge Datasheet
