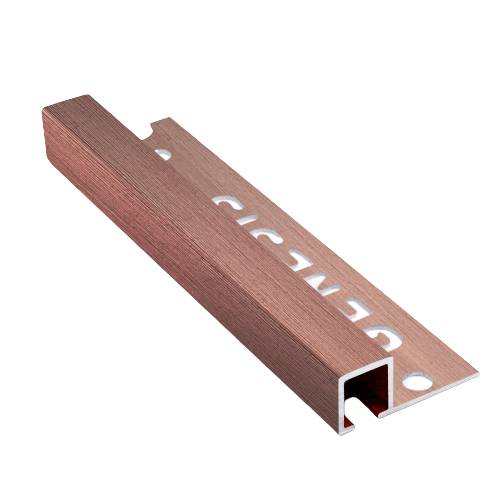

Straight And Flexible Square Trims

An alternative to the ordinary straight edge trim, TDP is versatile. It can be used as an edge trim on the vertical with wall tiles, on the horizontal with floor tiles or as a feature strip in wall or floor tiling applications.

The aluminium profile is extruded, which gives a square appearance. This makes it specifically useful when providing a finished edge for rectified, square cut porcelain, marble and stone. As the profile is formable it can be curved to solve the problem of finishing the edges of floor coverings on a radius.

A revolutionary and versatile profile. An alternative to an ordinary straight edge or L angle Aluminium Profile, the TDP offers a more luxurious finish to any edge. It can be used as an edge trim on the vertical with wall tiles or on the horizontal with Floor tiles or even as a feature strip in wall or floor applications. The extruded Aluminium profile gives a square appearance when installed and is also available with internal and external corner pieces (EDP) to obviate sharp edges when mitring is necessary.

 Installation

1. Select TDP according to tile thickness.

2. Trowel tile adhesive over the area that forms the perimeter of the tiled covering.

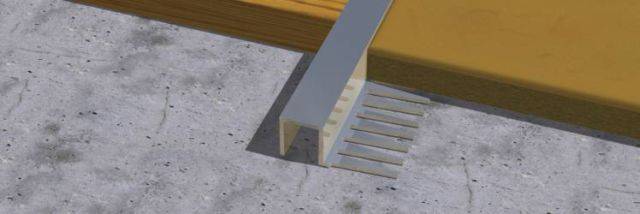

3. Press the perforated anchoring leg of the profile into the tile adhesive and align, mechanical fix if required

4. Trowel additional adhesive over the perforated anchoring leg to ensure full coverage.

5. Solidly embed the tiles so that the tiled surface is flush with the top of the profile, the profile should not be higher than the tiled surface.

6. Fill the joint completely with grout.

EDP Corner Pieces Produced from Machined Aluminium to ensure perfect finish to compliment the profile.
