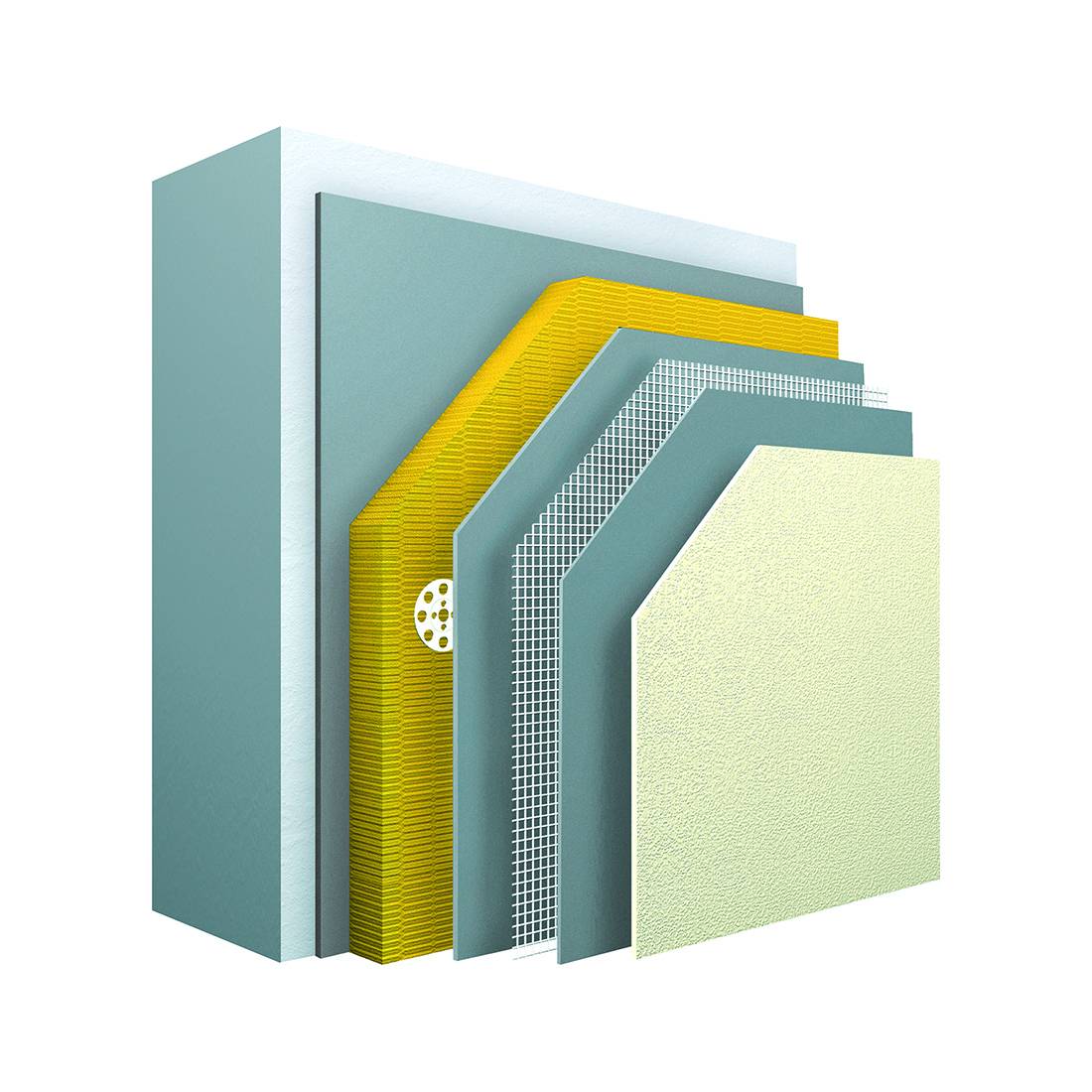

StoTherm Lamella external wall insulation system
Verified by manufacturer 19 days ago
BBA Agrément Certificate
Certificate type
Mineral fibre lamella insulated render system, adhesive and mechanically fixed.
Application
Suitable for fixing to either bare concrete or masonry, previously rendered or painted concrete or masonry, or onto a light steel framed or timber framed construction with suitable sheathing board. For new build or refurbishment projects. Can be installed without restriction in height or proximity to boundaries.
Description
The StoTherm Mineral Lamella System comprises render finishes onto highly durable non-combustible rock mineral fibre insulation boards. Insulation boards are adhesively fixed, with supplementary mechanical fixings if necessary, to the masonry wall. Through coloured render finishes are low maintenance, weather resistant and vapour permeable.
The system has an A2-s1, d0 reaction to fire classification in accordance with EN 13501-1 :2010 and can be installed without restriction in height or proximity to boundaries.
Quick Set (QS) versions of materials offer frost resistance and wash-off protection at temperatures from +1°C, reducing potential construction delays due to cold weather - consult manufacturer for recommendations.
General information
Color | Beige Black Blue Bronze Brown |
Material | Mineral fibre Guidance for specification option: lamella Fibre |
Warranty description | Five year Guidance for specification option: Applicable to installations by registered installers. In some circumstances the warranty period may be extended upon application prior to commencing installation; consult manufacturer for details. |
Uniclass | |
CAWS | M21/20 External wall insulation system . . . . . . M21/210 External wall insulation system |
Specification data - External wall insulation systems
Insulation | |
Material | Sto-Mineral Fibre Lamella (1000 x 200 x t) 0.040 W/m·K.Manufacturer guidanceInsulation:
|
Adhesive | StoLevell Uni high build / strength mineral adhesive.StoLevell Uni high build / strength mineral adhesive plus supplementary fixings (dowels).StoLevell Duo Plus mineral adhesive.StoLevell Duo Plus mineral adhesive plus supplementary fixings (dowels). |
Additional mechanical fixings | Sto-Hammer Dowel UEZ H1 8/60 for medium and high density masonry and concrete.Sto-Thermodowel 2G ETA 8/60 for low, medium and high density masonry and concrete, pre-cast concrete, previously rendered masonry.Sto-Fixing TKR plus Sto-Washer SBH for cement particle boards and other suitable sheathing boards. |
Beads and trims | Sto-Aluminium starter track profile - for use at base of system.Sto-Aluminium Flexicurve starter track - for use at base of system to radius.Sto-Starter Track Connectors - to aid alignment of starter track profiles.Sto-Clip-on Profile Perfekt - bead with integrated glass fibre mesh for use with aluminium starter track profile to provide additional crack resistance at base of system.Sto-Clip-on 3 mm Bead - bead on a roll with integrated glass fibre mesh for use with aluminium starter track profile to provide additional crack resistance at base of system.Sto-PVC Mesh Angle Bead - for reinforcement of 90º external angles.Sto-Armour Angle - for reinforcement of internal angles.Sto-Mesh Angle Flexibead Ideal - variable angle bead on a roll for reinforcement of external angles.Sto-Seal Joint Sealing Tape Lento - Pre-compressed joint sealing tape for use at interfaces with other elements of the building envelope.Sto-Seal Bead Supra - Head and reveal seal profile with integrated sealing tape and glass fibre mesh.Sto-Seal Bead Perfekt - Head and reveal seal profile with telescopic mechanism and integrated glass fibre mesh.Sto-Seal Bead Expert Pro - Head and reveal seal profile with integrated glass fibre mesh for side / edge installation.Sto-Stop Bead Standard - Head and reveal profile with integrated glass fibre mesh.Sto-Starter Track PH-P - insulation support profile for use at the base of the system in conjunction with Sto-Plinth PVC Profile PH, particularly suited to passive house construction.Sto-Plinth PVC Profile PH - insulation support / drip profile for use at the base of the system in conjunction with Sto-Starter Track PH-P, particularly suited to passive house construction. |
Movement joints | |
Form with | Sto-Expansion Joint Type E - for use at horizontal / vertical movement joints.Sto-Expansion Joint profile Type V - for use at vertical movement joints at internal angles. |
Sealant | Sto-Expansion Joint Tape Type 1 light grey - for joint width 10–18 mm.Sto-Expansion Joint Tape Type 1 anthracite - for joint width 10–18 mm.Sto-Expansion Joint Tape Type 2 light grey - for joint width 17–32 mm.Sto-Expansion Joint Tape Type 2 anthracite - for joint width 17–32 mm.Sto-Expansion Joint Tape Type 3 light grey - for joint width 28–40 mm.Sto-Expansion Joint Tape Type 3 anthracite - for joint width 28–40 mm.Sto-Expansion Joint Cover E (vertical joints only).Sto-Expansion Joint Cover V. |
Accessories | Sto-Expansion Joint - cross piece.Sto-Expansion Joint - T piece.Sto-Expansion Joint Profile - external corner.Sto-Expansion Joint Profile - internal corner. |
Render carrier or reinforcement | |
Material | StoLevell Uni mineral reinforcing coat.StoLevell Duo Plus reinforcing coat.Sto-Glass Fibre Reinforcing Mesh - standard mesh embedded in reinforcing coat.Sto-Armour Mesh - reinforcing mesh embedded in reinforcing coat prior to standard mesh for additional impact resistance.Manufacturer guidanceReinforcing mesh:
Consult manufacturer for details and recommendations. |
Render | |
Material | Stolit - cement free, acrylic resin based organic render finish.StoSilco - cement free silicone resin based organic render finish with hydrophobic properties.StoLotusan - cement free organic render finish with Lotus effect® technology with super-hydrophbic properties.StoSuperlit - cement free acrylic resin based organic render finish with variegated coloured natural stone aggregate in a clear binder.StoMiral - mineral finishing render. |
Decorative finish | Stolit K - Acrylic resin bound render with stippled texture.Stolit R - Acrylic resin bound render with rilled texture.Stolit MP - Acrylic resin bound render with rustic texture.StoSilco K - Silicone resin bound hydrophobic render with stippled texture.StoSilco R - Silicone resin bound hydrophobic render with rilled texture.StoSilco MP - Silicone resin bound hydrophobic render with rustic texture.StoLotusan K - Super-hydrophobic render finish with stippled texture and Lotus Effect.StoLotusan MP - Super-hydrophobic render finish with rustic texture and Lotus Effect.StoSuperlit K - Acrylic bound render finish with exposed natural stone aggregate in a clear binder.Stolit Milano - Acrylic resin bound render finish with fine grain used either alone or with Stolit K / Stolit Effect to achieve special render effects.Stolit Effect - Acrylic resin bound render finish used to achieve special render effects.StoMiral K - mineral render finish with stippled texture.StoMiral R - mineral render finish with rilled texture.StoMiral MP - mineral render finish with rustic texture.Manufacturer guidanceFinish coat:
|
Colour | Manufacturer guidanceRender finishes are available in a range of up to 800 colours from the StoColor System and a further 300 colours from the Sto Architectural colour range. |
System accessories | StoFix Mini ND fixing block 100 x 100 mm.Guidance for specification option: 100 x 100 mm high density EPS foam block set into insulation prior to application of render coatings, suitable to accept direct fixing of lightweight items or for use as an anti-compression block where fixing heavy items back to the substrate. StoFix Mini ND fixing block 150 x 100 mm.Guidance for specification option: 150 x 100 mm high density EPS foam block set into insulation prior to application of render coatings, suitable to accept direct fixing of lightweight items or for use as an anti-compression block where fixing heavy items back to the substrate. StoFix Maxi HD fixing block 198 x 198 mm.Guidance for specification option: 198 x 198 mm rigid polyurethane foam block set into insulation prior to application of render coatings, suitable for use as an anti-compression block where fixing heavy items back to the substrate. StoFix Rondelle.Guidance for specification option: polypropylene disc recessed into insulation prior to application or render cotings, suitable for fixing lightweight items. StoFix Iso-Dart.Guidance for specification option: mounting anchor for post-installation fixing of medium weight items to masonry substrates. |
Intermediate coat | Sto-Primer - filled, pigmented organic undercoat. StoPrep Miral - filled pigmented silicate undercoat for use prior to application of mineral render finishes. |
Colour/ Aggregate | Guidance for specification option: See Options and insert requirement. Refer to StoColor system and Sto Architectural colour range for colours. Consult manufacturer for details and samples. |
Third party certification: | BBA Agrément Certificate 95/3132, Product sheet 5. |
Reaction to fire classification | A2-s1, d0 to BS EN 13501-1. |
