StoTherm Classic K, adhesively and mechanically fixed external wall insulation system - External Wall Insulation System (ETICs)
Verified by manufacturer 4 months ago
BBA Agrément Certificate
Certificate type
An external wall insulation system with EPS board and cement-free components, providing market-leading impact resistance. StoTherm Classic K is adhesively fixed to the wall.
Application
Suitable for fixing to either bare concrete or masonry, previously rendered or painted concrete or masonry, or onto a light steel framed or timber framed construction with suitable sheathing board. For new build or refurbishment projects. Can be used on buildings with a storey level up to 11 m above ground level.
Description

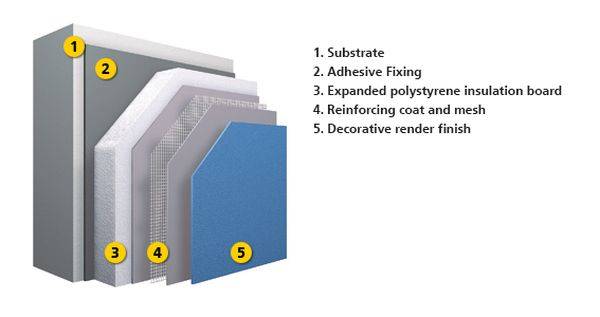

The StoTherm Classic K System comprises an impact resistant, flexible render finish applied over fire retardant treated expanded polystyrene insulation boards. Insulation boards are adhesively fixed to the masonry or suitably sheathed light steel frame substrate, with supplementary mechanical fixings used where the load bearing capacity of the substrate is either unknown or cannot be verified.
Through coloured render finishes are low maintenance, weather resistant and vapour permeable. The system may be used on buildings with a storey level up to 11 m above ground level.
For insulation and finishes to below DPC zones consult manufacturer.
Quick Set (QS) versions of materials offer frost resistance and wash-off protection at temperatures from +1°C and 95% relative humidity, reducing potential construction delays due to cold weather - consult manufacturer for recommendations.
Supplementary mechanical fixings may be required depending on substrate type or wind load conditions. Consult manufacturer for further information.
Impact loading (ETAG 004):
- Single layer - Category II.
- Single layer Armour mesh + single layer standard mesh - Category I.
- Consult manufacturer for details and recommendations.
General information
Color | Manufacturer guidanceA large range of colour choices available |
Finish | Manufacturer guidanceA range of finish options available |
Material | Mineral fibre Fibre Expanded polystyrene (EPS) Polyurethane Resin |
Shape | Manufacturer guidanceTo client requirements |
Length | 1000 mm |
Width | 500 mm |
Height | Bespoke |
Warranty description | Five year Guidance for specification option: Applicable to installations by registered installers. In some circumstances the warranty period may be extended upon application prior to commencing installation; consult manufacturer for details. |
Uniclass | |
CAWS | M21/20 External wall insulation system . . . . . . M21/210 External wall insulation system |
Specification data - External wall insulation systems
Insulation | |
Material | Sto-EPS board (white) K70/FRA, Square edged for use with mineral adhesive (1000 x 500 x t) 0.037 W/mK.Sto-EPS board (white) K70/FRA, Tongue and groove edged for use with Sto Turbofix adhesive (1000 x 500 x t) 0.037 W/mK.Sto-EPS board (white) K90/FRA, Square edged for use with mineral adhesive (1000 x 500 x t) 0.036 W/mK.Sto-EPS board (white) K90/FRA, Tongue and groove edged for use with Sto Turbofix adhesive (1000 x 500 x t) 0.036 W/mK.Sto-EPS grey Lambdatherm board K70/FRA, Square edged for use with mineral adhesive (1000 x 500 x t) 0.032 W/mK.Sto-EPS grey Lambdatherm board K70/FRA, Tongue and groove edged for use with Sto Turbofix adhesive (1000 x 500 x t) 0.032 W/mK.Sto-EPS grey Lambdatherm board K90/FRA, Square edged for use with mineral adhesive (1000 x 500 x t) 0.030 W/mK.Sto-EPS grey Lambdatherm board K90/FRA, Tongue and groove edged for use with Sto Turbofix adhesive (1000 x 500 x t) 0.030 W/mK.Manufacturer guidanceInsulation: - Thickness:
|
Adhesive | StoLevell Uni high build / strength mineral adhesive.StoLevell Uni high build / strength mineral adhesive plus supplementary fixings (dowels).StoLevell Duo Plus mineral adhesive.StoLevell Duo Plus mineral adhesive plus supplementary fixings (dowels).Sto-Turbofix single component PU foam adhesive, maximum 10 mm thick.Sto-Turbofix single component PU foam adhesive up to 20 mm thick plus supplementary fixings (dowels). |
Additional mechanical fixings | Sto-Hammer Dowel UEZ H1 8/60 for medium and high density masonry and concrete.Sto-Fixing TKR plus Sto-Washer SBH for cement particle boards and other suitable sheathing boards.Sto-Thermodowel 2G ETA 8/60 for low, medium and high density masonry and concrete, pre-cast concrete, previously rendered masonry. |
Fire barriers and stops | |
Material | Mineral fibre lamella. |
Fixings | StoLevell Uni adhesive. Stainless steel mechanical fixings. |
Beads and trims | Sto-Aluminium starter track profile - for use at base of system.Sto-Aluminium Flexicurve starter track - for use at base of system to radius.Sto-Starter Track Connectors - to aid alignment of starter track profiles.Sto-Clip-on Profile Perfekt - bead with integrated glass fibre mesh for use with aluminium starter track profile to provide additional crack resistance at base of system.Sto-Clip-on 3 mm Bead - bead on a roll with integrated glass fibre mesh for use with aluminium starter track profile to provide additional crack resistance at base of system.Sto-PVC Mesh Angle Bead - for reinforcement of 90º external angles.Sto-Armour Angle - for reinforcement of internal angles.Sto-Mesh Angle Flexibead Ideal - variable angle bead on a roll for reinforcement of external angles.Sto-Seal Joint Sealing Tape Lento - Pre-compressed joint sealing tape for use at interfaces with other elements of the building envelope.Sto-Seal Bead Supra - Head and reveal seal profile with integrated sealing tape and glass fibre mesh.Sto-Seal Bead Perfekt - Head and reveal seal profile with telescopic mechanism and integrated glass fibre mesh.Sto-Seal Bead Expert Pro - Head and reveal seal profile with integrated glass fibre mesh for side / edge installation.Sto-Stop Bead Standard - Head and reveal profile with integrated glass fibre mesh.Sto-Starter Track PH-P - insulation support profile for use at the base of the system in conjunction with Sto-Plinth PVC Profile PH, particularly suited to passive house construction.Sto-Plinth PVC Profile PH - insulation support / drip profile for use at the base of the system in conjunction with Sto-Starter Track PH-P, particularly suited to passive house construction. |
Movement joints | |
Form with | Sto-Expansion Joint Type E - for use at horizontal / vertical movement joints.Sto-Expansion Joint profile Type V - for use at vertical movement joints at internal angles. |
Sealant | Sto-Expansion Joint Tape Type 1 light grey - for joint width 10–18 mm.Sto-Expansion Joint Tape Type 1 anthracite - for joint width 10–18 mm.Sto-Expansion Joint Tape Type 2 light grey - for joint width 17–32 mm.Sto-Expansion Joint Tape Type 2 anthracite - for joint width 17–32 mm.Sto-Expansion Joint Tape Type 3 light grey - for joint width 28–40 mm.Sto-Expansion Joint Tape Type 3 anthracite - for joint width 28–40 mm.Sto-Expansion Joint Cover E (vertical joints only).Sto-Expansion Joint Cover V. |
Accessories | Sto-Expansion Joint - cross piece.Sto-Expansion Joint - T piece.Sto-Expansion Joint Profile - external corner.Sto-Expansion Joint Profile - internal corner. |
Render carrier or reinforcement | |
Material | Sto-Glass Fibre Reinforcing Mesh - standard mesh embedded in reinforcing coat.Sto-Armour Mesh - reinforcing mesh embedded in reinforcing coat prior to standard mesh for additional impact resistance.StoArmat Classic plus G cement free reinforcing plaster.Manufacturer guidanceReinforcing mesh: Sto-Armour mesh - additional reinforcing mesh used in conjunction with standard mesh to provide increased impact resistance. Mesh to be applied into base coat render ensuring the reinforcing mesh is fully embedded. |
Mesh size | Sto-Glass Fibre Reinforcing mesh: 6 x 6 mm.Sto-Armour Mesh: 7.5 x 7.5 mm. |
Render | |
Material | Stolit - cement free, acrylic resin based organic render finish.StoSilco - cement free silicone resin based organic render finish with hydrophobic properties.StoLotusan - cement free organic render finish with Lotus effect® technology with super-hydrophbic properties.StoSuperlit - cement free acrylic resin based organic render finish with variegated coloured natural stone aggregate in a clear binder.Manufacturer guidanceRender finish coat:
|
Decorative finish | Stolit K - Acrylic resin bound render with stippled texture.Stolit R - Acrylic resin bound render with rilled texture.Stolit MP - Acrylic resin bound render with rustic texture.StoSilco K - Silicone resin bound hydrophobic render with stippled texture.StoSilco R - Silicone resin bound hydrophobic render with rilled texture.StoSilco MP - Silicone resin bound hydrophobic render with rustic texture.StoLotusan K - Super-hydrophobic render finish with stippled texture and Lotus Effect.StoLotusan MP - Super-hydrophobic render finish with rustic texture and Lotus Effect.StoSuperlit K - Acrylic bound render finish with exposed natural stone aggregate in a clear binder.Stolit Milano - Acrylic resin bound render finish with fine grain used either alone or with Stolit K / Stolit Effect to achieve special render effects.Stolit Effect - Acrylic resin bound render finish used to achieve special render effects.Manufacturer guidanceX-black near-infrared reflecting formulations available with some finishes where dark or intense colours are required. Consult manufacturer for information and details.
may be used as an alternative to or in conjunction with render finishes. Consult manufacturer for information and details. |
Colour | Manufacturer guidanceRender finishes are available in a range of up to 800 colours from the StoColor System and a further 300 colours from the Sto Architectural colour range. |
System accessories | StoFix Mini ND fixing block 100 x 100 mm.Guidance for specification option: 100 x 100 mm high density EPS foam block set into insulation prior to application of render coatings, suitable to accept direct fixing of lightweight items or for use as an anti-compression block where fixing heavy items back to the substrate. StoFix Mini ND fixing block 150 x 100 mm.Guidance for specification option: 150 x 100 mm high density EPS foam block set into insulation prior to application of render coatings, suitable to accept direct fixing of lightweight items or for use as an anti-compression block where fixing heavy items back to the substrate. StoFix Maxi HD fixing block 198 x 198 mm.Guidance for specification option: 198 x 198 mm rigid polyurethane foam block set into insulation prior to application of render coatings, suitable for use as an anti-compression block where fixing heavy items back to the substrate. StoFix Rondelle.Guidance for specification option: polypropylene disc recessed into insulation prior to application or render cotings, suitable for fixing lightweight items. StoFix Spiral ID60.Guidance for specification option: spiral fixing for post-installation fixing of lightweight items. StoFix Iso-Dart.Guidance for specification option: mounting anchor for post-installation fixing of medium weight items to masonry substrates. |

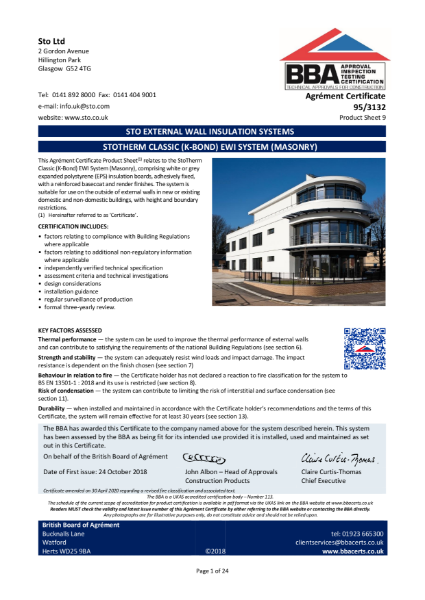

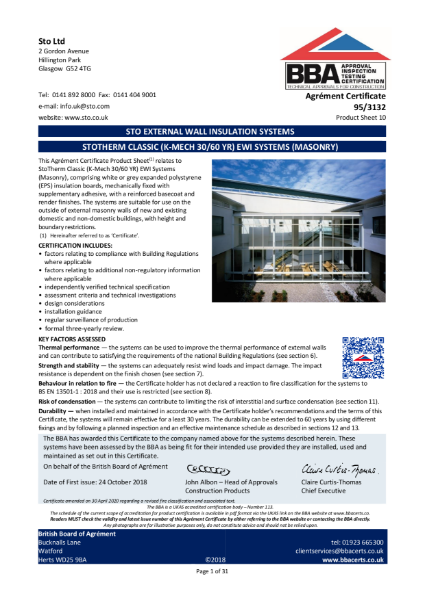

Third-party certification | BBA Agrément certificate 95/3132, Product sheet 9 (adhesive fixing onto masonry);BBA Agrément Certificate 95/3132, Product sheet 10 (adhesive & mechanical fixing onto masonry). |
Colour/ Aggregate | Guidance for specification option: Refer to StoColor system and Sto Architectural colour range for colours. Consult manufacturer for details and samples. Manufacturer guidanceAggregate:
|
Sustainability data
Country of material origin | Manufacturer guidanceVarious, consult manufacturer for details. |
Country of product manufacture | Manufacturer guidanceUnited Kingdom and Germany, consult manufacturer for details. |
Material | Mineral fibre Fibre Expanded polystyrene (EPS) Polyurethane Resin |
Recyclability | Fully recyclable (insulation) |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 5 |
 IFC | - | 5 |
Third party certifications
Literature

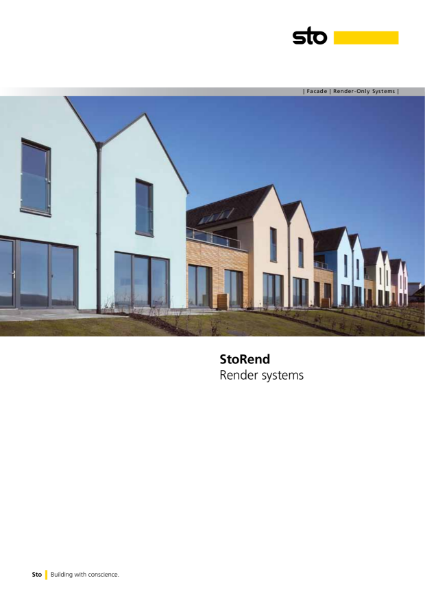

StoRend Render Systems Guide

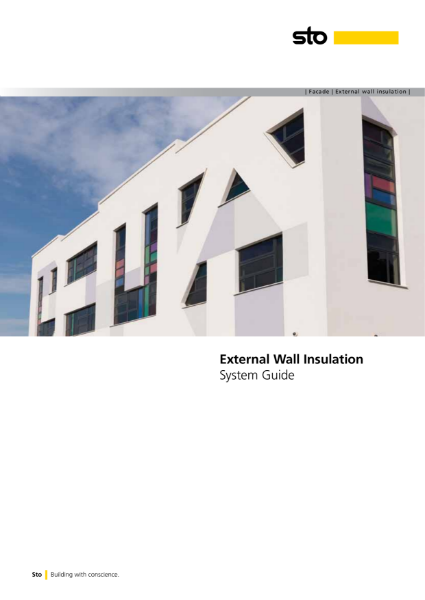

StoTherm External wall insulation systems guide
Case studies

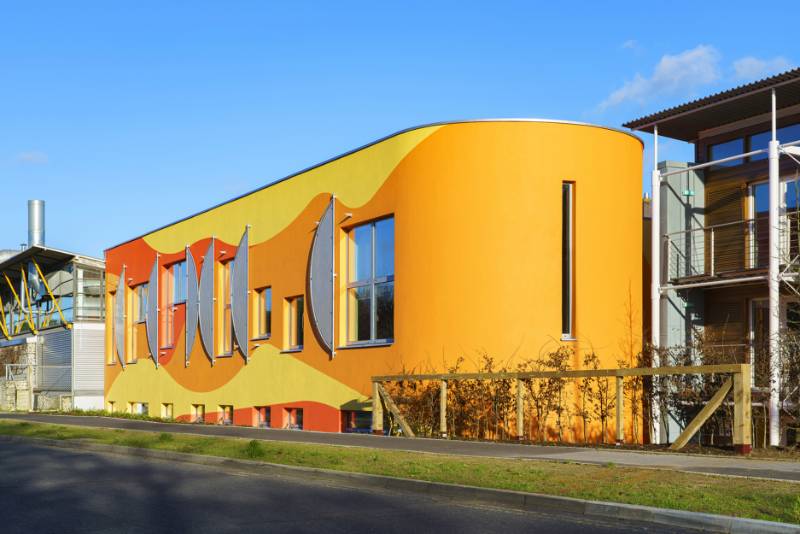

Sto's External Wall Insulation Systems and high-performance Facade Paint helps bring new Innovation Studio to Life
