Description

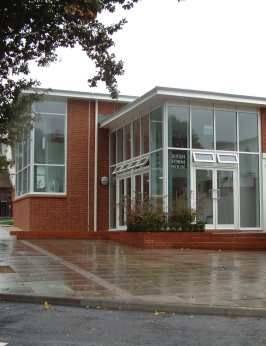

A ground-floor, modular, glazed, aluminium framing system which can incorporate single or double doors and automated sliding doors, designed for entrance screens and shopfronts. Can also be used in conjunction with Sapa Building systems curtain walling, windows and doors.

Non-thermally broken.

General information
Specification data
Product Reference

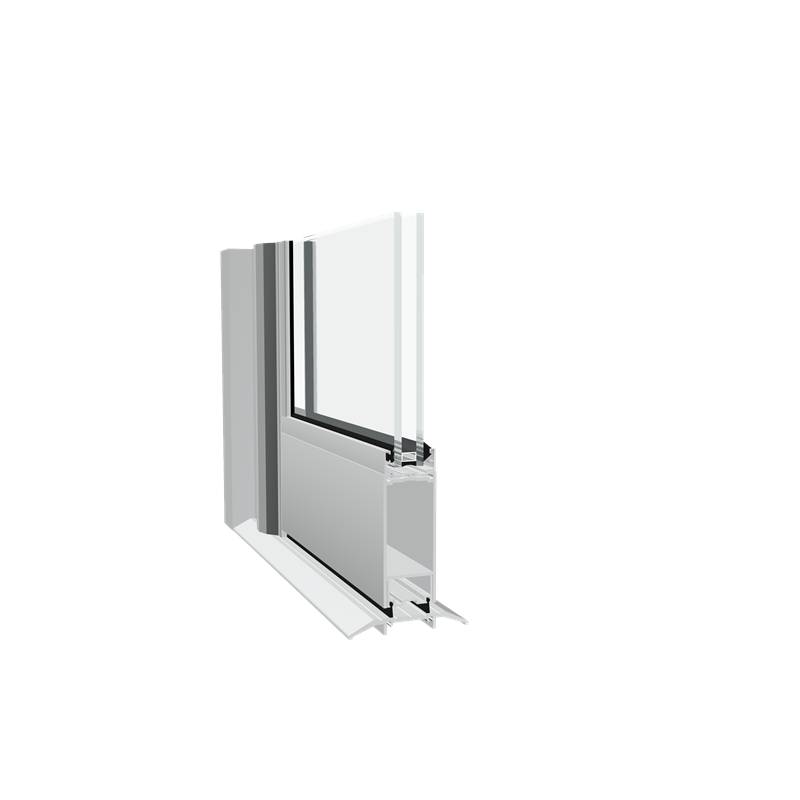

Stormframe 202 door and framing system

Screen height

As drawing ___

As schedule ___

Materials -
Frame

Extruded aluminium

Finish

Anodized

To BS 3987.

Powder coated gloss, colour

To EN 12206-1: 2004, insert colour.

Powder coated matt, colour

To EN 12206-1: 2004, insert colour.

Powder coated satin, colour

To EN 12206-1: 2004, insert colour.

Powder coated metallic, colour

To EN 12206-1: 2004, insert colour.

Panels -
Glazing details

Insert requirements.

Hardware

Anti finger-trap pivot hinge stiles

Automatic door operation

Closer with hold open feature

Concealed rod panic bar

DDA compliant closer with adjustable opening and closing forces

Internal thumbturn cylinder

Rebated frame with face applied closer

Shoot bolt locking

Accessories/ Other requirements

None

Concealed door closer

Laminated steel hook lock

Pivot hinges

Product Options

Glazing:

Accommodates glazing 6–24 mm thick. Insert details of glass and spacer dimensions, emissivity, safety and solar control. Consult Sapa Building Systems for glazing options.
