Application

Designed to be used with Stormdry Masonry Protection Cream to boost the natural thermal properties of the wall, the system can significantly increase the energy performance of a property whilst remaining breathable and protecting against moisture ingress. This combined system prevents the effects of interstitial condensation.

Stormdry EP-Board Primer is required across the entire boarded wall surface. Once this is dry, the wall will be able to accept standard interior finishes such as paints, plasters and wallpapers.

Description

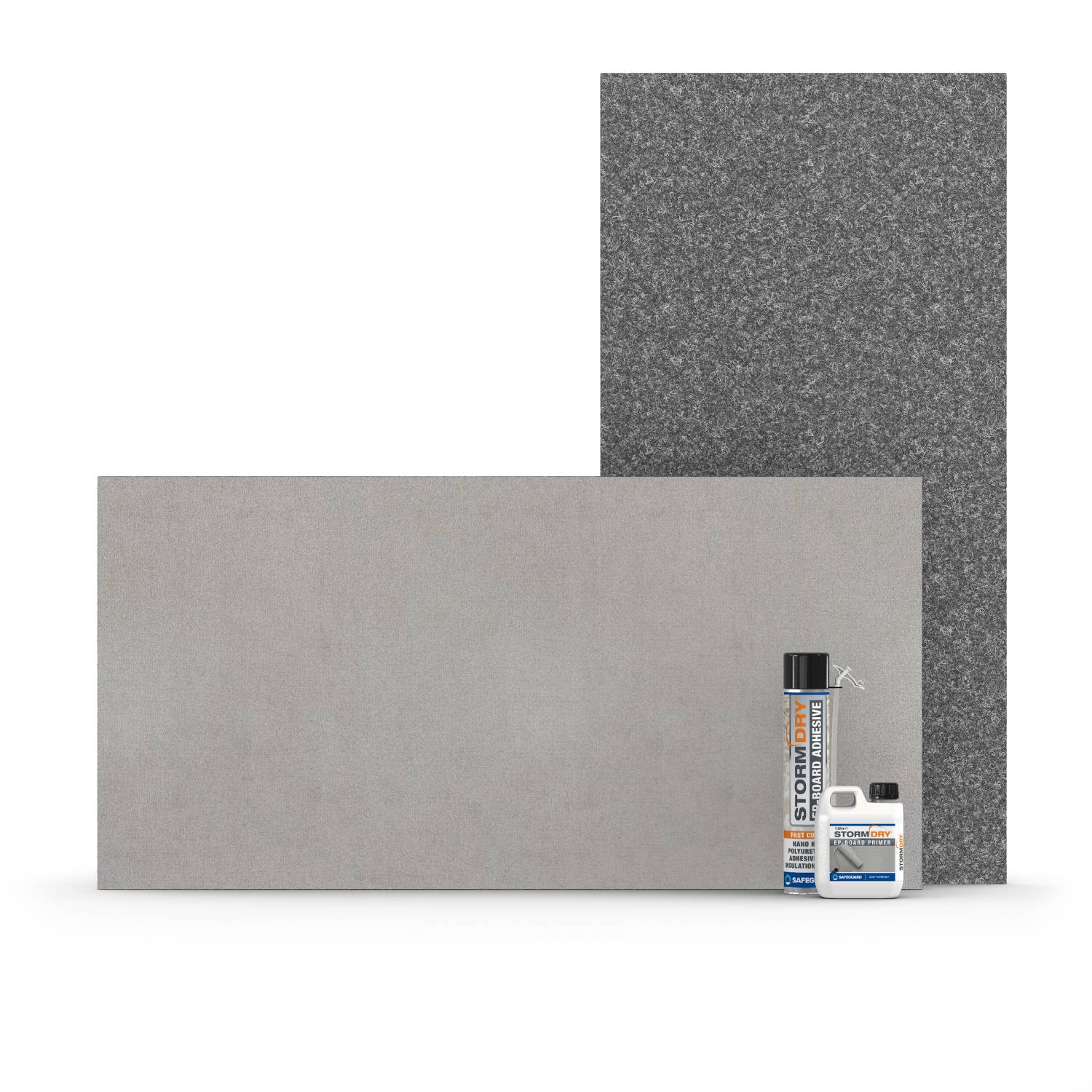

Stormdry EP-Board is an internal insulation plasterboard system for solid walls. Developed using highly insulating slimline aerogel technology, the system enables large energy savings without compromising space.

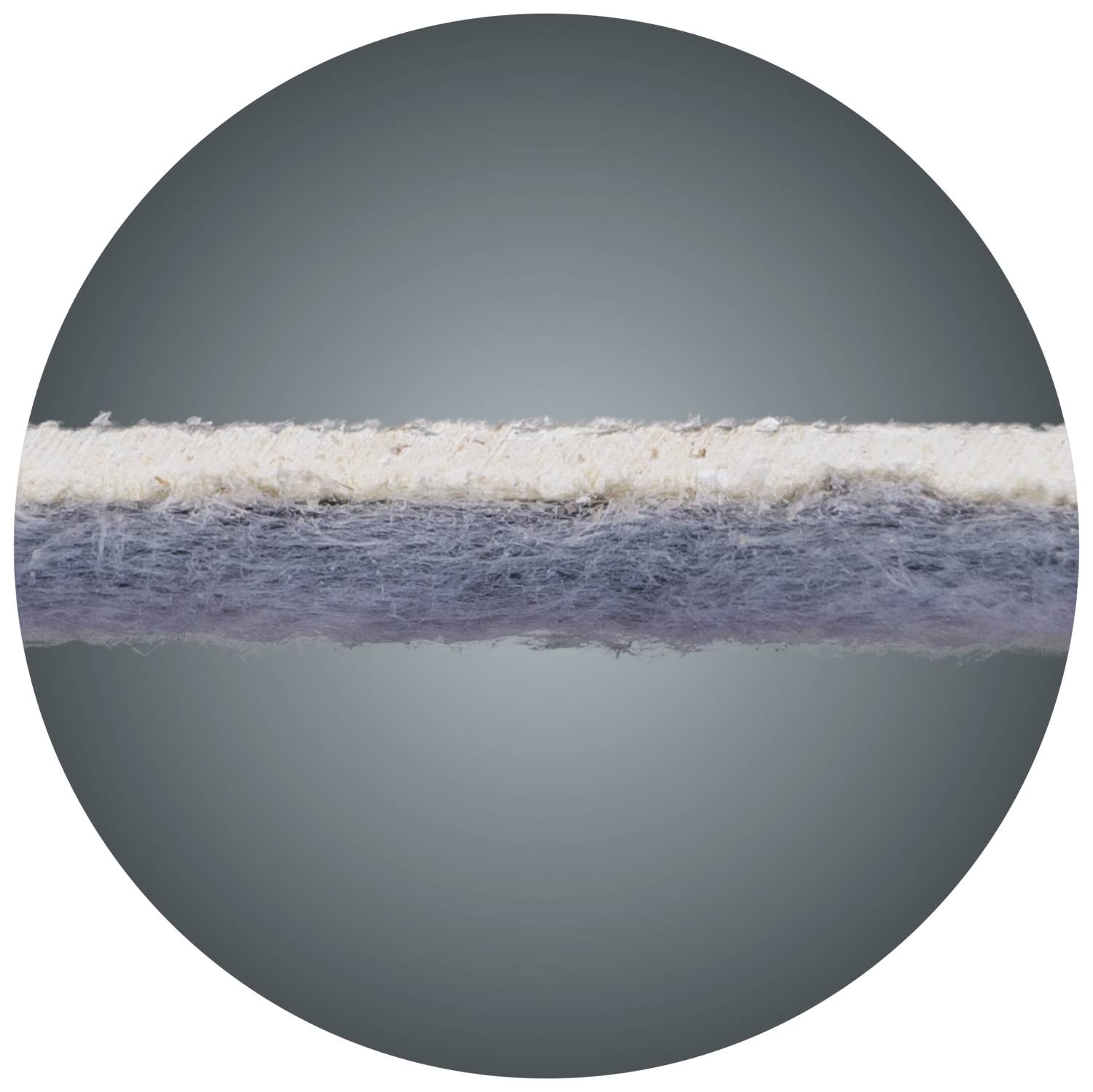

The board consists of 10 mm of aerogel insulation combined with 3 mm of magnesium oxide board. The boards can be adhered directly to internal walls to increase energy performance.

Features and benefits:

  • Easy to install.
  • Energy saving.
  • Space-saving – thin insulation for hard to treat walls.
  • Breathable.
  • Standards: EN 12667:2001 and BS EN 13501-1:2007+A1:2009.

Applications:

Designed to be used with Stormdry Masonry Protection Cream to boost the natural thermal properties of the wall, the system can significantly increase the energy performance of a property whilst remaining breathable and protecting against moisture ingress. This combined system prevents the effects of interstitial condensation.

Stormdry EP-Board Primer is required across the entire boarded wall surface. Once this is dry, the wall will be able to accept standard interior finishes such as paints, plasters and wallpapers.

General information
Specification data - Magnesium oxide boards
Product Reference

Stormdry EP-Board

Standard product features

Technical characteristics:

  • Appearance: Aerogel and MgO board.
  • Thickness: 13 mm.
  • Weight: 2.775 kg.
  • Thermal conductivity: Aerogel: 0.015 W/mK. MgO Board: 0.19 W/mK.
  • Fire resistance: Aerogel: Class Cs1,d0. MgO Board: Class A1.
  • Vapour resistance: Aerogel: Sd 0.05 m (mu = 5). MgO Board: Sd 0.062 m (mu = 20.7).
  • U-value (225 mm solid brick): 2.1 W/m²K. Using 0.8 EP board.
  • Heat loss: 61%.
