Stormdry EP-Board - Energy Performance Board, Provides High Insulation Performance with Minimal Loss of Space

Stormdry EP-Board - Energy Performance Board, Provides High Insulation Performance with Minimal Loss of Space

Safeguard Europe Ltd

Insulated plasterboard developed using highly insulating slimline aerogel technology. The system enables large energy savings without compromising space.

Jump to:
+44 (0)1403 210204 www.safeguardeurope.com

Application

Lay the Stormdry EP-Board on the ground with the dark-grey aerogel blanket facing up. Apply Stormdry EP-Board Adhesive in a continuous line inset approximately 30mm from the edge of the board until the entire perimeter has been covered. Infill the remainder of the board with the adhesive in a single wide zig-zag pattern. Pick up the Stormdry EP-Board, making sure to grip it at the edges, and offer the adhesive covered side up to the wall. Apply gentle pressure and hold the board in place until the adhesive provides enough adhesion to support itseld, making sure that the board is level with the wall. Repeat the process with more boards, tiling them across the wall until the wall is completely covered. They can either be staggered or applied inline.

In order the completely cover a wall, it will most likely be necessary to cut some Stormdry EP-Boards down to size. Cutting should be carried out outside or in a well-ventilated area with an appropriate dust sheet. At corners, it is important that the aerogel insulation is allowed to overlap.

Description

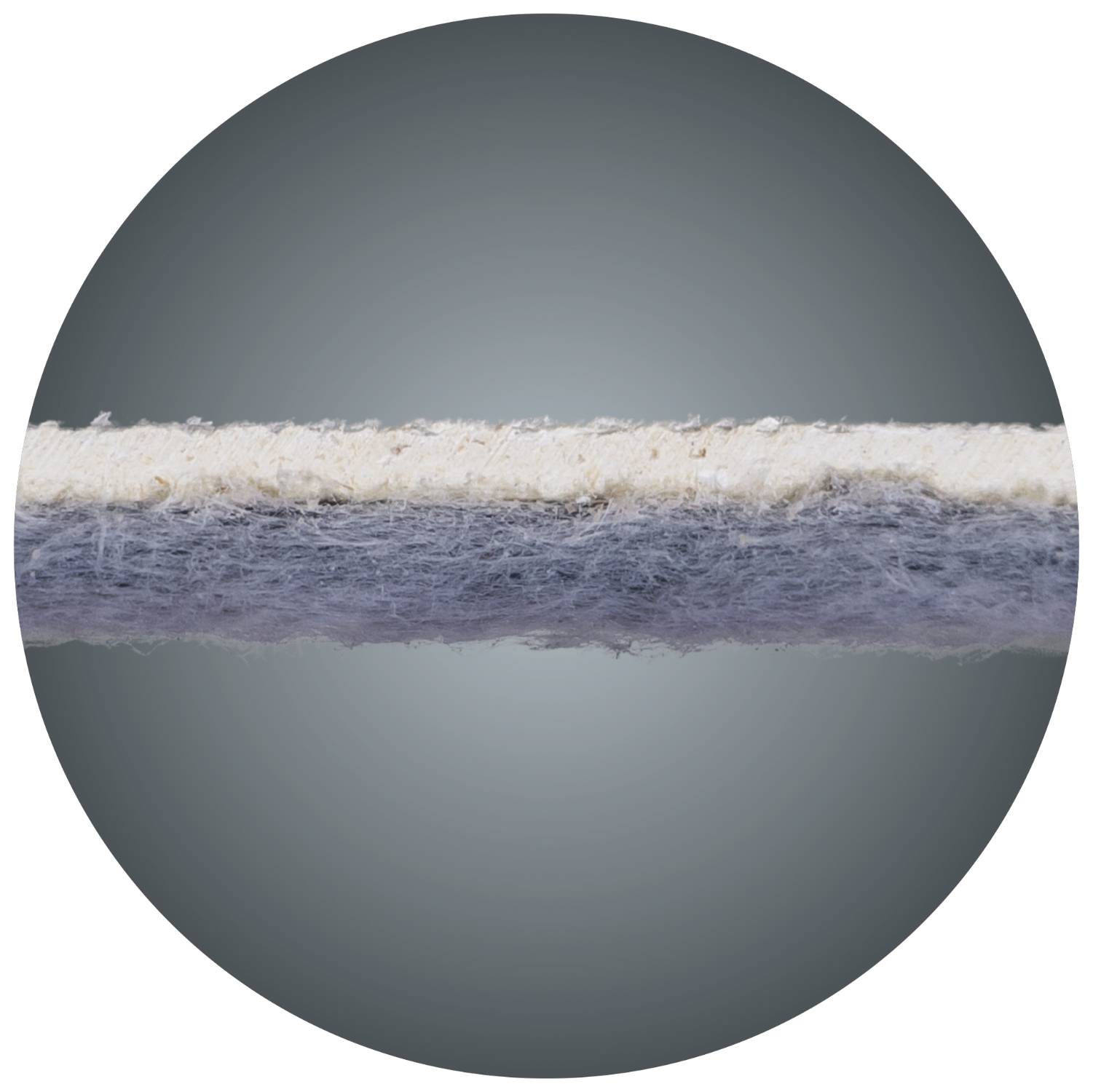

An internal insulation plasterboard system for solid walls. Developed using highly insulating slimline aerogel technology, the system enables large energy savings without compromising space. The board consists of 10 mm aerogel insulation, combined with 3 mm magnesium oxide board. The boards can be adhered directly to internal walls to increase energy performance.


Features and benefits:

  • Easy to install.
  • Energy saving.
  • Space saving - thin insulation for hard to treat walls.
  • Breathable.


Surface application:

  • Designed to be used with Stormdry Masonry Protection Cream to boost the natural thermal properties of the wall, the system can significantly increase the energy performance of a property whilst remaining breathable and protecting against moisture ingress.
  • This combined system prevents the effects of interstitial condensation.
  • Stormdry EP-Board Primer is required across the entire boarded wall surface.
  • Once the primer has dried, the wall will be able to accept standard interior finishes such as paints, plasters and wallpapers.

General information

Color

White

Grey

Material

Aerogel

Magnesium

Shape

Rectangle

Uniclass

Pr_25_71_52_50 Magnesium oxide boardsPrimary

CAWS

K11/60 Board

K11/890 Board

Specification data - Magnesium oxide boards Enhanced data

Standard

To EN 12667: 2001 and BS EN 13501-1:2007 + A1: 2009.

Fire rating

Aerogel: Class Cs1,d0, MgO Board: Class A1.

Weather resistance

C.

Sheet size

-

Nominal thickness

13 mm.

10 mm aerogel insulation, combined with 3 mm magnesium oxide board.

Weight

2.775 kg.

ThermalConductivity

Aerogel: 0.015 W/mK, MgO Board: 0.19 W/mK.

Water vapour resistance

Aerogel: Sd 0.05 m (mu = 5), MgO Board: Sd 0.062 m (mu = 20.7).

U-value

225 mm solid brick: 2.1 W/m²K, using 0.8 EP board.

TotalHeatLoss

61%.

Appearance

Aerogel and MgO board.

Board size

1.2 x 0.6 m.
